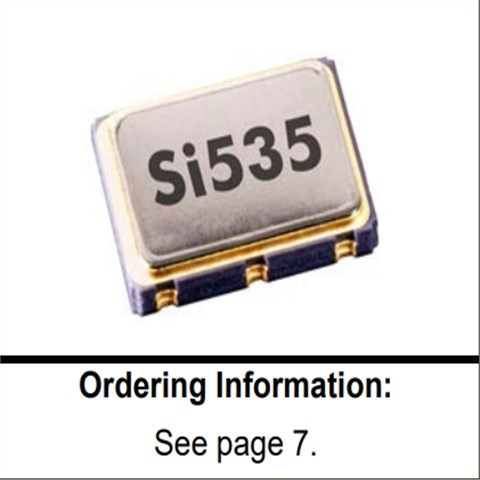

536AC150M000DG,Skyworks低功耗振荡器,6G光通讯晶振,Si536差分晶振，尺寸7.0×5.0mm，频率150MHZ，电压3.3V，输出逻辑LVPECL，OSC差分晶振，LVPECL输出晶振，LVPECL差分晶振，7050mm差分晶体振荡器，SMD有源差分晶振，六脚差分晶振，6G电信差分晶振，测试测量差分晶振，仪器设备晶振，路由器差分晶振，高质量差分晶振，高性能差分晶振，低抖动差分晶振，低相位差分晶振，低损耗差分晶振，低功耗差分晶振，低电压差分晶振，具有高质量低电压的特点.

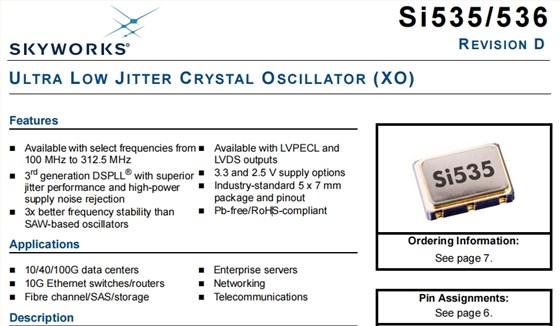

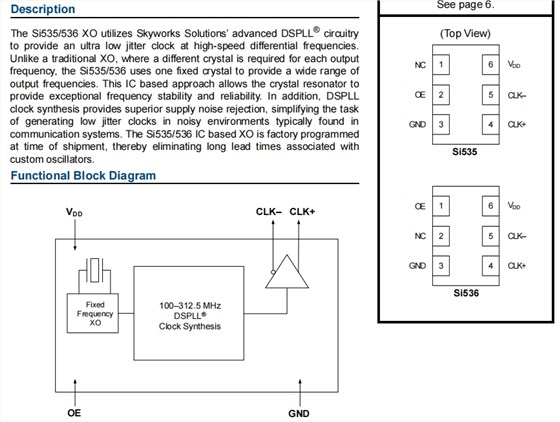

Si535/536 XO采用Skyworks Solutions的先进DSPLL®电路以提供高速差分频率的超低抖动时钟。与传统XO不同，在传统XO有源晶振中，每个输出都需要不同的晶体频率，Si535/536使用一个固定晶体来提供宽范围的输出频率。这种基于IC的方法允许晶体谐振器提供卓越的频率稳定性和可靠性。536AC150M000DG,Skyworks低功耗振荡器,6G光通讯晶振,Si536差分晶振.
536AC150M000DG,Skyworks低功耗振荡器,6G光通讯晶振,Si536差分晶振参数表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Supply Voltage1 | VDD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL LVDS |
— — |
111 90 |
121 98 |
mA | ||||||||||||||||
| Tristate mode | — | 60 | 75 | mA | ||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x VDD | — | — | V | |||||||||||||||||
| VIL | — | — | 0.5 | V | ||||||||||||||||||
| Operating Temperature Range | TA | –40 | — | 85 | °C | |||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Nominal Frequency1 | fO | LVPECL/LVDS | 100 | — | 312.5 | MHz | ||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||
| Temperature Stability1,2 |
–7 –20 |
— — |
+7 +20 |
ppm | ||||||||||||||||||
| Aging | fa | Frequency drift over first year | ±3 | ppm | ||||||||||||||||||
|
Frequency drift over 20 year life |
— | — | ±10 | ppm | ||||||||||||||||||
| Total Stability2 | Temp stability = ±20 ppm | — | — | ±31.5 | ppm | |||||||||||||||||
| Temp stability = ±7 ppm | — | — | 20 | |||||||||||||||||||
| Powerup Time3 | tOSC | TA= –40°C — +85°C | 10 | ms | ||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| LVPECL Output Option1 | VO | Mid-level | VDD– 1.42 | — | VDD– 1.25 | V | ||||||||||||||||
| VOD | Swing (diff) | 1.1 | — | 1.9 | VPP | |||||||||||||||||
| VSE | Swing (Single-ended) | 0.55 | — | 0.95 | VPP | |||||||||||||||||
| LVDS Output Option2 | VO | Mid-level | 1.125 | 1.20 | 1.275 | V | ||||||||||||||||
| VOD | Swing (diff) | 0.5 | 0.7 | 0.9 | VPP | |||||||||||||||||
| Rise/Fall time (20/80%) | tR,tF | — | — | 350 | ps | |||||||||||||||||
| Symmetry (duty cycle) | SYM | Differential | 45 | — | 55 | % | ||||||||||||||||

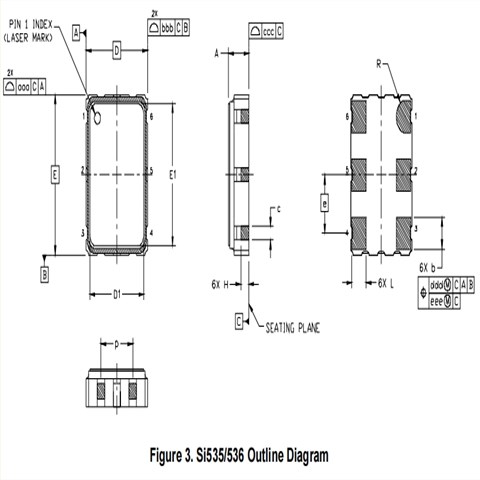

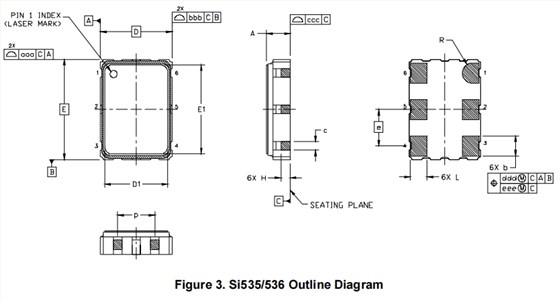

536AC150M000DG,Skyworks低功耗振荡器,6G光通讯晶振,Si536差分晶振尺寸图
OSC晶振产品特性：
任何可编程输出频率为10至945MHz
选择频率至1.4GHz
2C串行接口
具有卓越性能的第三代DSPLL®抖动性能
频率稳定性比SAW振荡器
内部固定晶体频率
确保高可靠性和低成本变老
可用LVPECL、CMOS、LVDS和CML输出
行业标准5x7mm包裹
无铅/符合RoHS
1.8、2.5或3.3 V电源
