ECS-160-20-5PVX,美国伊西斯晶振,16.000MHz,进口SMD晶振

产品简介

ECS-160-20-5PVX,美国伊西斯晶振,16.000MHz,进口SMD晶振，ECS-160-20-5PVX晶振,美国伊西斯晶振,频率16.000MHz,负载20pf,工作温度-10~70°C,进口SMD晶振,HC49/US贴片晶振,石英晶体谐振器,CSM-7SSX无源晶振,家用电视机顶盒晶振,摄像头晶振,录音笔晶振,电子体重秤晶振.

产品详情

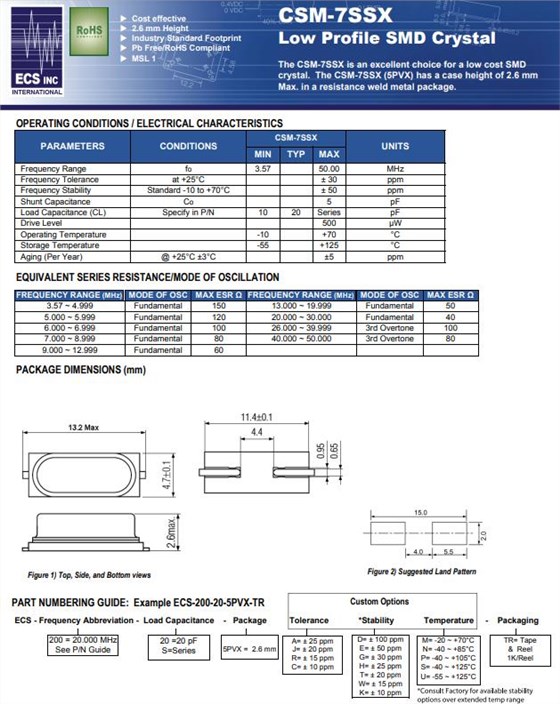

ECS-160-20-5PVX,美国伊西斯晶振,16.000MHz,进口SMD晶振，参数图

参数	条件	CSM-7SSX
频率		16MHz
频率公差	at +25°C	±30PPM
频率稳定性	-10°Cto+70°C	±50PPM
负载电容	Specify in P/N	20pF
激励功率		500μWMax
工作温度		-10°Cto+70°C
保存温度		-55°Cto+125°C
并联电容		5.0pF
老化	@ +25°C ±3°C	±5ppm

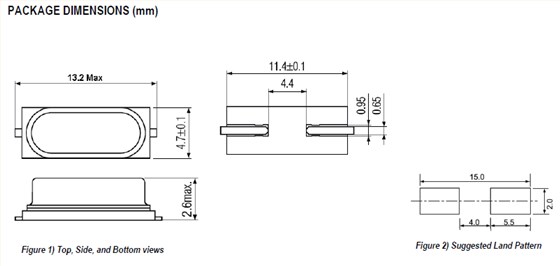

ECS-160-20-5PVX,美国伊西斯晶振,16.000MHz,进口SMD晶振，尺寸图

ECS原厂编码	型号	频率	频率稳定度	频率偏差	负载电容	工作温度
ECS-100-20-5PVX	CSM-7SSX	10MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-110.5-20-5PVX	CSM-7SSX	11.0592MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-120-18-5PVX	CSM-7SSX	12MHz	±50ppm	±30ppm	18pF	-10°C ~ 70°C
ECS-120-32-5PVX	CSM-7SSX	12MHz	±50ppm	±30ppm	32pF	-10°C ~ 70°C
ECS-122.8-20-5PVX	CSM-7SSX	12.288MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-143-20-5PVX	CSM-7SSX	14.31818MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-147.4-20-5PVX	CSM-7SSX	14.7456MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-160-20-5PVX	CSM-7SSX	16MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-184-20-5PVX	CSM-7SSX	18.432MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-200-20-5PVX	CSM-7SSX	20MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-240-20-5PVX	CSM-7SSX	24MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-245.7-20-5PVX	CSM-7SSX	24.576MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-250-20-5PVX	CSM-7SSX	25MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-270-20-5PVX	CSM-7SSX	27MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-35-18-5PVX	CSM-7SSX	3.579545MHz	±50ppm	±30ppm	18pF	-10°C ~ 70°C
ECS-36-20-5PVX	CSM-7SSX	3.6864MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-40-20-5PVX	CSM-7SSX	4MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-60-20-5PVX	CSM-7SSX	6MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-80-20-5PVX	CSM-7SSX	8MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-98.3-20-5PVX	CSM-7SSX	9.8304MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
