LX201 XO系列是具有极低抖动性能,LX2015D26.000000,低功耗晶振,ECERA小体积晶振

2022-07-02 16:43:25 康华尔电子

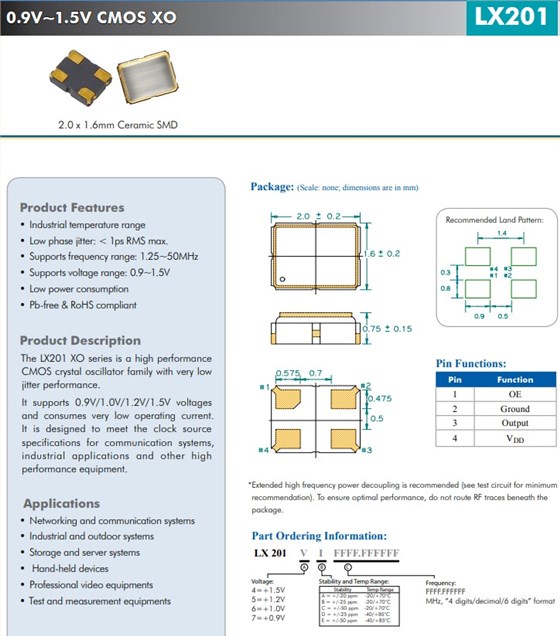

百利通亚陶晶振LX201 XO系列是具有极低抖动性能的高性能CMOS晶体振荡器系列,LX201系列,0.9V~1.5V、超小型尺寸2.0x1.6mm、低电源电压CMOS晶体振荡器,它支持0.9V/1.0V/1.2V/1.5V电压并且消耗非常低的工作电流。它旨在满足通信系统、工业应用和其他高性能设备的时钟源规范。

产品特点:
工业温度范围
低相位抖动:< 1ps RMS max。
支持频率范围:1.25~50MHz
支持电压范围:0.9~1.5V
低功耗,高性能晶振
无铅且符合RoHS标准
应用于:
网络和通信系统
工业和户外系统
存储和服务器系统
手持设备
专业视频设备
测试和测量设备

LX201 XO系列是具有极低抖动性能,LX2015D26.000000,低功耗晶振,ECERA小体积晶振

HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
HX21480001 Diodes Incorporated SaRonix-eCera™ HX 48MHz ±50ppm -40°C ~ 105°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
NX7031E0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -40°C ~ 85°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX2127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SHPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SQPCIE100 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 100MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SN10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
SQA000001 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
NX53D3301Z Diodes Incorporated SaRonix-eCera™ NX 133.333333MHz ±50ppm -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT2553P0016.369000 Diodes Incorporated SaRonix-eCera™ JT 16.369MHz ±500ppb -40°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
JT15260001 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C

1

LX201 XO系列是具有极低抖动性能,LX2015D26.000000,低功耗晶振,ECERA小体积晶振

Product Parameters

Subfamily General XO
Product Series LX2
Compliance(Only Automotive supports PPAP) Standard
Freq Range (MHz) 1 to 50
Jitter RMS (ps) <1
Stability (PPM) 20to50
Package Size (mm) 2.0 x 1.6
PkgType Ceramic Seam
Output Logic CMOS
Supply Voltage (V) 0.9, 1.5
Pads 4
NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F5506Z Diodes Incorporated SaRonix-eCera™ NX 155.52MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
NX72F6208Z Diodes Incorporated SaRonix-eCera™ NX 156.25MHz ±50ppm -20°C ~ 70°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX51706001 Diodes Incorporated SaRonix-eCera™ HX 70.656MHz ±50ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
HX7011C0020.000000 Diodes Incorporated SaRonix-eCera™ HX 20MHz ±25ppm -40°C ~ 105°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
PBF620074Z Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -20°C ~ 70°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
NX3241E0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±50ppm -40°C ~ 85°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
PXC500007 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -20°C ~ 70°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX73K0004Z Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX7021E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C
NX5041D0100.000000 Diodes Incorporated SaRonix-eCera™ NX 100MHz ±25ppm -40°C ~ 85°C
LX201 XO系列是具有极低抖动性能,LX2015D26.000000,低功耗晶振,ECERA小体积晶振

百利通亚陶晶振在生产石英晶体振荡器方面的技术上是无人能及,Diodes晶振所提供石英振荡器和SaRonix-eCera™的石英晶体共振器利用自己内部晶体和IC设计,Diodes 提供最好种类的晶体和石英振荡器可以配合用户的设计需求。在业界拥有最小的石英振荡器,实现极好的稳定性透过广泛范围的操作状况。石英晶体振荡器也分为多中类别:温补晶振,压控晶振,压控温补晶振,差分晶振等均为有源晶振。

NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX7021D0148.500000 Diodes Incorporated SaRonix-eCera™ NX 148.5MHz ±25ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
NX3221E0150.000000 Diodes Incorporated SaRonix-eCera™ NX 150MHz ±50ppm -40°C ~ 85°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
SNSAS2150 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 150MHz ±50ppm -20°C ~ 70°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PD10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
PDF620008Z Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -40°C ~ 85°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX72G1102Z Diodes Incorporated SaRonix-eCera™ NX 161.132812MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
NX7032C0200.000000 Diodes Incorporated SaRonix-eCera™ NX 200MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX52F62008 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -20°C ~ 70°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
UX54F62001 Diodes Incorporated SaRonix-eCera™ UX 156.25MHz ±50ppm -40°C ~ 85°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C
NX72W2201Z Diodes Incorporated SaRonix-eCera™ NX 322.265625MHz ±50ppm -20°C ~ 70°C

LX201 XO系列是具有极低抖动性能,LX2015D26.000000,低功耗晶振,ECERA小体积晶振

LX201 标准 CMOS 0.91.5 20~50 1 到 50 <1 4 - 0.9V~1.5V、2.0x1.6mm、低Vdd CMOS晶体振荡器
LX251 标准 CMOS 0.91.5 20~50 1 到 50 <1 4 - 0.9V~1.5V、2.5x2.0mm、低Vdd CMOS输出晶振
LX321 标准 CMOS 0.91.5 20~50 1 到 50 <1 4 - 0.9V~1.5V、3.2x2.5mm、低Vdd CMOS晶体振荡器
LX501 标准 CMOS 0.91.5 20~50 1 到 50 <1 4 - 0.9V~1.5V、5.0x3.2mm、低Vdd CMOS晶体振荡器
LX701 标准 CMOS 0.91.5 20~50 1 到 50 <1 4 - 0.9V~1.5V、7.0x5.0mm、低Vdd CMOS晶体振荡器
