UF253/UF23系列超低相位抖动,UF2532DC0156.250000,LVDS晶体振荡器,ECERA晶振

2022-07-15 10:38:32 康华尔电子

百利通亚陶晶振UF253/UF23 XO系列是世界上最小的晶体振荡器系列,经过优化以节省电路板空间。小体积晶振尺寸2.5x2.0mm,超低抖动,该系列由具有超低抖动性能的高性能LVDS晶体振荡器组成,可满足严格的芯片组要求。它支持多种选择,包括更宽的频率范围、2.5V/3.3V电压和各种稳定性。它旨在满足通信系统和其他高性能设备的时钟源规范。

特征:
超低相位抖动晶振
0.06ps典型值。0.08psRMS最大值(12kHz至20MHz)
扩展温度范围高达125℃
完全无铅且完全符合RoHS标准
不含卤素和锑。“绿色”设备
应用程序:
网络系统
光模块
服务器和存储系统
专业视频设备
测试与测量
FPGA/ASIC 时钟生成
112G 串行应用

UF253/UF23系列超低相位抖动,UF2532DC0156.250000,LVDS晶体振荡器,ECERA晶振

PD10GE159 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 159.375MHz ±50ppm -20°C ~ 70°C
PD10GE159 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 159.375MHz ±50ppm -20°C ~ 70°C
PDGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
PDGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
PDGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
JX7011D0104.000000 Diodes Incorporated SaRonix-eCera™ JX 104MHz ±25ppm -40°C ~ 85°C
JX7011D0104.000000 Diodes Incorporated SaRonix-eCera™ JX 104MHz ±25ppm -40°C ~ 85°C
JX7011D0104.000000 Diodes Incorporated SaRonix-eCera™ JX 104MHz ±25ppm -40°C ~ 85°C
JT255BI0032.000000 Diodes Incorporated SaRonix-eCera™ JT 32MHz ±2ppm -30°C ~ 85°C
JT255BI0032.000000 Diodes Incorporated SaRonix-eCera™ JT 32MHz ±2ppm -30°C ~ 85°C
JT255BI0032.000000 Diodes Incorporated SaRonix-eCera™ JT 32MHz ±2ppm -30°C ~ 85°C
LDA000004 Diodes Incorporated SaRonix-eCera™ LD 100MHz ±50ppm -40°C ~ 85°C
FN2500246 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500246 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN2500246 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -20°C ~ 70°C
FN1000064 Diodes Incorporated SaRonix-eCera™ FN 10MHz ±50ppm -20°C ~ 70°C
FN1000064 Diodes Incorporated SaRonix-eCera™ FN 10MHz ±50ppm -20°C ~ 70°C
FN1000064 Diodes Incorporated SaRonix-eCera™ FN 10MHz ±50ppm -20°C ~ 70°C
UJ2600001 Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -30°C ~ 85°C
UJ2600001 Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -30°C ~ 85°C
UJ2600001 Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -30°C ~ 85°C
FN7500043 Diodes Incorporated SaRonix-eCera™ FN 75MHz ±25ppm -20°C ~ 70°C
FN7500043 Diodes Incorporated SaRonix-eCera™ FN 75MHz ±25ppm -20°C ~ 70°C
FN7500043 Diodes Incorporated SaRonix-eCera™ FN 75MHz ±25ppm -20°C ~ 70°C
FNSTB1027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C

QQ截图20220715093814

QQ截图20220715093854

FNSTB1027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSTB1027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSURV054 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 54MHz ±30ppm -20°C ~ 70°C
FNSURV054 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 54MHz ±30ppm -20°C ~ 70°C
FNSURV054 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 54MHz ±30ppm -20°C ~ 70°C
FDSAS6062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FDSAS6062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FDSAS6062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FN5000121 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -20°C ~ 70°C
FN5000121 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -20°C ~ 70°C
FN5000121 Diodes Incorporated SaRonix-eCera™ FN 50MHz ±50ppm -20°C ~ 70°C
FD2450017 Diodes Incorporated SaRonix-eCera™ FD 24.576MHz ±50ppm -40°C ~ 85°C
FD2450017 Diodes Incorporated SaRonix-eCera™ FD 24.576MHz ±50ppm -40°C ~ 85°C
FD2450017 Diodes Incorporated SaRonix-eCera™ FD 24.576MHz ±50ppm -40°C ~ 85°C
FN2500140 Diodes Incorporated SaRonix-eCera™ FN 25.000625MHz ±25ppm -40°C ~ 85°C
FN2500140 Diodes Incorporated SaRonix-eCera™ FN 25.000625MHz ±25ppm -40°C ~ 85°C
FN2500140 Diodes Incorporated SaRonix-eCera™ FN 25.000625MHz ±25ppm -40°C ~ 85°C
FN4800068 Diodes Incorporated SaRonix-eCera™ FN 48MHz ±50ppm -20°C ~ 70°C
FN4800068 Diodes Incorporated SaRonix-eCera™ FN 48MHz ±50ppm -20°C ~ 70°C
FN4800068 Diodes Incorporated SaRonix-eCera™ FN 48MHz ±50ppm -20°C ~ 70°C
FN3330078 Diodes Incorporated SaRonix-eCera™ FN 33.333MHz ±30ppm -40°C ~ 85°C
FN3330078 Diodes Incorporated SaRonix-eCera™ FN 33.333MHz ±30ppm -40°C ~ 85°C
FN3330078 Diodes Incorporated SaRonix-eCera™ FN 33.333MHz ±30ppm -40°C ~ 85°C
FN0200045 Diodes Incorporated SaRonix-eCera™ FN 2.048MHz ±50ppm -20°C ~ 70°C
FN0200045 Diodes Incorporated SaRonix-eCera™ FN 2.048MHz ±50ppm -20°C ~ 70°C

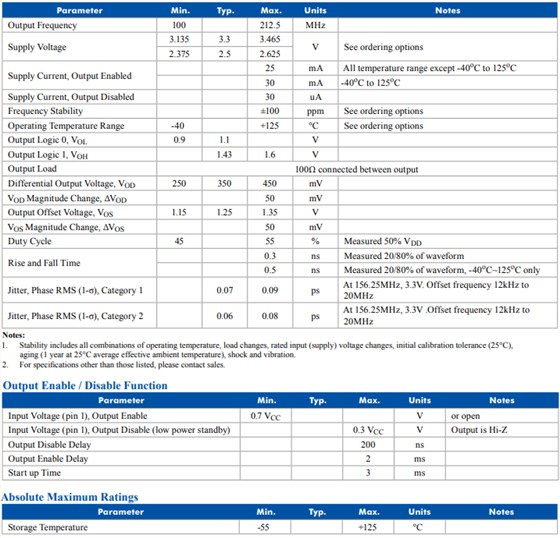

Product Parameters

Stability (PPM) 20to100
Package Size (mm) 2.5 x 2.0 x 0.8
PkgType Ceramic Seam
Freq Range (MHz) 100 to 212.5
Jitter RMS (ps) 0.08 to 0.09
Output Logic LVDS
Supply Voltage (V) 3.3, 2.5
Pads 6
ProductSeries UF2

UF253/UF23系列超低相位抖动,UF2532DC0156.250000,LVDS晶体振荡器,ECERA晶振

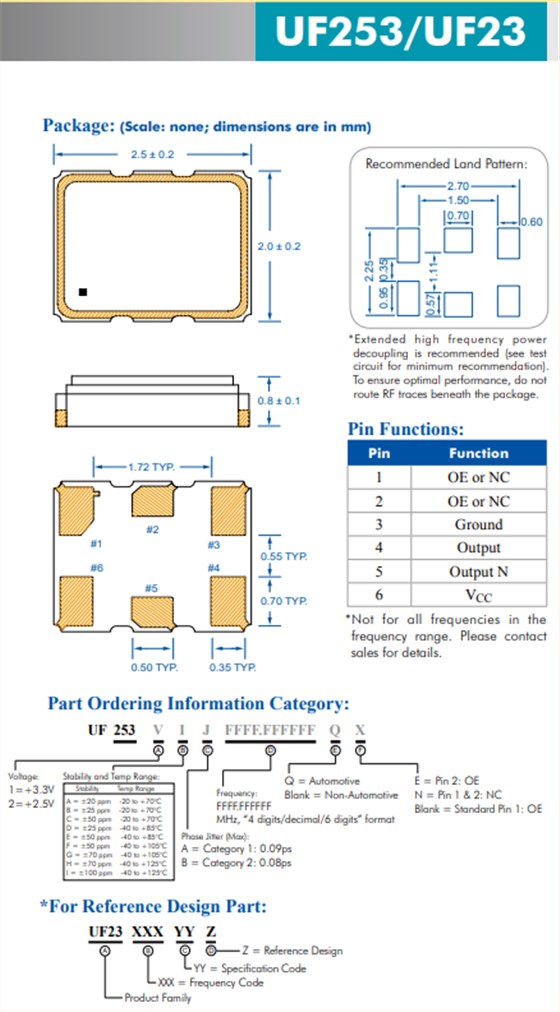

产品参数:
