CTS西迪斯时钟振荡器选择方案,在这场激烈的市场斗争之中,CTS公司凭借着的努力,逆袭成为当下最受欢迎的元器件供应商之一,主要向世界各地提供低损耗高性能的有源贴片晶振产品为主,经过长期的专注打磨,所制作出来的产品性能优越,品质优良,很适合用于各个领域之中,并得到广大用户的深度认可与支持。

被称为工业4.0的第四次工业革命描述了传统自动化的延续制造和工业实践,结合快速发展的智能技术。工业4.0正在推动需要交换和分析大量收集的数据,以改进过程控制,提高吞吐量,并实现自我监控,从而在无需操作员干预的情况下诊断问题。
工业物联网[IIoT]应用程序正在使用更多的无线技术来连接大规模机器对机器通信[M2M],从而对能够在智能工厂的操作环境。这些环境带来了挑战,包括更高的温度范围、冲击和振动元件,以及支持电池运行的低功率限制需要以最小的时间同步错误、数据丢失和短而稳定的延迟问题。

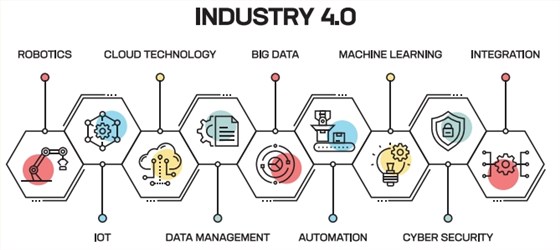

图22

CTS为下一代IIoT MCU、SoC开发了一系列晶体谐振器和石英晶体振荡器或支持5G通信要求的FPGA,以实现更快的数据速度、低噪声性能和低功耗功耗。为了满足上述标准,CTS的物联网增强型晶体[4xW系列]被设计并以最低的串联电阻值进行处理,同时结合小负载电容选项,确保用于可靠振荡器启动的安全增益裕度GM。工业级时钟振荡器[CHT系列]提供更小稳定性选项,改善噪音性能,最高工作温度可达+125°C。CTS西迪斯时钟振荡器选择方案.
极端环境
许多电气系统需要在超出标准MIL-STD操作温度范围为-55°C至+125°C。多年来,工业应用开发了传感器、仪表和数据采集系统,可在+200°C及以上的深部地区运行钻井、地热测井和过程监测等等。除了高温这些电子设备中的许多需要在高冲击和振动条件下生存。
