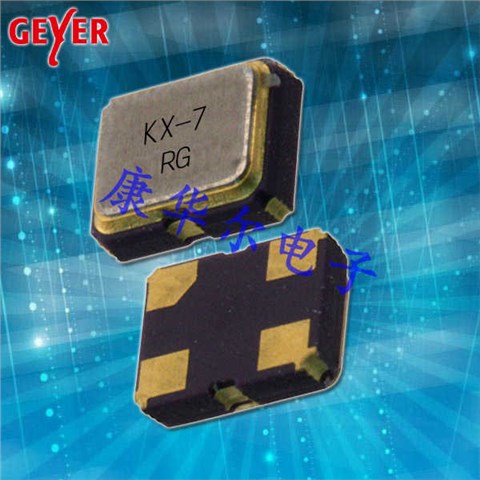

12.60075无线蓝牙晶振,KX-7水晶振动子,丹麦Geyer格耶晶振

12.60075无线蓝牙晶振,KX-7水晶振动子,丹麦Geyer格耶晶振12.60075无线蓝牙晶振,KX-7水晶振动子,丹麦Geyer格耶晶振

产品简介

12.60075无线蓝牙晶振,KX-7水晶振动子,丹麦Geyer格耶晶振,尺寸3.2x2.5mm,频率30MHZ,丹麦无源晶振,格耶石英晶振,3225小体积晶振,无源贴片晶振,无源晶振,石英SMD晶体,无源石英晶振,SMD晶振,石英晶体谐振器,石英振动子,贴片石英晶振,30MHZ无源晶振,四脚贴片晶振,无铅环保晶振,低功耗晶振,低损耗晶振,高质量晶振,高可靠晶振,无线蓝牙晶振,网络设备晶振,移动通信晶振,便携式设备晶振,小型设备晶振,数字音频晶振,具有低功耗高质量的特点。

石英晶振产品广泛应用各个领域之中,比较常用于无线蓝牙,网络设备,移动通信,便携式设备,小型设备,数字音频等领域。12.60075无线蓝牙晶振,KX-7水晶振动子,丹麦Geyer格耶晶振.

产品详情

1

12.60075无线蓝牙晶振,KX-7水晶振动子,丹麦Geyer格耶晶振,尺寸3.2x2.5mm,频率30MHZ,丹麦无源晶振,格耶石英晶振,3225小体积晶振,无源贴片晶振,无源晶振,石英SMD晶体,无源石英晶振,SMD晶振,石英晶体谐振器,石英振动子,贴片石英晶振,30MHZ无源晶振,四脚贴片晶振,无铅环保晶振,低功耗晶振,低损耗晶振,高质量晶振,高可靠晶振,无线蓝牙晶振,网络设备晶振,移动通信晶振,便携式设备晶振,小型设备晶振,数字音频晶振,具有低功耗高质量的特点。

石英晶振产品广泛应用各个领域之中,比较常用于无线蓝牙,网络设备,移动通信,便携式设备,小型设备,数字音频等领域。12.60075无线蓝牙晶振,KX-7水晶振动子,丹麦Geyer格耶晶振.2

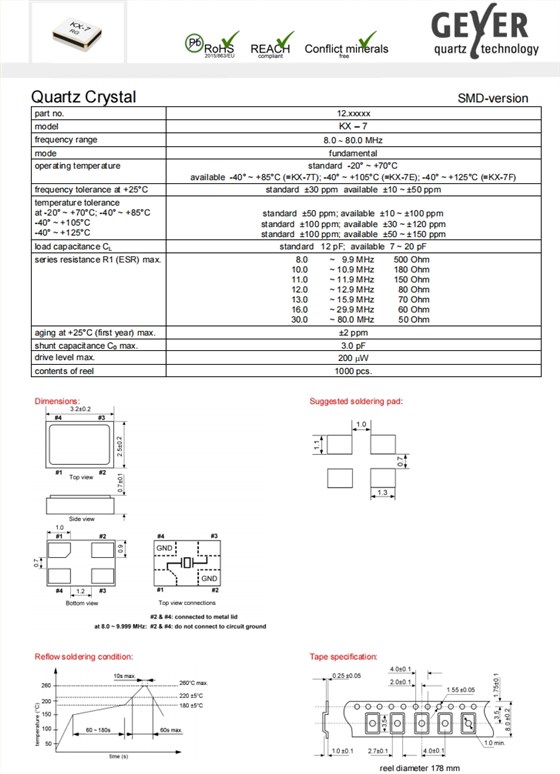

12.60075无线蓝牙晶振,KX-7水晶振动子,丹麦Geyer格耶晶振参数表

part no. 12.xxxxx
model KX - 7
frequency range 30.0 MHz
mode fundamental
operating temperature standard-20° ~ +70°C
available-40° ~ +85°C (=KX-7T); -40° ~ +105°C (=KX-7E); -40° ~ +125°C (=KX-7F)
frequency tolerance at +25°C standard±30 ppmavailable±10 ~ ±50 ppm
temperature tolerance
at -20° ~ +70°C; -40° ~ +85°C
-40° ~ +105°C
-40° ~ +125°C
standard±50 ppm; available±10 ~ ±100 ppm
standard±100 ppm; available±30 ~ ±120 ppm
standard±100 ppm; available±50 ~ ±150 ppm
load capacitance CL standard12 pF;available7 ~ 20 pF
series resistance R1 (ESR) max. 8.0
10.0
11.0
12.0
13.0
16.0
30.0
~9.9
~ 10.9
~ 11.9
~ 12.9
~ 15.9
~ 29.9
~ 80.0
MHz
MHz
MHz
MHz
MHz
MHz
MHz
500
180
150
80
70
60
50
Ohm
Ohm
Ohm
Ohm
Ohm
Ohm
Ohm
aging at +25°C (first year) max. ±2 ppm
shunt capacitance C0max. 3.0 pF
drive level max. 200 μW
contents of reel 1000 pcs.
3

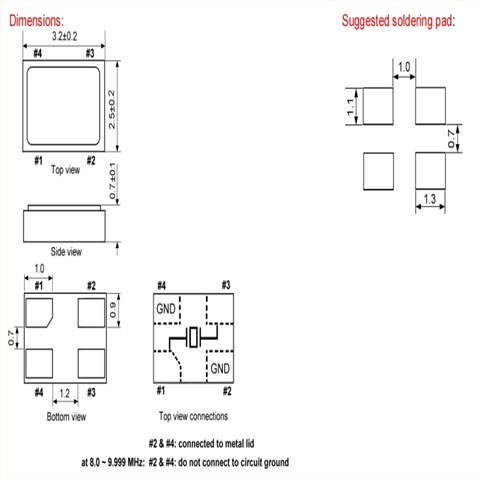

12.60075无线蓝牙晶振,KX-7水晶振动子,丹麦Geyer格耶晶振 尺寸图KX-7

12.60075无线蓝牙晶振,KX-7水晶振动子,丹麦Geyer格耶晶振

SMD晶振产品特性:

超小型包装(3.2x 2.5 毫米)

频率范围8~80MHZ

优异的老化特性

符合RoHS标准且无铅

KX-7 1

Mfr Part # 晶振厂家 Description Series Frequency Frequency Stability Frequency Tolerance Load Capacitance Operating Temperature
12.89082 Geyer晶振 Crystal 26.0Mhz SMD KX-9AT 16pF, KX-9AT 26 MHz ±50ppm ±30ppm 16pF -40°C ~ 85°C
12.60075 Geyer晶振 Cystal 30.0Mhz 8pF SMD KX-7 30 MHz ±50ppm ±30ppm 8pF -40°C ~ 125°C
12.89155 Geyer晶振 Crystal 32.0Mhz SMD KX-9AT 16pF, KX-9AT 32 MHz ±30ppm ±30ppm 16pF -40°C ~ 85°C
12.88522 Geyer晶振 Crystal 11.059200Mhz 12pF SMD KX-7T 11.0592 MHz ±50ppm ±30ppm 12pF -20°C ~ 70°C
12.88752 Geyer晶振 Crystal 10.0Mhz 12pF SMD KX-7 10 MHz ±50ppm ±30ppm 12pF -20°C ~ 70°C
12.85569 Geyer晶振 CYSTAL 27.120MHZ 8PF SMD KX-5T 27.12 MHz ±15ppm ±10ppm 8pF -40°C ~ 85°C
12.88565 Geyer晶振 Crystal 8.0Mhz 12pF SMD KX-7E 8 MHz ±50ppm ±30ppm 12pF -20°C ~ 70°C
12.85538 Geyer晶振 CYSTAL 24.5760MHZ 8PF SMD KX-5T 24.576 MHz ±100ppm ±30ppm 8pF -40°C ~ 85°C
12.86533 Geyer晶振 Cystal 26.0Mhz 10pF SMD KX-6T 26 MHz ±100ppm ±30ppm 10pF -40°C ~ 85°C
12.89209 Geyer晶振 Crystal 16.0Mhz SMD KX-9AE 20pF, KX-9AE 16 MHz ±50ppm ±30ppm 20pF -40°C ~ 105°C
12.8652 Geyer晶振 Cystal 27.0Mhz 10pF SMD KX-6 27 MHz ±50ppm ±30ppm 10pF -20°C ~ 70°C
12.86574 Geyer晶振 Crystal 27.0Mhz 8pF SMD KX-6F 27 MHz ±150ppm ±30ppm 8pF -40°C ~ 125°C
12.85541 Geyer晶振 CYSTAL 30.0MHZ 8PF SMD KX-5 30 MHz ±30ppm ±30ppm 8pF -20°C ~ 70°C
12.84818 Geyer晶振 Crystal 24.0MHz 8pF SMD KX-4 24 MHz ±50ppm ±30ppm 8pF -20°C ~ 70°C
12.86527 Geyer晶振 Cystal 20.0Mhz 10pF SMD KX-6T 20 MHz ±15ppm ±10ppm 10pF -40°C ~ 85°C
12.85534 Geyer晶振 CYSTAL 27.0MHZ 8PF SMD KX-5T 27 MHz ±50ppm ±30ppm 8pF -40°C ~ 85°C
12.86505 Geyer晶振 Cystal 26.0Mhz 10pF SMD KX-6 26 MHz ±50ppm ±30ppm 10pF -20°C ~ 70°C
12.60024 Geyer晶振 Cystal 27.0Mhz 12pF SMD KX-7E 27 MHz ±100ppm ±30ppm 12pF -40°C ~ 105°C
12.84803 Geyer晶振 Crystal 26.0MHz 8pF SMD KX-4 26 MHz ±20ppm ±10ppm 8pF -40°C ~ 85°C
12.85518 Geyer晶振 CYSTAL 20.0MHZ 8PF SMD KX-5E 20 MHz ±50ppm ±30ppm 8pF -40°C ~ 105°C
12.8873 Geyer晶振 Crystal 26.0Mhz 12pF SMD KX-7T 26 MHz ±50ppm ±30ppm 12pF -40°C ~ 85°C
12.86556 Geyer晶振 Crystal 40.0Mhz 8pF SMD KX-6T 40 MHz ±20ppm ±10ppm 8pF -40°C ~ 85°C
12.88643 Geyer晶振 Crystal 14.3181800Mhz 12pF SMD KX-7T 14.31818 MHz ±50ppm ±30ppm 12pF -40°C ~ 85°C
12.86511 Geyer晶振 Crystal 18.4320Mhz 10pF SMD KX-6 18.432 MHz ±50ppm ±30ppm 10pF -20°C ~ 70°C
12.88523 Geyer晶振 Crystal 40.0Mhz 12pF SMD KX-7F 40 MHz ±50ppm ±30ppm 12pF -40°C ~ 125°C
12.89288 Geyer晶振 Crystal 24.5760Mhz SMD KX-9AT 20 KX-9AT 24.576 MHz ±30ppm ±20ppm 20pF -40°C ~ 85°C
12.86536 Geyer晶振 Crystal 14.318180Mhz 10pF SMD KX-6 14.31818 MHz ±50ppm ±30ppm 10pF -20°C ~ 70°C
12.89029 Geyer晶振 Crystal 27.0Mhz SMD KX-9A 16pF, KX-9A 27 MHz ±50ppm ±30ppm 16pF -20°C ~ 70°C
12.88799 Geyer晶振 Crystal 12.0Mhz 10pF SMD KX-7 12 MHz ±30ppm ±30ppm 10pF -20°C ~ 70°C
12.8481 Geyer晶振 Crystal 48.0MHz 8pF SMD KX-4 48 MHz ±50ppm ±30ppm 8pF -40°C ~ 85°C
12.84814 Geyer晶振 Crystal 32.0MHz 8pF SMD KX-4 32 MHz ±15ppm ±10ppm 8pF -40°C ~ 85°C
12.88756 Geyer晶振 Crystal 10.0Mhz 12pF SMD KX-7E 26 MHz ±50ppm ±10ppm 12pF -40°C ~ 105°C
12.8556 Geyer晶振 CYSTAL 16.0MHZ 8PF SMD KX-5T 16 MHz ±30ppm ±30ppm 8pF -40°C ~ 85°C
12.86561 Geyer晶振 Crystal 40.0Mhz 10pF SMD KX-6T 40 MHz ±20ppm ±10ppm 10pF -40°C ~ 85°C
12.8877 Geyer晶振 Crystal 30.0Mhz 12pF SMD KX-7T 30 MHz ±10ppm ±10ppm 12pF -25°C ~ 80°C
12.86564 Geyer晶振 Crystal 14.318180Mhz 10pF SMD KX-6T 14.31818 MHz ±100ppm ±30ppm 10pF -40°C ~ 85°C
12.86592 Geyer晶振 Crystal 25.0Mhz SMD KX-6T 12pF, KX-6T 25 MHz ±20ppm ±10ppm 12pF -40°C ~ 85°C
12.87159 Geyer晶振 CRYSTAL 32.7680kHz 12.5pF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 12.5pF -40°C ~ 85°C
12.87163 Geyer晶振 CRYSTAL 32.768KHZ 7PF SMD KX-327RT 32.768 kHz -0.036ppm ±20ppm 7pF -40°C ~ 85°C
12.87151 Geyer晶振 CRYSTAL 32.7680kHz 9pF SMD KX-327NHT 32.768 kHz -0.035ppm ±30ppm 9pF -40°C ~ 85°C
12.8717 Geyer晶振 CRYSTAL 32.7680KHZ 12.5PF SMD KX-327FT 32.768 kHz - ±20ppm 12.5pF -40°C ~ 85°C
12.87148 Geyer晶振 CRYSTAL 32.7680KHZ 7PF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 7pF -40°C ~ 85°C
12.87106 Geyer晶振 CRYSTAL 32.768KHZ 7PF SMD KX-327XST 32.768 kHz ±20ppm ±20ppm 7pF -40°C ~ 85°C
12.8716 Geyer晶振 CYSTAL 32.7680KHZ 12.5PF SMD KX-327RT 32.768 kHz ±20ppm ±20ppm 12.5pF -40°C ~ 85°C
12.87143 Geyer晶振 CRYSTAL 32.768KHz 9pF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 9pF -40°C ~ 85°C
12.84801 Geyer晶振 Crystal 26.0MHz 8pF SMD KX-4 26 MHz ±50ppm ±30ppm 8pF -20°C ~ 70°C
12.8718 Geyer晶振 Crystal 32.7680kHz 9pF SMD KX-327NHF 32.768 kHz -0.03ppm ±20ppm 9pF -40°C ~ 125°C
12.87147 Geyer晶振 CRYSTAL 32.768KHz 7pF SMD KX-327NHT 32.768 kHz - ±10ppm 7pF -40°C ~ 85°C
12.87081 Geyer晶振 CRYSTAL 32.768KHZ 6PF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 6pF -40°C ~ 85°C
12.87149 Geyer晶振 CRYSTAL 32.7680KHZ 9PF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 9pF -40°C ~ 85°C
12.87156 Geyer晶振 CRYSTAL 32.768KHz 12.5pF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 12.5pF -40°C ~ 85°C
12.87154 Geyer晶振 CRYSTAL 32.768KHz 12.5pF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 12.5pF -40°C ~ 85°C
12.87174 Geyer晶振 CRYSTAL 32.768KHz 7pF SMD KX-327FT 32.768 kHz -0.036ppm ±20ppm 7pF -40°C ~ 85°C
12.87114 Geyer晶振 Cystal 32.7680Khz 12.5pF SMD KX-327ST 32.768 kHz -0.034ppm, ±0.006ppm ±20ppm 12.5pF -40°C ~ 85°C
12.8715 Geyer晶振 CRYSTAL 32.7680KHZ 12.5PF SMD KX-327NHT 32.768 kHz -0.035ppm ±20ppm 12.5pF -40°C ~ 85°C
12.87181 Geyer晶振 CRYSTAL 32.7680KHZ 12.5PF SMD KX-327NHF 32.768 kHz -0.03ppm ±20ppm 12.5pF -40°C ~ 125°C
12.60023 Geyer晶振 Cystal 48.0Mhz 12pF SMD KX-7E 48 MHz ±50ppm ±30ppm 12pF -40°C ~ 105°C
12.85559 Geyer晶振 CYSTAL 40.0MHZ 8PF SMD KX-5 40 MHz ±50ppm ±30ppm 8pF -20°C ~ 70°C
