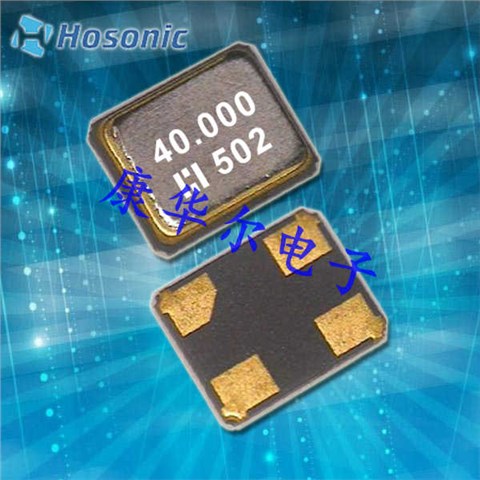

6G网络晶振|ETSB24E000003E|ETSB石英振动子|台湾鸿星晶体

6G网络晶振|ETSB24E000003E|ETSB石英振动子|台湾鸿星晶体，尺寸1.6x1.2mm，频率24MHZ，Hosonic无源晶振，石英贴片晶振，石英晶体谐振器，1612mm小体积晶振，SMD晶体谐振器，无源贴片晶振，石英晶体，SMD晶振，24MHZ无源晶振，石英水晶振动子，绿色环保晶振，轻薄型晶振，高性能晶振，高精度晶振，低功耗晶振，低成本晶振，低损耗晶振，无线模块晶振，可穿戴设备晶振，便携式设备晶振，数码相机晶振，网络设备晶振，具有高精度低功耗的特点。

石英晶体产品被广泛用于各个领域，尤其适合用于可穿戴设备，无线模块，数码相机，便携式设备，娱乐设备，网络设备等领域。6G网络晶振|ETSB24E000003E|ETSB石英振动子|台湾鸿星晶体.

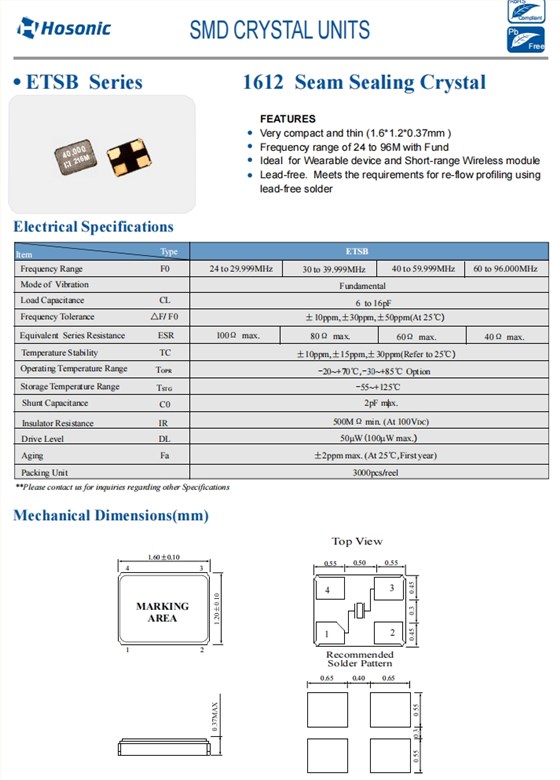

6G网络晶振|ETSB24E000003E|ETSB石英振动子|台湾鸿星晶体 参数表

Item	Type	ETSB
Frequency Range	F0	24 MHz	30 to 39.999MHz	40 to 59.999MHz	60 to 96.000MHz
Mode of Vibration		Fundamental
Load Capacitance	CL	6to 16pF
Frequency Tolerance	ΔF/ F0	±10ppm,±30ppm,±50ppm(At 25℃)
EquivalentSeries Resistance	ESR	100Ωmax.	80Ωmax.	60Ωmax.	40Ωmax.
Temperature Stability	TC	±10ppm,±15ppm,±30ppm(Refer to 25℃)
Operating Temperature Range	TOPR	-20~+70℃,-30~+85℃Option
Storage Temperature Range	TSTG	-55~+125℃
Shunt Capacitance	C0	2pF max.
Insulator Resistance	IR	500MΩmin. (At 100VDC)
Drive Level	DL	50μW(100μW max.)
Aging	Fa	±2ppm max. (At 25℃,First year)
Packing Unit		3000pcs/reel

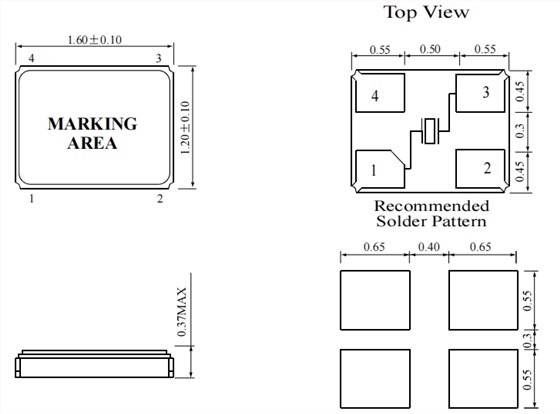

6G网络晶振|ETSB24E000003E|ETSB石英振动子|台湾鸿星晶体尺寸图

晶振产品特性：

非常紧凑和薄（1.6*1.2*0.37mm）

频率范围为24至96MHZ

理想的可穿戴设备和短程无线模块无铅。

满足使用无铅焊料进行再流分析的要求.

更多相关Hosonic鸿星晶振型号

Mfr Part #	Supplier	Series	Frequency	Frequency Stability稳定度	Frequency Tolerance	Load Capacitance
ETSB37E0X0014E	Hosonic鸿星晶振	ETSB	37.4 MHz	±10ppm	±10ppm	16pF
ETSB38E0X0005E	Hosonic鸿星晶振	ETSB	38.4 MHz	±10ppm	±10ppm	10pF
ETSB24E000003E	Hosonic鸿星晶振	ETSB	24 MHz	±10ppm	±10ppm	8pF
ETSB48E007500ECBB8	Hosonic鸿星晶振	ETSB	48 MHz	±15ppm	±10ppm	10pF
ETSB48E007502E	Hosonic鸿星晶振	ETSB	48 MHz	±15ppm	±10ppm	10pF
ETSB32E000003E	Hosonic鸿星晶振	ETSB	32 MHz	±10ppm	±10ppm	8pF
ETSB60E003700E	Hosonic鸿星晶振	ETSB	60 MHz	±20ppm	±10ppm	9pF
E3FB24E00000KE	Hosonic鸿星晶振	E3FB	24 MHz	±30ppm	±30ppm	12pF
ETSB27E0X0003E	Hosonic鸿星晶振	ETSB	27.12 MHz	±10ppm	±10ppm	10pF
ETSB25E004800E	Hosonic鸿星晶振	ETSB	25 MHz	±15ppm	±10ppm	8pF
ETST00327000JE	Hosonic鸿星晶振	ETST	32.768 kHz	-	±20ppm	12.5pF
E5FA8E000000DE	Hosonic鸿星晶振	E5FA	8MHz	±20ppm		20pF
E3FB26E004203E	Hosonic鸿星晶振	E3FB	26MHz	±10ppm		7.3pF
E49B8E000001AE	Hosonic鸿星晶振	E49B	8MHz	±20ppm		20pF
E49B13E0X000FE10C0	Hosonic鸿星晶振	E49B	13.560MHz	±20ppm		20PF
E49A25E00000XE10C0	Hosonic鸿星晶振	HC-49S	25M	±20ppm		20pF
E49A11E0X000AE10C0	Hosonic鸿星晶振	HC-49S	11.0592M	±20ppm		20PF
E5FA8.00000F20E22	台湾鸿星晶振	E5FA	8MHz	±20ppm		20PF
E49B4E000000VE10C0	Hosonic鸿星晶振	E49B	4MHz	±20ppm		20PF
E5FA8.00000F20E11	Hosonic鸿星晶振	E5FA	8MHz
E49B11E0X000YE10C0	Hosonic鸿星晶振	E49B	11.0592MHz	±20ppm		20pF
E49A8E00000FE10CO	Hosonic鸿星晶振	E49A	8MHz	±20ppm		20pF
E49A16E00000KE10CO	Hosonic鸿星晶振	E49A	16M	±20ppm		20pF
E49A11E0X000JE	Hosonic鸿星晶振	HC-49SA	11.0592MHz	±30ppm		20pF
E49A12E00000ME	Hosonic鸿星晶振	HC-49SA	12MHz	±30ppm		20pF
E49A16E00000ME	Hosonic鸿星晶振	HC-49SA	16MHz	±30ppm		20pF
E49A24E00000HE	Hosonic鸿星晶振	HC-49SA	24MHz	±30ppm		20pF
E49A25E00001AE	Hosonic鸿星晶振	HC-49SA	25MHz	±30ppm		20pF
E49A25E000033E	Hosonic鸿星晶振	E49A	20pF	±30ppm		20pF
E49A4E000000JE	Hosonic鸿星晶振	HC-49SA	4MHz	±30ppm		20pF
E49A7E00X0007E	Hosonic鸿星晶振	HC-49SA	7.3728MHz	±30ppm		20pF
E49A8E000001CE	Hosonic鸿星晶振	E49A				10pF
E49B10E00000TE	Hosonic鸿星晶振	E49B				10pF
E49B4E00X000ZE	Hosonic鸿星晶振	E49B				10pF
E49B8E00X000CE	Hosonic鸿星晶振	E49B				10pF
E49B9E00X0009E	Hosonic鸿星晶振	ESB	9.84375MHz	±30ppm		10pF
ESA10.0000F30C35F	Hosonic鸿星晶振	HC-49SA	10MHz	±30ppm		10pF
ESA12.0000F20B35F	Hosonic鸿星晶振	HC-49SA	12MHz	±30ppm		20pF
ESA12.0000F20E33F	Hosonic鸿星晶振	HC-49SA	12MHz	±30ppm		20pF
ESA12.0000F30D35F	Hosonic鸿星晶振	HC-49SA	12MHz	±30ppm		30pF
ESA12.000F30D55F	Hosonic鸿星晶振	HC-49SA	12MHz	±30ppm		30pF
ESA14.7456F20E33F	Hosonic鸿星晶振	HC-49SA	14.7456MHz	±30ppm		20pF
ESA16.0000F30M55F	Hosonic鸿星晶振	HC-49SA	16MHz	±30ppm		30pF
ESA18.4320F20E33F	Hosonic鸿星晶振	HC-49SA	18.432MHz	±30ppm		20pF
ESA20.0000F18M33F	Hosonic鸿星晶振	HC-49SA	20MHz	±50ppm		18pF
ESA20.0000F20E33F	Hosonic鸿星晶振	HC-49SA	20MHz	±30ppm		20pF
ESA20.0000F30M55F	Hosonic鸿星晶振	HC-49SA	20MHz	±30ppm		18pF
ESA3.68640F20E33F	Hosonic鸿星晶振	HC-49SA	3.6864MHz	±30ppm		20pF
ESA8.00000F20E33F	Hosonic鸿星晶振	HC-49SA	8MHz	±30ppm		20pF
