C7系列水晶振动子,PDI寻呼机晶振,7050mm轻薄型晶振,50MHZ石英晶体特点:

C7系列晶振提供广泛的频率

包装在坚固、高可靠性的外壳。

C7非常适合紧身板空间应用。

C7系列水晶振动子,PDI寻呼机晶振,7050mm轻薄型晶振,50MHZ石英晶体 参数表

PARAMETER					MINIMUM	MAXIMUM	UNITS
Center Frequency					8.00	70.00	MHz
Oscillation Mode damental			Fun-
Maximum Series Resistance(See Note 3)					30.0	70.0	Ohms
Frequency Stability at +25°C (See Note 2) ±50.0ppm Typ.					±10.0	±100.0	ppm
Frequency Stability Over Temperature ±50.0ppm Typ.					±10.0	±100.0	ppm
Operating Temperature Range (See Note 2)					-20	+70	°C
Storage Temperature Range					-55	+105	°C
Drive Level 100.0uW Typical					1.0uW	1.0mW
Seal Method tance Weld			Resis-
Shunt Capacitance					1.0	7.0	pF
Motional Capacitance					Customer Request
Load Capacitance					Series	40.0	pF
Aging per year					±2.0	±5.0	ppm

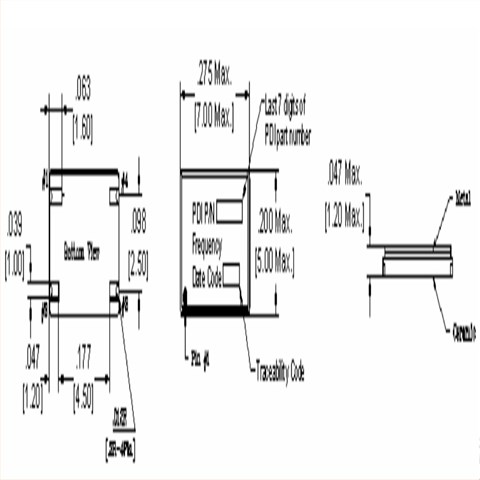

C7系列水晶振动子,PDI寻呼机晶振,7050mm轻薄型晶振,50MHZ石英晶体 尺寸图
