32.768KHZ时钟晶振,TZ2065A,2012mm小尺寸晶振,TST高质量晶振

32.768KHZ时钟晶振,TZ2065A,2012mm小尺寸晶振,TST高质量晶振,台湾嘉硕晶体,TST水晶振动子,轻薄型晶振,32.768KHZ无源晶振,音叉晶振,SMD晶体,两脚贴片晶振,2012mm小封装晶体,尺寸2.0x1.2mm,频率32.768KHZ,高可靠晶振,高性能晶振,低耗能晶振,娱乐设备晶振,微处理器时钟晶振,数字视频晶振,手表电子晶振,蓝牙晶振.

32.768KHZ时钟晶振,TZ2065A,2012mm小尺寸晶振,TST高质量晶振,台湾嘉硕晶体,TST水晶振动子,轻薄型晶振,32.768KHZ无源晶振,音叉晶振,SMD晶体,两脚贴片晶振,2012mm小封装晶体,尺寸2.0x1.2mm,频率32.768KHZ,高可靠晶振,高性能晶振,低耗能晶振,娱乐设备晶振,微处理器时钟晶振,数字视频晶振,手表电子晶振,蓝牙晶振.

32.768KHZ时钟晶振,TZ2065A,2012mm小尺寸晶振,TST高质量晶振特点:

陶瓷接缝封装

卓越的可靠性性能

超微型封装晶振

可用于表面安装技术和红外回流工艺32.768KHZ时钟晶振,TZ2065A,2012mm小尺寸晶振,TST高质量晶振 参数表

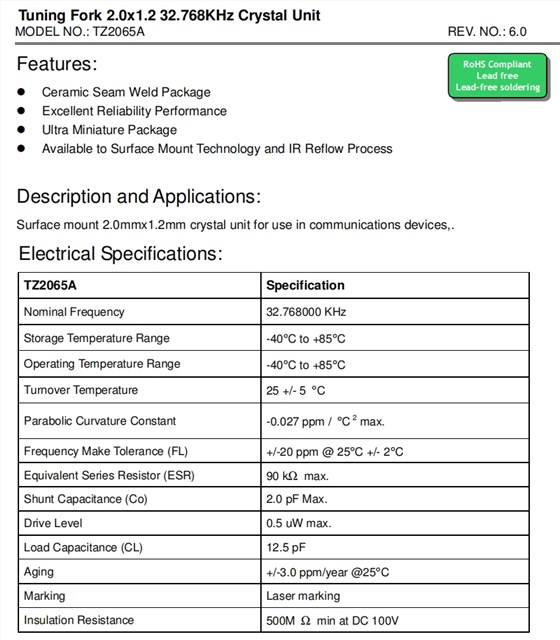

TZ2065A	Specification
NominalFrequency	32.768000KHz
Storage TemperatureRange	-40°Cto+85°C
Operating TemperatureRange	-40°Cto+85°C
Turnover Temperature	25+/-5°C
Parabolic CurvatureConstant	-0.027ppm/°C2max.
FrequencyMakeTolerance(FL)	+/-20 ppm@25°C+/-3°C
EquivalentSeriesResistor(ESR)	90 Ωmax.
Nominal DriveLevel	10uW
ShuntCapacitance(Co)	2.0 pFmax
DriveLevel	0.5uWmax.
LoadCapacitance(CL)	12.5pF
Aging	+/-3.0ppm/year@25°C
Marking	Lasermarking
InsulationResistance	500MΩmin atDC100V

32.768KHZ时钟晶振,TZ2065A,2012mm小尺寸晶振,TST高质量晶振 尺寸图
