SWS11212D16-32.768K,SWS112,1610mm,Suntsu智能手机晶振，美国进口晶振，Suntsu晶振，松图晶振，型号：SWS112，编码为：SWS11212D16-32.768K，负载电容：12.5pF，精度：±20ppm，工作温度范围：-10℃至+60℃，频率为：32.768KHz，小体积晶振尺寸：1.6x1.0mm超小型封装，两脚贴片晶振，1610晶振，石英晶振，无源晶振，石英晶体谐振器，SMD晶振，无铅晶振。具有超小型晶振，轻薄型晶振，高性能晶振，高品质等特点，被广泛应用于：通讯设备晶振，无线局域网晶振，实时时钟晶振，时钟晶振，智能手机晶振，测量仪器晶振，可穿戴设备晶振，数码电子晶振，智能家居等应用。
SWS11212D16-32.768K,SWS112,1610mm,Suntsu智能手机晶振，产品特点：
超小型尺寸：1.6x1.0mm
频率：32.768KHz时钟晶体
±20ppm（公差）可用
超小型封装，磁带和卷轴
SWS11212D16-32.768K,SWS112,1610mm,Suntsu智能手机晶振,参数表
| Electrical Parameters | Units | Minimum | Typical | Maximum | Remarks |
| Frequency Range | kHz | 32.768 | |||
| Frequency Tolerance at +25ºC | ppm | -20 | +20 | ||
| Frequency Stability vs. Aging | ppm | -3 | +3 | First year @ +25ºC. | |
| Frequency Coefficient (β) | ppm/T2 | -0.040 | -0.030 | -0.020 | |
| Operating Temperature | °C | -40 | +85 | See part numbering guide for options. | |
| Turnover Temperature | °C | +20 | +25 | +30 | |
| Storage Temperature | °C | -55 | +125 | ||
| Load Capacitance | pF | 12.5 | See part numbering guide for options. | ||
| Shunt Capacitance | pF | 1.4 | |||
| Drive Level | µW | 0.5 | |||
| Insulation Resistance | MΩ | 500 | @ 100VDC ± 15V. | ||
| Equivalent Series Resistance | kΩ | 90 |

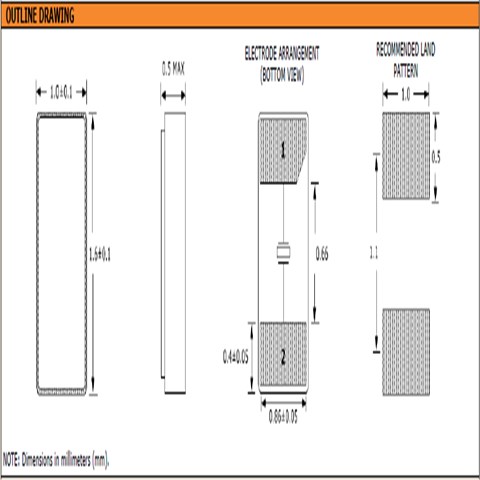

SWS11212D16-32.768K,SWS112,1610mm,Suntsu智能手机晶振,尺寸图
| 产品编码 | 石英水晶谐振器 | 负载 | 频率容差 | 工作温度 | 频率 |
| SWS10212D48-32.768K | 1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS10209D16-32.768K | 1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS10207D48-32.768K | 1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS10206D16-32.768K | 1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 6pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS11212D16-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS11212D48-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1127D48-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1129D16-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS1129D48-32.768K | 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS14412D48A-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS14412D48B-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1446D48A-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1446D48B-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS1449D48A-32.768K | 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS21212D48-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS2129F48-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±10ppm | -40℃ - +85℃ | 32.768K |
| SAW21212D4B-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +125℃ | 32.768K |
| SAW21209F4A-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±10ppm | -40℃ - +105℃ | 32.768K |
| SAW21207D58-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) 石英晶振 | 7pF | ±20ppm | -55℃ - +85℃ | 32.768K |
| SAW21206F5B-32.768K | 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal | 6pF | ±10ppm | -55℃ - +125℃ | 32.768K |
| SWS31212D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS31212D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS3126D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 6pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS3126D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS3127D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS3127D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS3129D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS3129D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS41212D16-32.768K | 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS41212D48-32.768K | 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS51212D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS5127D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS5129D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS61412D48-32.768K | 6.9X1.4 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS83412D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS83412D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS8346D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS8346D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS8347D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS8347D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ | 32.768K |
| SWS8349D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ | 32.768K |
| SWS8349D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ | 32.768K |
