Skyworks有源晶振,532AA000346DGR,6G以太网晶振,Si532差分晶振

Skyworks有源晶振,532AA000346DGR,6G以太网晶振,Si532差分晶振Skyworks有源晶振,532AA000346DGR,6G以太网晶振,Si532差分晶振

产品简介

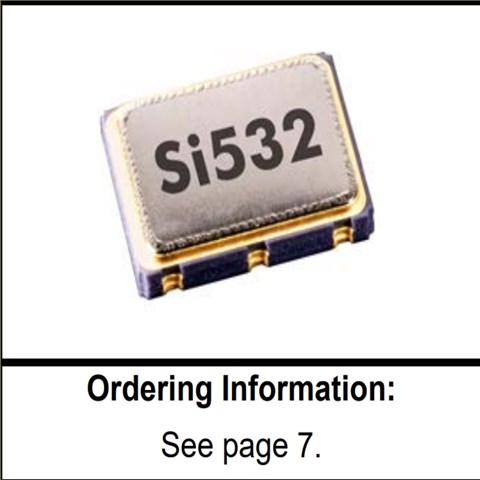

Skyworks有源晶振,532AA000346DGR,6G以太网晶振,Si532差分晶振，尺寸7.0×5.0mm，频率346MHZ，电压3.3V，支持输出LVPECL，LVPECL差分晶振，LVPECL差分晶振，有源差分晶振，差分晶体振荡器，贴片差分振荡器，小体积差分晶振，六脚贴片差分振荡器，高性能差分晶振，蓝牙模块差分晶振，网络差分晶振，视频差分晶振，测试测量差分晶振，ASIC时钟生成差分晶振，低抖动差分晶振，低电压差分晶振，低相位差分晶振。

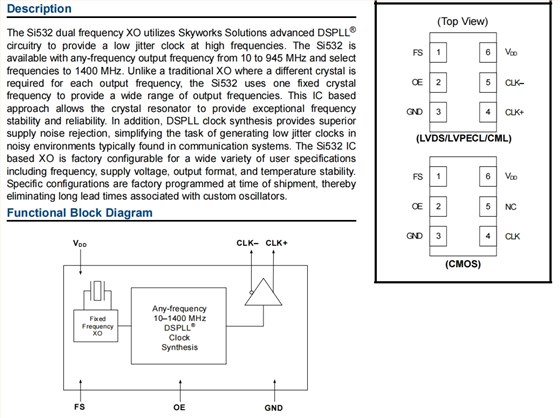

Si532双频XO采用Skyworks Solutions先进的DSPLL®电路，用于在高频下提供低抖动时钟。Si532有源晶振是可提供从10到945 MHz的任何频率输出频率，并选择频率至1400MHz。与传统的XO不同，XO使用不同的晶体对于每个输出频率，Si532使用一个固定晶体频率以提供宽范围的输出频率。产品很适合用于SONET/SDH，网络，SD/HD视频，测试和测量，时钟和数据恢复，FPGA/ASIC时钟生成等领域.Skyworks有源晶振,532AA000346DGR,6G以太网晶振,Si532差分晶振.


产品详情

1

Skyworks有源晶振,532AA000346DGR,6G以太网晶振,Si532差分晶振，尺寸7.0×5.0mm，频率346MHZ，电压3.3V，支持输出LVPECL，LVPECL差分晶振，LVPECL差分晶振，有源差分晶振，差分晶体振荡器，贴片差分振荡器，小体积差分晶振，六脚贴片差分振荡器，高性能差分晶振，蓝牙模块差分晶振，网络差分晶振，视频差分晶振，测试测量差分晶振，ASIC时钟生成差分晶振，低抖动差分晶振，低电压差分晶振，低相位差分晶振。

Si532双频XO采用Skyworks Solutions先进的DSPLL®电路，用于在高频下提供低抖动时钟。Si532有源晶振是可提供从10到945 MHz的任何频率输出频率，并选择频率至1400MHz。与传统的XO不同，XO使用不同的晶体对于每个输出频率，Si532使用一个固定晶体频率以提供宽范围的输出频率。产品很适合用于SONET/SDH，网络，SD/HD视频，测试和测量，时钟和数据恢复，FPGA/ASIC时钟生成等领域.Skyworks有源晶振,532AA000346DGR,6G以太网晶振,Si532差分晶振.2

Skyworks有源晶振,532AA000346DGR,6G以太网晶振,Si532差分晶振参数表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
1.8 V option 1.71 1.8 1.89 V
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS 		—
—
—
— 		111
99
90
81 		121
108
98
88 		mA
Tristate mode — 60 75 mA
Output Enable (OE)
and Frequency Select (FS)2 		VIH 0.75 x VDD — — V
VIL — — 0.5 V
Operating Temperature Range TA –40 — 85 ºC
Parameter Symbol Test Condition Min Typ Max Units
Nominal Frequency1,2 fO LVPECL/LVDS/CML 10 — 945 MHz
CMOS 10 — 160 MHz
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Temperature Stability1,3 –7
–20
–50

— 		+7
+20
+50 		ppm
Aging fa Frequency drift over first year — — ±3 ppm
Frequency drift over 20 year life — — ±10 ppm
Total Stability Temp stability = ±7 ppm ±20 ppm
Temp stability = ±20 ppm ±31.5 ppm
Temp stability = ±50 ppm — — ±61.5 ppm
Parameter Symbol Test Condition Min Typ Max Units
Powerup Time4 tOSC — — 10 ms
Settling Time After FS
Change 		tFRQ — — 10 ms
Parameter Symbol Test Condition Min Typ Max Units
LVPECL Output Option1 VO mid-level VDD– 1.42 — VDD– 1.25 V
VOD swing (diff) 1.1 — 1.9 VPP
VSE swing (single-ended) 0.55 — 0.95 VPP
LVDS Output Option2 VO mid-level 1.125 1.20 1.275 V
VOD swing (diff) 0.5 0.7 0.9 VPP
CML Output Option2 VO 2.5/3.3 V option mid-level — VDD– 1.30 — V
1.8 V option mid-level — VDD– 0.36 — V
VOD 2.5/3.3 V option swing (diff) 1.10 1.50 1.90 VPP
1.8 V option swing (diff) 0.35 0.425 0.50 VPP
CMOS Output Option3 VOH IOH= 32 mA 0.8 x VDD — VDD V
VOL IOL= 32 mA — — 0.4
Rise/Fall time (20/80%) tR,tF LVPECL/LVDS/CML — — 350 ps
CMOS with CL= 15 pF — 1 — ns
Symmetry (duty cycle) SYM LVPECL:
(diff)
LVDS:
CMOS: 		VDD– 1.3 V

1.25 V (diff)
VDD/2 		45 — 55 %
3

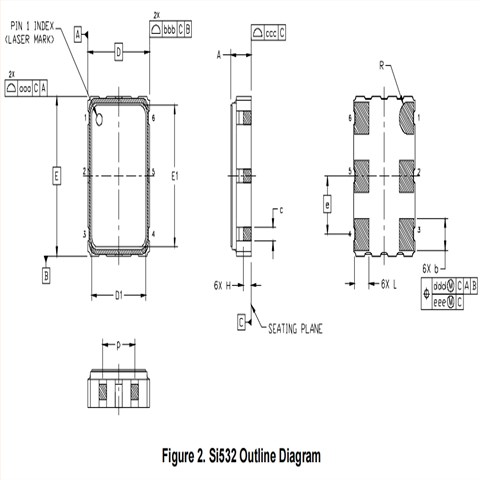

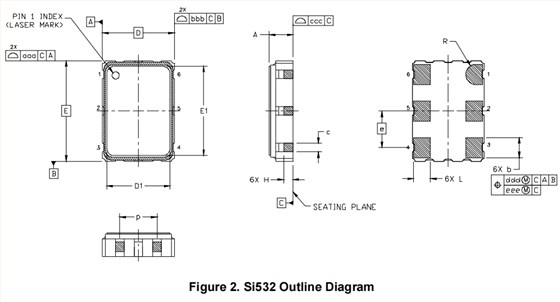

Skyworks有源晶振,532AA000346DGR,6G以太网晶振,Si532差分晶振尺寸图Si532 7050

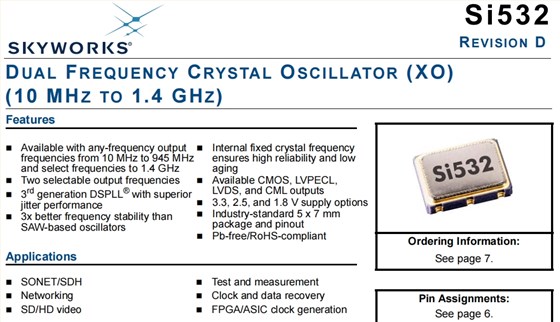

产品特性：

可用于任何频率输出

频率从10MHz到945MHz

并选择1.4 GHz的频率

两个可选输出频率

具有卓越性能的第三代DSPLL®抖动性能

频率稳定性比SAW振荡器

内部固定晶体频率

确保高可靠性和低成本变老

可用的CMOS、LVPECL、LVDS和CML输出

3.3、2.5和1.8 V电源选项

行业标准5x7mm包装和引脚

无铅/符合RoHSSi532 1

Si532 2

更多相关美国Skyworks晶振型号

Mfr Part # Mfr Description Series Frequency Output
535AC100M000DG Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVPECL Si535 100 MHz LVPECL
535AB125M000DGR Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVPECL Si535 125 MHz LVPECL
535FB125M000DG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS SMD Si535 125 MHz LVDS
535FB156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si535 156.25 MHz LVDS
535AC106M250DG Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVPECL Si535 106.25 MHz LVPECL
535BB156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si535 156.25 MHz LVDS
535AC156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si535 156.25 MHz LVPECL
535BC159M375DGR Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS
535BC312M500DGR Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si535 312.5 MHz LVDS
535FB000172DGR Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS
535FB000175DGR Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS
535FB000292DGR Skyworks有源晶振 XTAL OSC XO 161.1328MHZ LVDS SMD Si535 161.1328 MHz LVDS
535FB000305DGR Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS
535FB106M250DGR Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVDS SMD Si535 106.25 MHz LVDS
535FB150M000DGR Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS
535FB155M520DGR Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS
535FB159M375DGR Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS
535FB212M500DGR Skyworks有源晶振 XTAL OSC XO 212.5000MHZ LVDS SMD Si535 212.5 MHz LVDS
535FB312M500DGR Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si535 312.5 MHz LVDS
535FC000172DGR Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS
535FC000175DGR Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS
535FC000305DGR Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS
535FC106M250DGR Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVDS SMD Si535 106.25 MHz LVDS
535FC150M000DGR Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS
535FC155M520DGR Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS
535FC156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si535 156.25 MHz LVDS
535FC159M375DGR Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS
535FC212M500DGR Skyworks有源晶振 XTAL OSC XO 212.5000MHZ LVDS SMD Si535 212.5 MHz LVDS
535FC312M500DGR Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si535 312.5 MHz LVDS
535BB000172DGR Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS
535BB000175DGR Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS
535BB000292DGR Skyworks有源晶振 XTAL OSC XO 161.1328MHZ LVDS SMD Si535 161.1328 MHz LVDS
535BB000305DGR Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS
535BB000335DGR Skyworks有源晶振 XTAL OSC XO 156.2539MHZ LVDS SMD Si535 156.2539 MHz LVDS
535BB106M250DGR Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVDS SMD Si535 106.25 MHz LVDS
535BB150M000DGR Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS
535BB155M520DGR Skyworks差分晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS
535BB159M375DGR Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS
535BB212M500DGR Skyworks有源晶振 XTAL OSC XO 212.5000MHZ LVDS SMD Si535 212.5 MHz LVDS
535BC000172DGR Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS
535BC000175DGR Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS
535BC000292DGR Skyworks有源晶振 XTAL OSC XO 161.1328MHZ LVDS SMD Si535 161.1328 MHz LVDS
535BC000305DGR Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS
535BC150M000DGR Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS
535BC155M520DGR Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS
535BB000172DG Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS
535BB000175DG Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS
535BB000292DG Skyworks有源晶振 XTAL OSC XO 161.1328MHZ LVDS SMD Si535 161.1328 MHz LVDS
535BB000305DG Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS
535BB000335DG Skyworks有源晶振 XTAL OSC XO 156.2539MHZ LVDS SMD Si535 156.2539 MHz LVDS
535BB106M250DG Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVDS SMD Si535 106.25 MHz LVDS
535BB150M000DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS
535BB155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS
535BB159M375DG Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS
535BB212M500DG Skyworks有源晶振 XTAL OSC XO 212.5000MHZ LVDS SMD Si535 212.5 MHz LVDS
535BC000172DG Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS
535BC000175DG Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS
535BC000292DG Skyworks有源晶振 XTAL OSC XO 161.1328MHZ LVDS SMD Si535 161.1328 MHz LVDS
535BC000305DG Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS
535BC150M000DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS
535BC155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS
535BC159M375DG Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS
535BC312M500DG Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si535 312.5 MHz LVDS
535FB000172DG Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS
535FB000175DG Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS
535FB000292DG Skyworks有源晶振 XTAL OSC XO 161.1328MHZ LVDS SMD Si535 161.1328 MHz LVDS
535FB000305DG Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS
535FB106M250DG Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVDS SMD Si535 106.25 MHz LVDS
535FB150M000DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS
535FB155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS
535FB159M375DG Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS
535FB212M500DG Skyworks有源晶振 XTAL OSC XO 212.5000MHZ LVDS SMD Si535 212.5 MHz LVDS
535FB312M500DG Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si535 312.5 MHz LVDS
535FC000172DG Skyworks有源晶振 XTAL OSC XO 166.6286MHZ LVDS SMD Si535 166.6286 MHz LVDS
535FC000175DG Skyworks有源晶振 XTAL OSC XO 167.3316MHZ LVDS SMD Si535 167.3316 MHz LVDS
535FC000305DG Skyworks有源晶振 XTAL OSC XO 156.2578MHZ LVDS SMD Si535 156.2578 MHz LVDS
535FC106M250DG Skyworks有源晶振 XTAL OSC XO 106.2500MHZ LVDS SMD Si535 106.25 MHz LVDS
535FC150M000DG Skyworks有源晶振 XTAL OSC XO 150.0000MHZ LVDS SMD Si535 150 MHz LVDS
535FC155M520DG Skyworks有源晶振 XTAL OSC XO 155.5200MHZ LVDS SMD Si535 155.52 MHz LVDS
535FC156M250DG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS SMD Si535 156.25 MHz LVDS
535FC159M375DG Skyworks有源晶振 XTAL OSC XO 159.3750MHZ LVDS SMD Si535 159.375 MHz LVDS
535FC212M500DG Skyworks有源晶振 XTAL OSC XO 212.5000MHZ LVDS SMD Si535 212.5 MHz LVDS
535FC312M500DG Skyworks有源晶振 XTAL OSC XO 312.5000MHZ LVDS SMD Si535 312.5 MHz LVDS
532AA000346DGR Skyworks有源晶振 LINEAR IC'S Si532 346 MHz LVPECL
535AB000335DGR Skyworks有源晶振 XTAL OSC XO 156.2539MHZ LVPECL Si535 156.2539 MHz LVPECL
535AB100M000DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVPECL Si535 100 MHz LVPECL
535AB156M250DGR Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Si535 156.25 MHz LVPECL
535BB100M000DGR Skyworks有源晶振 XTAL OSC XO 100.0000MHZ LVDS SMD Si535 100 MHz LVDS
