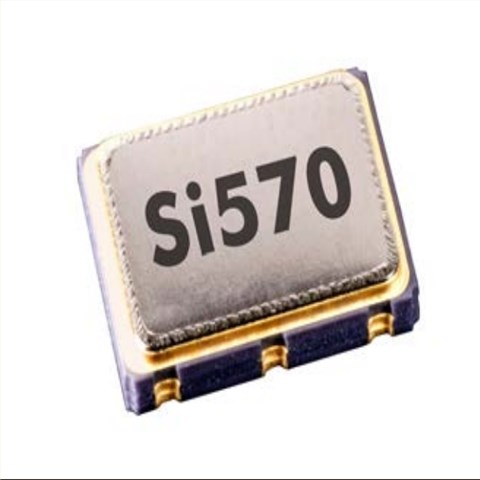

Si571低相位晶振-571BMA000121DGR-思佳讯差分振荡器-6G发射器晶振

Si571低相位晶振-571BMA000121DGR-思佳讯差分振荡器-6G发射器晶振Si571低相位晶振-571BMA000121DGR-思佳讯差分振荡器-6G发射器晶振

产品简介

Si571低相位晶振-571BMA000121DGR-思佳讯差分振荡器-6G发射器晶振，尺寸7.0×5.0mm，频率100MHZ，电压2.97V ~ 3.63V，输出逻辑 LVDS，可编程振荡器，差分晶体振荡器，压控晶体振荡器，压控差分晶振， LVDS输出晶振，7050mm压控差分晶振，100MHZ有源振荡器，有源晶体振荡器，低抖动差分晶振，低电压压控晶振，低相位压控晶振，低功耗差分晶振，低耗能差分晶振，高性能压控晶振，6G发射器差分晶振，仪器设备专用差分晶振，平板电脑差分晶振，具有高性能低抖动的特点。

Si570 XO/Si571 VCXO采用Skyworks Solutions的先进DSPLL®电路，以提供任何频率的低抖动时钟。Si570/Si571可由用户编程为10至945 MHz的任何输出频率，并可选择频率至1400MHz，分辨率<1 ppb。该设备通过I2C串行进行编程界面与传统XO/VCXO不同，传统XO/VXO压控晶振需要不同的晶体每个输出频率，Si57x使用一个固定频率晶体和一个DSPLL时钟合成IC，以提供任何频率操作。Si571低相位晶振-571BMA000121DGR-思佳讯差分振荡器-6G发射器晶振.


产品详情

1

Si571低相位晶振-571BMA000121DGR-思佳讯差分振荡器-6G发射器晶振，尺寸7.0×5.0mm，频率100MHZ，电压2.97V ~ 3.63V，输出逻辑LVDS，可编程振荡器，差分晶体振荡器，压控晶体振荡器，压控差分晶振，LVDS输出晶振，7050mm压控差分晶振，100MHZ有源振荡器，有源晶体振荡器，低抖动差分晶振，低电压压控晶振，低相位压控晶振，低功耗差分晶振，低耗能差分晶振，高性能压控晶振，6G发射器差分晶振，仪器设备专用差分晶振，平板电脑差分晶振，具有高性能低抖动的特点。

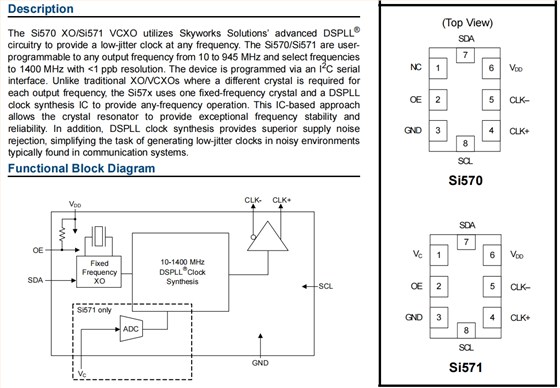

Si570 XO/Si571 VCXO采用Skyworks Solutions的先进DSPLL®电路，以提供任何频率的低抖动时钟。Si570/Si571可由用户编程为10至945 MHz的任何输出频率，并可选择频率至1400MHz，分辨率<1 ppb。该设备通过I2C串行进行编程界面与传统XO/VCXO不同，传统XO/VXO压控晶振需要不同的晶体每个输出频率，Si57x使用一个固定频率晶体和一个DSPLL时钟合成IC，以提供任何频率操作。Si571低相位晶振-571BMA000121DGR-思佳讯差分振荡器-6G发射器晶振.2

Si571低相位晶振-571BMA000121DGR-思佳讯差分振荡器-6G发射器晶振 参数表

Parameter Symbol Test Condition Min Typ Max Unit
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75
1.8 V option 1.71 1.8 1.89
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS


120
108
99
90 		130
117
108
98 		mA
TriState mode 60 75
Output Enable (OE)2,
Serial Data (SDA),
Serial Clock (SCL) 		VIH 0.75 x VDD V
VIL 0.5
Operating Temperature Range TA –40 85 ºC
Parameter Symbol Test Condition Min Typ Max Unit
Control Voltage Tuning Slope1,2,3 KV VC10 to 90% of VDD — 33
45
90
135
180
356 		— ppm/V
Control Voltage Linearity4 LVC BSL –5 ±1 +5 %
Incremental –10 ±5 +10
Modulation Bandwidth BW 9.3 10.0 10.7 kHz
VCInput Impedance ZVC 500 kΩ
Nominal Control Voltage5 VCNOM @ fO VDD/2 V
Control Voltage Tuning Range VC 0 VDD V
Parameter Symbol Test Condition Min Typ Max Unit
Programmable Frequency
Range1,2 		fO LVPECL/LVDS/CML 10 — 1417.5 MHz
CMOS 10 — 160
Temperature Stability1,3 TA= –40 to +85 ºC –7
–20
–50
–100 		—
—
—
— 		7
+20
+50
+100 		ppm
Initial Accuracy — 1.5 — ppm
Aging fa Frequency drift over first year — — ±3 ppm
Frequency drift over 20-year life — — ±10 ppm
Total Stability Temp stability = ±7 ppm ±20 ppm
Temp stability = ±20 ppm ±31.5 ppm
Temp stability = ±50 ppm — — ±61.5 ppm
Absolute Pull Range1,3 APR ±12 — ±375 ppm
Power up Time4 tOSC — — 10 ms
3

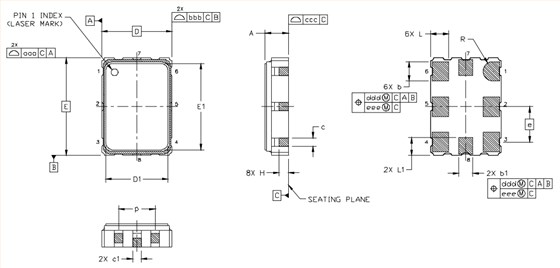

Si571低相位晶振-571BMA000121DGR-思佳讯差分振荡器-6G发射器晶振尺寸图

Si570 Si571

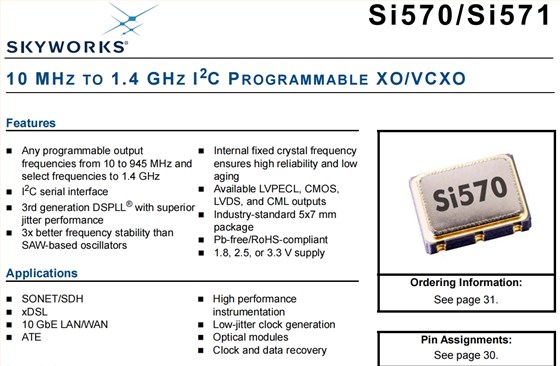

LVDS晶振产品特性：

任何可编程输出频率为10至945MHz

选择频率至1.4GHz

2C串行接口

具有卓越性能的第三代DSPLL®抖动性能

频率稳定性比SAW振荡器

内部固定晶体频率

确保高可靠性和低成本变老

可用LVPECL、CMOS、LVDS和CML输出

行业标准5x7mm包裹

无铅/符合RoHS

1.8、2.5或3.3 V电源

Si570 Si571 1Si570 Si571 2

更多相关Skyworks晶振型号

Mfr Part # Mfr Description Series Frequency Output Voltage - Supply Frequency Stability
571QEA001679DG Skyworks有源晶振 XTAL OSC VCXO 873.5150MHZ CML Si571 873.515 MHz CML 2.97V ~ 3.63V ±20ppm
571AEA000122DG Skyworks有源晶振 XTAL OSC VCXO 1.0000GHZ LVPECL Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
571AEA000122DGR Skyworks有源晶振 XTAL OSC VCXO 1.0000GHZ LVPECL Si571 1 GHz LVPECL 2.97V ~ 3.63V ±20ppm
571BMC000804DG Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BMC000804DGR Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BAA000522DG Skyworks有源晶振 XTAL OSC VCXO 545.0000MHZ LVDS Si571 545 MHz LVDS 2.97V ~ 3.63V ±100ppm
571BBA000107DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS 2.97V ~ 3.63V ±100ppm
571BBA000126DG Skyworks有源晶振 XTAL OSC VCXO 200.0000MHZ LVDS Si571 200 MHz LVDS 2.97V ~ 3.63V ±100ppm
571BFA000166DG Skyworks有源晶振 XTAL OSC VCXO 622.0800MHZ LVDS Si571 622.08 MHz LVDS 2.97V ~ 3.63V ±50ppm
571DCA000107DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CML SMD Si571 10 MHz CML 2.97V ~ 3.63V ±50ppm
571DDA000112DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CML SMD Si571 10 MHz CML 2.97V ~ 3.63V ±50ppm
571ECA000107DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVPECL Si571 10 MHz LVPECL 2.25V ~ 2.75V ±50ppm
571FCA000122DG Skyworks有源晶振 XTAL OSC VCXO 1.0000GHZ LVDS SMD Si571 1 GHz LVDS 2.25V ~ 2.75V ±50ppm
571FCA000313DG Skyworks有源晶振 XTAL OSC VCXO 300.0000MHZ LVDS振荡器 Si571 300 MHz LVDS 2.25V ~ 2.75V ±50ppm
571FCA001742DG Skyworks有源晶振 XTAL OSC VCXO 300.0000MHZ LVDS Si571 300 MHz LVDS 2.25V ~ 2.75V ±50ppm
571FDA000113DG Skyworks有源晶振 XTAL OSC VCXO 311.0400MHZ LVDS Si571 311.04 MHz LVDS 2.25V ~ 2.75V ±50ppm
571HDA001692DG Skyworks有源晶振 XTAL OSC VCXO 873.5154MHZ CML Si571 873.5154 MHz CML 2.25V ~ 2.75V ±50ppm
571KDA001063DG Skyworks有源晶振 XTAL OSC VCXO 230.4000MHZ CML Si571 230.4 MHz CML 1.71V ~ 1.89V ±50ppm
571KDA001064DG Skyworks有源晶振 XTAL OSC VCXO 589.8240MHZ CML Si571 589.824 MHz CML 1.71V ~ 1.89V ±50ppm
571MDA001661DG Skyworks有源晶振 XTAL OSC VCXO 496.685652MHZ LVPE Si571 496.685652 MHz LVPECL 2.97V ~ 3.63V ±50ppm
571NCA000107DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS 2.97V ~ 3.63V ±50ppm
571QDA001801DG Skyworks有源晶振 XTAL OSC VCXO 873.5150MHZ CML Si571 873.515 MHz CML 2.97V ~ 3.63V ±50ppm
571QDA001802DG Skyworks有源晶振 XTAL OSC VCXO 873.5150MHZ CML Si571 873.515 MHz CML 2.97V ~ 3.63V ±50ppm
571QFA000106DG Skyworks有源晶振 XTAL OSC VCXO 155.5200MHZ CML Si571 155.52 MHz CML 2.97V ~ 3.63V ±50ppm
571QFA000420DG Skyworks有源晶振 XTAL OSC VCXO 644.53125MHZ CML Si571 644.53125 MHz CML 2.97V ~ 3.63V ±50ppm
571SCA000121DG Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ LVDS Si571 100 MHz LVDS 2.25V ~ 2.75V ±50ppm
571ACA000107DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVPECL Si571 10 MHz LVPECL 2.97V ~ 3.63V ±50ppm
571ACA000112DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVPECL Si571 10 MHz LVPECL 2.97V ~ 3.63V ±50ppm
571ACA000122DG Skyworks有源晶振 XTAL OSC VCXO 1.0000GHZ LVPECL Si571 1 GHz LVPECL 2.97V ~ 3.63V ±50ppm
571ACA000141DG Skyworks有源晶振 XTAL OSC VCXO 56.3200MHZ LVPECL Si571 56.32 MHz LVPECL 2.97V ~ 3.63V ±50ppm
571ACA000148DG Skyworks有源晶振 XTAL OSC VCXO 24.5760MHZ LVPECL Si571 24.576 MHz LVPECL 2.97V ~ 3.63V ±50ppm
571ACA000206DG Skyworks有源晶振 XTAL OSC VCXO 321.4000MHZ LVPECL Si571 321.4 MHz LVPECL 2.97V ~ 3.63V ±50ppm
571ACA000209DG Skyworks有源晶振 XTAL OSC VCXO 14.1000MHZ LVPECL Si571 14.1 MHz LVPECL 2.97V ~ 3.63V ±50ppm
571ADA000107DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVPECL Si571 10 MHz LVPECL 2.97V ~ 3.63V ±50ppm
571ADA000112DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVPECL Si571 10 MHz LVPECL 2.97V ~ 3.63V ±50ppm
571ADA000382DG Skyworks有源晶振 XTAL OSC VCXO 1.3750GHZ LVPECL Si571 1.375 GHz LVPECL 2.97V ~ 3.63V ±50ppm
571ADA001549DG Skyworks有源晶振 XTAL OSC VCXO 993.409691MHZ LVPE Si571 993.409691 MHz LVPECL 2.97V ~ 3.63V ±50ppm
571ADA001841DG Skyworks有源晶振 XTAL OSC VCXO 802.5000MHZ LVPECL Si571 802.5 MHz LVPECL 2.97V ~ 3.63V ±50ppm
571AFA000122DG Skyworks有源晶振 XTAL OSC VCXO 1.0000GHZ LVPECL Si571 1 GHz LVPECL 2.97V ~ 3.63V ±50ppm
571AFA000133DG Skyworks有源晶振 XTAL OSC VCXO 500.0000MHZ LVPECL Si571 500 MHz LVPECL 2.97V ~ 3.63V ±50ppm
571BCA000107DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS 2.97V ~ 3.63V ±50ppm
571BCA000112DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS 2.97V ~ 3.63V ±50ppm
571BCA000121DG Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ LVDS Si571 100 MHz LVDS 2.97V ~ 3.63V ±50ppm
571BCA000395DG Skyworks有源晶振 XTAL OSC VCXO 904.6400MHZ LVDS Si571 904.64 MHz LVDS 2.97V ~ 3.63V ±50ppm
571BCA000675DG Skyworks有源晶振 XTAL OSC VCXO 51.8400MHZ LVDS Si571 51.84 MHz LVDS 2.97V ~ 3.63V ±50ppm
571BDA000107DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS 2.97V ~ 3.63V ±50ppm
571BDA001064DG Skyworks有源晶振 XTAL OSC VCXO 589.8240MHZ LVDS Si571 589.824 MHz LVDS 2.97V ~ 3.63V ±50ppm
571BDA001122DG Skyworks有源晶振 XTAL OSC VCXO 1.4000GHZ LVDS SMD Si571 1.4 GHz LVDS 2.97V ~ 3.63V ±50ppm
571BDA001628DG Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±50ppm
571BDA001721DG Skyworks有源晶振 XTAL OSC VCXO 830.0000MHZ LVDS Si571 830 MHz LVDS 2.97V ~ 3.63V ±50ppm
571ADA000164DG Skyworks有源晶振 XTAL OSCILLATOR Si571 400 MHz LVPECL 3.3V ±50ppm
571ADA000233DG Skyworks有源晶振 XTAL OSCILLATOR Si571 10 MHz LVPECL 3.3V ±50ppm
571ADA001971DG Skyworks有源晶振 XTAL OSCILLATOR Si571 873.51542 MHz LVPECL 3.3V ±50ppm
571ECA000112DG Skyworks有源晶振 XTAL OSCILLATOR Si571 10 MHz LVPECL 2.5V ±50ppm
571ECA000399DG Skyworks有源晶振 XTAL OSCILLATOR Si571 10 MHz LVPECL 2.5V ±50ppm
571ECA002033DG Skyworks有源晶振 XTAL OSCILLATOR Si571 10 MHz LVPECL 2.5V ±50ppm
571FFA000161DG Skyworks有源晶振 XTAL OSCILLATOR Si571 491.52 MHz LVDS 2.5V ±50ppm
571ADA000106DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si571 155.52 MHz LVPECL 3.3V ±50ppm
571ACA000106DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si571 155.52 MHz LVPECL 3.3V ±50ppm
571ADA002143DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si571 444 MHz LVPECL 3.3V ±50ppm
571BDA000115DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED I2C PR Si571 125 MHz LVDS 3.3V ±50ppm
571BDA000112DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED I2C PR Si571 10 MHz LVDS 3.3V ±50ppm
571ADA000991DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED I2C PR Si571 135 MHz LVPECL 3.3V ±50ppm
571ADA000115DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED I2C PR Si571 125 MHz LVPECL 3.3V ±50ppm
571BDA000436DG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED I2C PR Si571 10 MHz LVDS 3.3V ±50ppm
571BGA000107DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BGA000112DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BGA000121DGR Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ LVDS Si571 100 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BGA000122DGR Skyworks有源晶振 XTAL OSC VCXO 1.0000GHZ LVDS SMD Si571 1 GHz LVDS 2.97V ~ 3.63V ±20ppm
571BGA001666DGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ LVDS Si571 125 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BHA000107DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BHA000170DGR Skyworks有源晶振 XTAL OSC VCXO 915.0000MHZ LVDS Si571 915 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BHA000278DGR Skyworks有源晶振 XTAL OSC VCXO 146.5200MHZ LVDS Si571 146.52 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BJA000107DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BJA000112DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BJA000118DGR Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BJA000372DGR Skyworks有源晶振 XTAL OSC VCXO 800.0000MHZ LVDS Si571 800 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BJA001082DGR Skyworks有源晶振 XTAL OSC VCXO 320.0000MHZ LVDS Si571 320 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BJA001118DGR Skyworks有源晶振 XTAL OSC VCXO 784.247202MHZ LVDS Si571 784.247202 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BJA001898DGR Skyworks有源晶振 XTAL OSC VCXO 102.4000MHZ LVDS Si571 102.4 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BMA000107DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BMA000112DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BMA000118DGR Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BMA000121DGR Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ LVDS Si571 100 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BMA000122DGR Skyworks有源晶振 XTAL OSC VCXO 1.0000GHZ LVDS SMD Si571 1 GHz LVDS 2.97V ~ 3.63V ±20ppm
571BMA000164DGR Skyworks有源晶振 XTAL OSC VCXO 400.0000MHZ LVDS Si571 400 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BMA000179DGR Skyworks有源晶振 XTAL OSC VCXO 312.5000MHZ LVDS Si571 312.5 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BMA000788DGR Skyworks有源晶振 XTAL OSC VCXO 438.0000MHZ LVDS Si571 438 MHz LVDS 2.97V ~ 3.63V ±20ppm
571BMA000804DGR Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS 2.97V ~ 3.63V ±20ppm
571DEA000137DGR Skyworks有源晶振 XTAL OSC VCXO 1.0240GHZ CML SMD Si571 1.024 GHz CML 2.97V ~ 3.63V ±20ppm
571DEA000290DGR Skyworks有源晶振 XTAL OSC VCXO 250.0000MHZ CML Si571 250 MHz CML 2.97V ~ 3.63V ±20ppm
571DGA000112DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CML SMD Si571 10 MHz CML 2.97V ~ 3.63V ±20ppm
571DHA000107DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CML SMD Si571 10 MHz CML 2.97V ~ 3.63V ±20ppm
571DJA000112DGR Skyworks晶振 XTAL OSC VCXO 10.0000MHZ CML SMD Si571 10 MHz CML 2.97V ~ 3.63V ±20ppm
571DJA001121DGR Skyworks有源晶振 XTAL OSC VCXO 322.265625MHZ CML Si571 322.265625 MHz CML 2.97V ~ 3.63V ±20ppm
571DJA001423DGR Skyworks有源晶振 XTAL OSC VCXO 873.515418MHZ CML Si571 873.515418 MHz CML 2.97V ~ 3.63V ±20ppm
571DMA000112DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CML SMD Si571 10 MHz CML 2.97V ~ 3.63V ±20ppm
571EJA000763DGR Skyworks有源晶振 XTAL OSC VCXO 1.0900GHZ LVPECL Si571 1.09 GHz LVPECL 2.25V ~ 2.75V ±20ppm
571FGA000126DGR Skyworks有源晶振 XTAL OSC VCXO 200.0000MHZ LVDS Si571 200 MHz LVDS 2.25V ~ 2.75V ±20ppm
571FHA000103DGR Skyworks有源晶振 XTAL OSC VCXO 155.5200MHZ LVDS Si571 155.52 MHz LVDS 2.25V ~ 2.75V ±20ppm
571FJA000107DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS 2.25V ~ 2.75V ±20ppm
571FJA000466DGR Skyworks有源晶振 XTAL OSC VCXO 161.733417MHZ LVDS Si571 161.733417 MHz LVDS 2.25V ~ 2.75V ±20ppm
571FJA000741DGR Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS 2.25V ~ 2.75V ±20ppm
571FJA000742DGR Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS 2.25V ~ 2.75V ±20ppm
571FJA000743DGR Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS 2.25V ~ 2.75V ±20ppm
6
