EPSON差分振荡器,XG-2121CA智能穿戴晶振,X1M0003110010

EPSON差分振荡器,XG-2121CA智能穿戴晶振,X1M0003110010，尺寸7.0×5.0mm，频率200MHZ，输出逻辑LV-PECL，日本爱普生晶振，进口有源晶振，200MHZ差分晶振，有源差分晶振，贴片差分振荡器，差分晶体振荡器，石英差分晶振，LVPECL差分晶振，六脚差分晶振，7050mm差分振荡器，低功耗差分晶振，低电压差分晶振，低相位差分晶振，低相噪差分晶振，低抖动差分晶振，高质量差分晶振，高性能差分晶振，智能穿戴差分晶振，无线路由器差分晶振，光模块差分晶振，测试测量差分晶振，娱乐设备差分晶振，移动通信差分晶振，具有低相位相噪的特点。

有源晶振产品主要应用范围：智能穿戴，无线路由器，光模块，测试测量，娱乐设备，移动通信等应用领域。EPSON差分振荡器,XG-2121CA智能穿戴晶振,X1M0003110010.

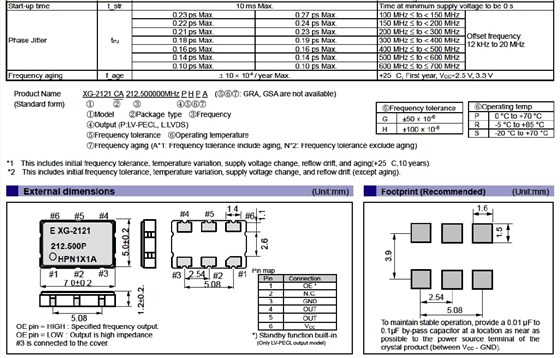

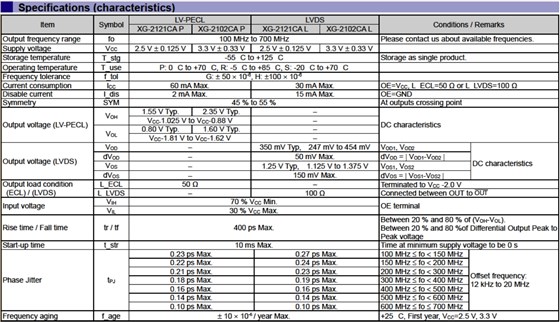

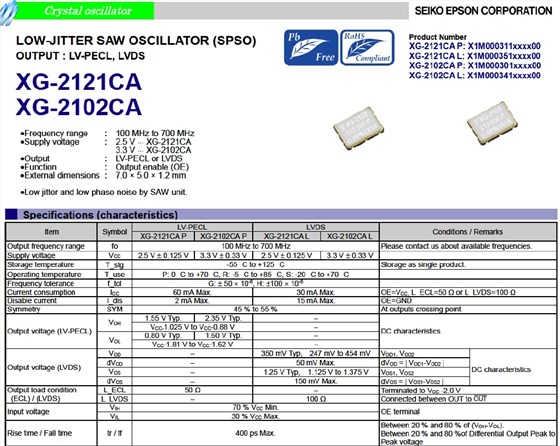

EPSON差分振荡器,XG-2121CA智能穿戴晶振,X1M0003110010参数表

XG-2102CA XG-2121CA cans

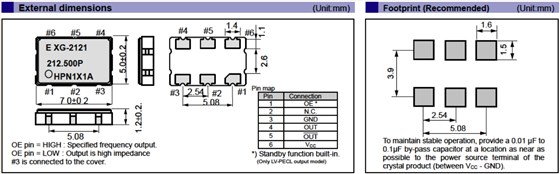

EPSON差分振荡器,XG-2121CA智能穿戴晶振,X1M0003110010 尺寸图

EPSON差分振荡器,XG-2121CA智能穿戴晶振,X1M0003110010

产品特性：

频率范围：100MHz至700MHz

电源电压：3.3 V

输出：LV-PECL晶振或LVDS

功能：输出启用（OE）

外形尺寸：7.0×5.0×1.2mm

编码	品牌	型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0045110001	爱普生晶振	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110002	爱普生晶振	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110003	爱普生晶振	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110004	爱普生晶振	SG7050EBN	106.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110005	爱普生晶振	SG7050EBN	122.880000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110007	爱普生晶振	SG7050EBN	150.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110008	爱普生晶振	SG7050EBN	155.520000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110011	爱普生晶振	SG7050EBN	114.285000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110012	爱普生晶振	SG7050EBN	156.253906 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110601	爱普生晶振	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110602	爱普生晶振	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110603	爱普生晶振	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1M0003110002	爱普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110003	爱普生晶振	XG-2121CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110004	爱普生晶振	XG-2121CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110005	爱普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110006	爱普生晶振	XG-2121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110007	爱普生晶振	XG-2121CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110008	爱普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110009	爱普生晶振	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110010	爱普生晶振	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110011	爱普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110012	爱普生晶振	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110013	爱普生晶振	XG-2121CA	500.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110014	爱普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110015	爱普生晶振	XG-2121CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110016	爱普生晶振	XG-2121CA	127.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110017	爱普生晶振	XG-2121CA	136.718750 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110018	爱普生晶振	XG-2121CA	98.304000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110020	爱普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1M0003110021	爱普生晶振	XG-2121CA	625.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110022	爱普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110023	爱普生晶振	XG-2121CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110024	爱普生晶振	XG-2121CA	161.132800 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	-5 to 85 °C
X1M0003110025	爱普生晶振	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110026	EPSON Crystal	XG-2121CA	135.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110027	爱普生晶振	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110028	爱普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110029	爱普生晶振	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110030	爱普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110031	爱普生晶振	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110032	爱普生晶振	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003110033	爱普生晶振	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.375 to 2.625 V	0 to 70 °C
X1M0003210000	爱普生晶振	XG-2103CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003210001	爱普生晶振	XG-2103CA	132.812500 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
