3215mm,Statek时钟晶体,CX11V-SCSM1-32.768K,100/I,9pF,32.768KHZ，尺寸3.2x1.5mm，频率32.768KHZ，欧美无源晶振，美国斯塔克无源晶体，32.768KHZ音叉晶体，两脚贴片晶振，水晶振动子，音叉谐振器，3215mm无源晶体，无铅环保晶振，轻薄型晶振，32.768KHz晶振，电子指示灯晶振，仪器设备晶振，数据通信晶振，计算机应用晶振，通信设备晶振，变送器专用晶振，高性能晶振，高可靠晶振，高品质晶振，低损耗晶振，低功耗晶振，低耗能晶振，具有高性能高可靠的特点。
时钟晶体产品超级适合用于电子指示灯，仪器设备，数据通信，计算机应用，通信设备，变送器等应用。3215mm,Statek时钟晶体,CX11V-SCSM1-32.768K,100/I,9pF,32.768KHZ.

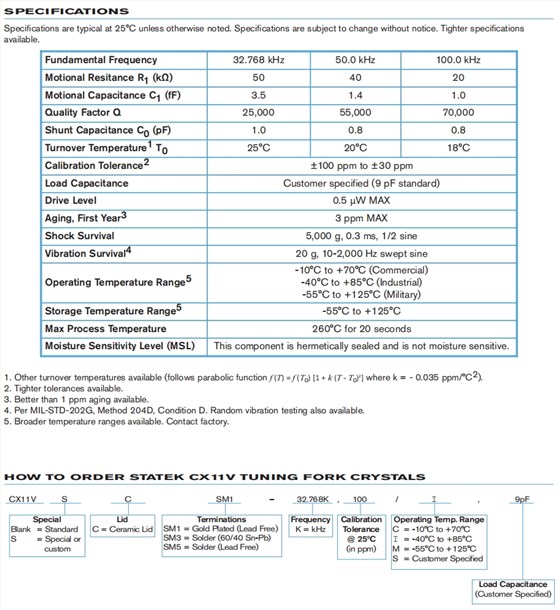

3215mm,Statek时钟晶体,CX11V-SCSM1-32.768K,100/I,9pF,32.768KHZ 参数表
| Fundamental Frequency | 32.768 kHz | 50.0 kHz | 100.0 kHz | |||||||||||||||||||||
| Motional Resitance R1 (kΩ) | 50 | 40 | 20 | |||||||||||||||||||||
| Motional Capacitance C1 (fF) | 3.5 | 1.4 | 1.0 | |||||||||||||||||||||
| Quality Factor Q | 25,000 | 55,000 | 70,000 | |||||||||||||||||||||
| Shunt Capacitance C0 (pF) | 1.0 | 0.8 | 0.8 | |||||||||||||||||||||
| Turnover Temperature1 T0 | 25°C | 20°C | 18°C | |||||||||||||||||||||
| Calibration Tolerance2 | ± 100 ppm to ±30 ppm | |||||||||||||||||||||||
| Load Capacitance | Customer specified (9 pF standard) | |||||||||||||||||||||||
| Drive Level | 0.5 µW MAX | |||||||||||||||||||||||
| Aging, First Year3 | 3 ppm MAX | |||||||||||||||||||||||
| Shock Survival | 5,000 g, 0.3 ms, 1/2 sine | |||||||||||||||||||||||
| Vibration Survival4 | 20 g, 10-2,000 Hz swept sine | |||||||||||||||||||||||
| Operating Temperature Range5 |
- 10°C to +70°C (Commercial) -40°C to +85°C (Industrial) -55°C to +125°C (Military) |
|||||||||||||||||||||||
| Storage Temperature Range5 | -55°C to +125°C | |||||||||||||||||||||||
| Max Process Temperature | 260°C for 20 seconds | |||||||||||||||||||||||
| Moisture Sensitivity Level (MSL) | This component is hermetically sealed and is not moisture sensitive. | |||||||||||||||||||||||

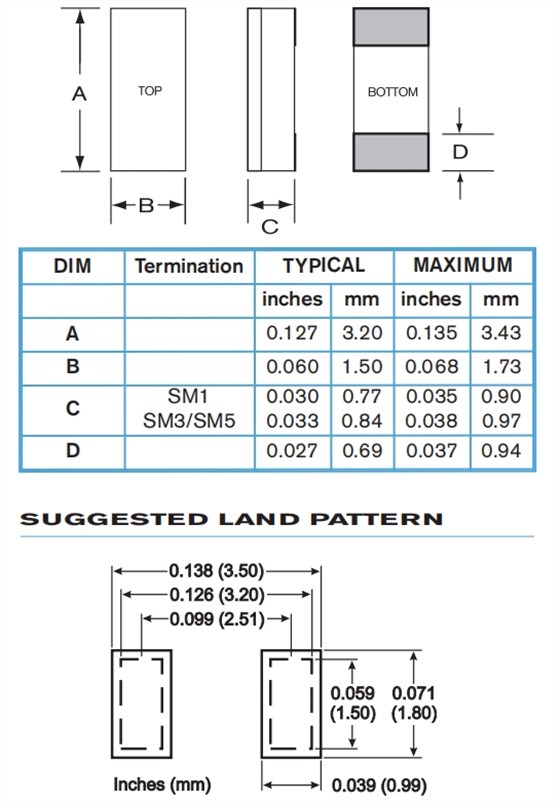

3215mm,Statek时钟晶体,CX11V-SCSM1-32.768K,100/I,9pF,32.768KHZ 尺寸图
3215mm,Statek时钟晶体,CX11V-SCSM1-32.768K,100/I,9pF,32.768KHZ

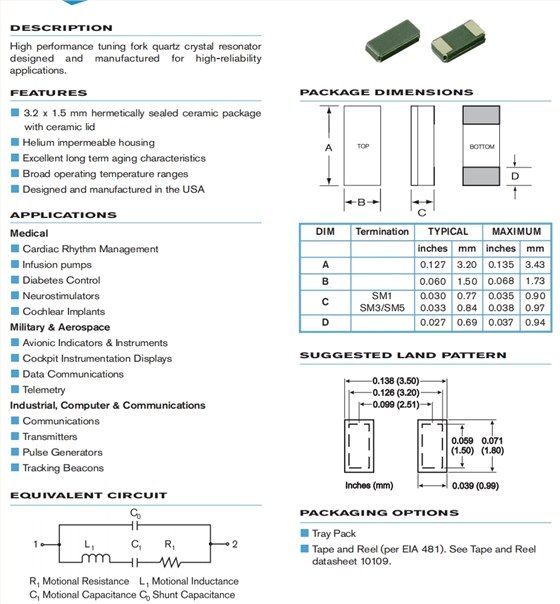

32.768K晶振产品特性：
3.2x1.5mm密封陶瓷包装
带陶瓷盖
氦气不可渗透外壳
卓越的长期老化特性
广泛的工作温度范围
在美国设计和制造
