FCD-Tech晶振 DLCV33K20FH110012.288MHZ 压控晶振 6GWIFI晶振，尺寸为20.7x13.1x5.08mm,频率为12.288MHZ，长方型钟振，压控石英晶体振荡器，荷兰有源晶振，时钟晶体振荡器，石英晶体振荡器，OSC晶振，高性能晶振，低电压晶振，低抖动晶振，音频视频应用晶振，光纤通道晶振，6GWIFI晶振，蓝牙模块晶振，DLCV是一款CMOS VCXO振荡器，采用通孔DIL14金属封装。尺寸为20.7x13.1x5.08毫米。频率范围为1.0–125.0兆赫。这种类型有许多选择，也有很宽的牵引范围。
OSC晶振产品主要应用范围：机顶盒、音频视频应用、光纤通道，6GWIFI，蓝牙模块，智能家居，无线网络，小型设备，仪器仪表等领域。FCD-Tech晶振 DLCV33K20FH110012.288MHZ 压控晶振 6GWIFI晶振.
FCD-Tech晶振 DLCV33K20FH110012.288MHZ 压控晶振 6GWIFI晶振 参数表
| Item | Specification | |||||||||||
| Frequency Range | 12.288 MHz | |||||||||||
| Output Logic | CMOS | |||||||||||
| Overall Frequency Stability *± 20 ppm ~ ± 100 ppm (see options) | ||||||||||||
| Operating Temperature Range |
0 ~ +70°C commercial application (see options) -40 ~ +85°C industrial application (see options) |
|||||||||||
| Supply Voltage Vdd | +1.8V ±5% | +2.5V ±5% | +3.3V ±5% | +5.0V ±5% | ||||||||
| Control Voltage Center+0.9 V+1.25V+1.65V+2.5V | ||||||||||||
| Control Voltage Range | 0.0V to 1.8V | 0.25V to 2.25V | 0.3V to 3.0V | 0.5V to 4.5V | ||||||||
| Supply Current Idd10 ~ 45 mA (Frequency dependent) | ||||||||||||
| Output Level | VOH ≥ 0.9 Vdd | VOL ≤ 0.1 | Vdd | |||||||||
| Output Load | 15pF | |||||||||||
| Symmetry | 45 / 55% | |||||||||||
| Rise Time / Fall Time Fr/Ff |
10 ns max (1.0 MHz ~9.99 MHz) 6ns (10.0 Mhz ~54 MHz) 4ns (54.1 Mhz ~125 MHz) |
|||||||||||
| Start-up Time | 10 ms max. | |||||||||||
| RMS Jitter ( 12 kHz to 20 MHz band )1 ps max. | ||||||||||||
| Phase Noise | -130 dBc/Hz max. at 1 | kHz offset | ||||||||||
| Frequency Pulling Range±50 ppm min.; ±100 ppm min.; ±150 ppm min.; ±200 ppm min. (See options) | ||||||||||||
| Linearity | 6% typical; 10% max. | |||||||||||
| Slope PolarityPositive (Increasing control voltage always increases output frequency) | ||||||||||||
| Modulation Bandwidth10 kHz min (-3 dB) | ||||||||||||
| Input Impedance | 1 MΩ min. | |||||||||||
| Packing Unit | 100 pcs / box | |||||||||||
| Customerspecificationsonrequest | ||||||||||||
| (*) Includes initial tolerance @+25°C, stability over operating temperature, stability vs. load change, stability vs. supply change and one year aging | ||||||||||||

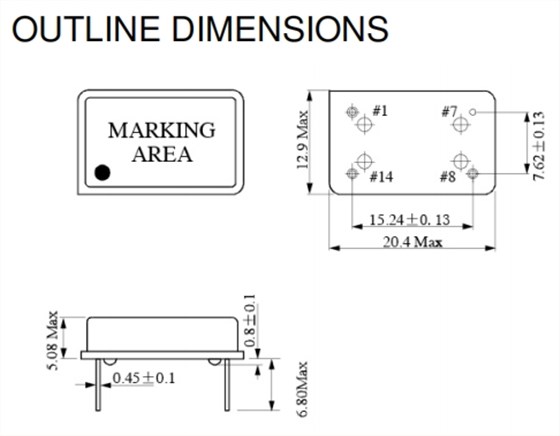

FCD-Tech晶振 DLCV33K20FH110012.288MHZ 压控晶振 6GWIFI晶振 尺寸表
压控晶振产品特征：
通孔DIL14封装
提供大频率牵引
许多选项可用
应用:机顶盒、音频视频应用、光纤通道
