德国夸克汽车应用晶振,6035mm,QTC6B20.0000FCT2I20R,20MHZ,Quarztechnik小体积晶振,夸克晶体谐振器,轻薄型晶振,石英贴片晶振,20MHZ石英晶振,6035mm石英水晶振动子,无源晶振,贴片晶振,尺寸6.0x3.5mm,频率20MHZ,负载16pF,工作温度-40~+85°C,环保晶振,低损耗晶振,高可靠晶振,测试设备晶振,无线设备晶振,汽车应用晶振.
德国夸克汽车应用晶振,6035mm,QTC6B20.0000FCT2I20R,20MHZ特点:
高度低，适用于薄型晶振
陶瓷包装和金属盖确保高可靠性
具有紧密的公差和稳定性
德国夸克汽车应用晶振,6035mm,QTC6B20.0000FCT2I20R,20MHZ 参数表
General Specifications
Frequency Range
20.000MHz
Mode of Oscillation
Fundamental
8.000 to 40.000MHz
Third Overtone
40.100 to 160.000MHz
Frenquency Tolerance at 25°C
±10 to ±30ppm (±30ppm standard)
Frequency Stability over Temperature Range
See Stability vs. Temperature Table
Storage Temperature
-55 to +125°C
Aging per Year
±3ppm max.
Load Capacitance CL
10 to 32pF and Series Resonance
Shunt Capacitance C0
7.0pF max.
Equivalent Series Resistance (ESR)
See ESR Table
Drive Level
500μW max.
Insulation Resistance (MΩ)
500 at 100Vdc ±15Vdc

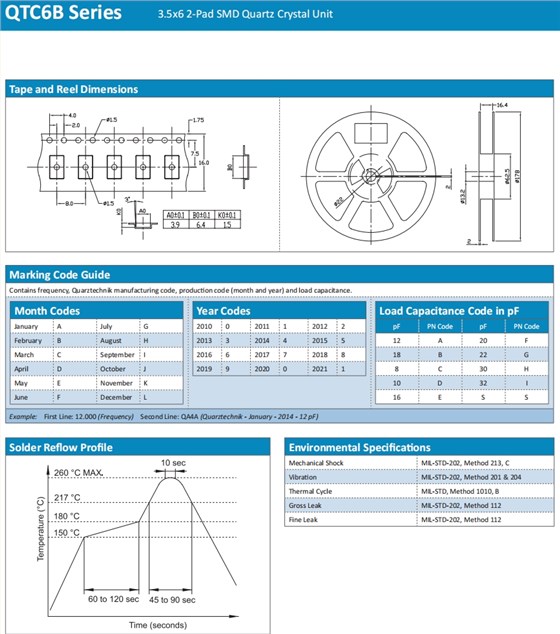

德国夸克汽车应用晶振,6035mm,QTC6B20.0000FCT2I20R,20MHZ 尺寸图
