SM8S-9-32.768K-20,Pletronics贴片晶振,3215mm,32.768KHZ音叉晶体

产品简介

SM8S-9-32.768K-20,Pletronics贴片晶振,3215mm,32.768KHZ音叉晶体,美国进口晶振,普锐特晶振,3215mm音叉晶体,水晶振动子,轻薄型晶振,32.768KHz晶振,两脚贴片晶振,SMD晶振,尺寸3.2x1.5mm,频率32.768KHZ,负载9pF,高精度晶振,高性能晶振,实时时钟晶振,RTC应用晶振,数字设备晶振,无线应用晶振,电话机晶振.

产品详情

TC-1 SM8S-9-32.768K-20,Pletronics贴片晶振,3215mm,32.768KHZ音叉晶体,美国进口晶振,普锐特晶振,3215mm音叉晶体,水晶振动子,轻薄型晶振,32.768KHz晶振,两脚贴片晶振,SMD晶振,尺寸3.2x1.5mm,频率32.768KHZ,负载9pF,高精度晶振,高性能晶振,实时时钟晶振,RTC应用晶振,数字设备晶振,无线应用晶振,电话机晶振.

SM8S-9-32.768K-20,Pletronics贴片晶振,3215mm,32.768KHZ音叉晶体特点:

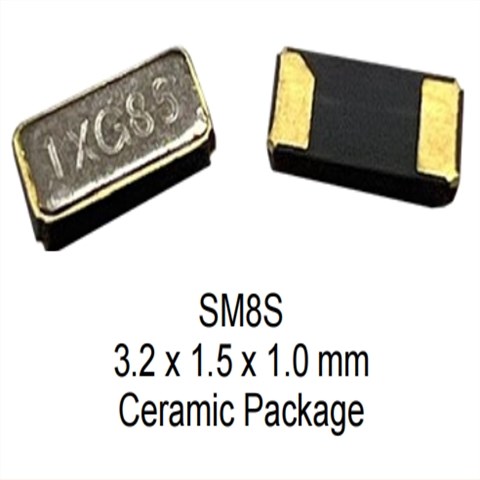

Pletronics的SM8S系列是一款微型低姿态产品表贴水晶。

包装是自动表面安装的理想选择组装和回流实践。

磁带和卷轴包装。

32.768K晶振

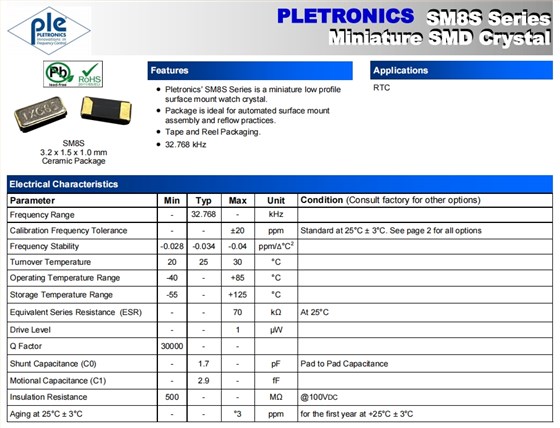

TC-2 SM8S-9-32.768K-20,Pletronics贴片晶振,3215mm,32.768KHZ音叉晶体 参数表

Parameter	Min	Typ	Max	Unit	Condition(Consult factory for other options)
Frequency Range	-	32.768	-	kHz
Calibration Frequency Tolerance	-	-	±20	ppm	Standard at 25°C ± 3°C. See page 2 for all options

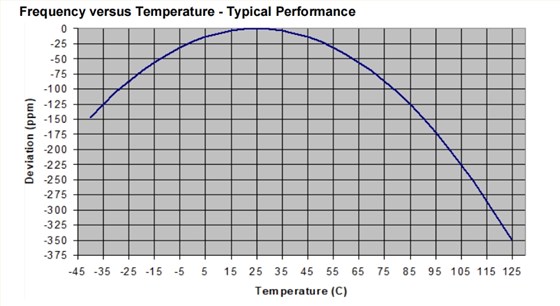

Frequency Stability	-0.028	-0.034	-0.04	ppm/Δ°C2
Turnover Temperature	20	25	30	°C
Operating Temperature Range	-40	-	+85	°C
Storage Temperature Range	-55	-	+125	°C
Equivalent Series Resistance(ESR)	-	-	70	kΩ	At 25°C
Drive Level	-	-	1	µW
Q Factor	30000	-	-
Shunt Capacitance (C0)	-	1.7	-	pF	Pad to Pad Capacitance
Motional Capacitance (C1)	-	2.9	-	fF
Insulation Resistance	500	-	-	MΩ	@100VDC
Aging at 25°C ± 3°C	-	-	°3	ppm	for the first year at +25°C ± 3°C
