CX11SCSM1-26.0M,50/50/-/I,9pF,斯塔克轻薄型晶振,26MHZ,3215mm，尺寸3.2x1.5mm，频率26MHZ，Statekcrystal，无源晶体，贴片无源晶振，SMD晶振，3215mm无源晶振，SMD晶体谐振器，26MHZ贴片晶振，绿色环保晶振，石英水晶振动子，多媒体设备晶振，娱乐设备晶振，仪器设备晶振，影音系统晶振，无线网络晶振，高质量晶振，高可靠晶振，高性能晶振，低损耗晶振，低功耗晶振，低耗能晶振，具有高性能高可靠的特点。
石英晶体产品被广泛应用各个领域之中，尤其适合用于多媒体设备，娱乐设备，仪器设备，影音系统，无线网络等应用。CX11SCSM1-26.0M,50/50/-/I,9pF,斯塔克轻薄型晶振,26MHZ,3215mm.
CX11SCSM1-26.0M,50/50/-/I,9pF,斯塔克轻薄型晶振,26MHZ,3215mm 参数表
| Fundamental Frequency | 26.0 MHz | 24.0 MHz | 155.52 MHz | |||||||||||||||||
| Motional Resistance R1(Ω) | 90 | 30 | 25 | |||||||||||||||||
| Motional Capacitance C1(fF) | 1.5 | 1.6 | 2.8 | |||||||||||||||||
| Quality Factor Q | 70,000 | 140,000 | 15,000 | |||||||||||||||||
| Shunt Capacitance C0(pF) | 0.7 | 0.7 | 1.4 | |||||||||||||||||
| Calibration Tolerance1 | ±50 ppm to ±10 ppm | |||||||||||||||||||
| Load Capacitance | Customer specified (9 pF standard) | |||||||||||||||||||
| Drive Level | 200 µW MAX | |||||||||||||||||||
| Frequency-Temperature Stability1,2,3 |
±50 ppm to ±10 ppm (Commercial) ±50 ppm to ±20 ppm (Industrial) ±50 ppm to ±30 ppm (Military) |
|||||||||||||||||||
| Aging, First Year4 | 3 ppm MAX | |||||||||||||||||||
| Shock Survival | 5,000 g, 0.3 ms,1⁄2sine | |||||||||||||||||||
| Vibration Survival5 | 20 g, 10-2,000 Hz swept sine | |||||||||||||||||||
| Operating Temperature Range3 |
-10°C to +70°C (Commercial) -40°C to +85°C (Industrial) -55°C to +125°C (Military) |
|||||||||||||||||||
| Storage Temperature Range3 | -55°C to +125°C | |||||||||||||||||||
| Max Process Temperature | 260°C for 20 seconds | |||||||||||||||||||
| Moisture Sensitivity Level (MSL) | This component is hermetically sealed and is not moisture sensitive. | |||||||||||||||||||

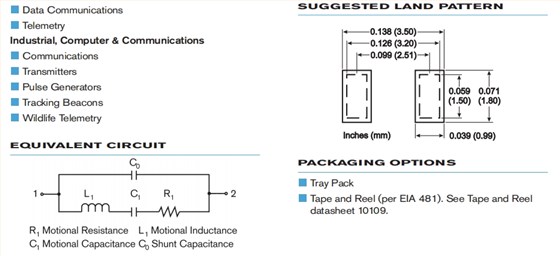

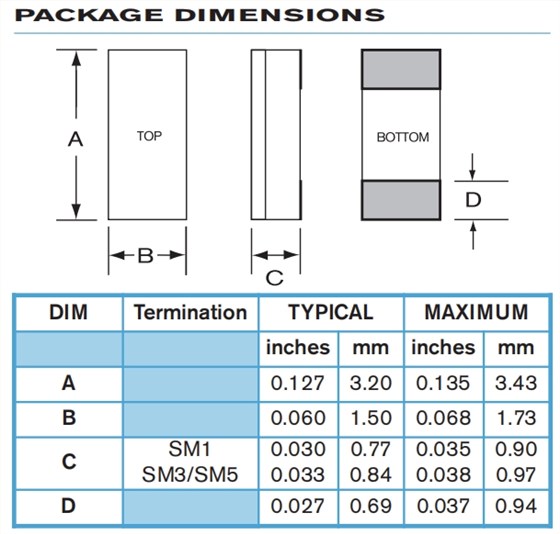

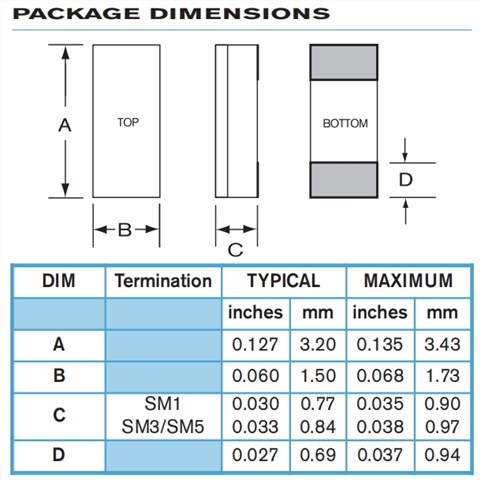

CX11SCSM1-26.0M,50/50/-/I,9pF,斯塔克轻薄型晶振,26MHZ,3215mm 尺寸图
CX11SCSM1-26.0M,50/50/-/I,9pF,斯塔克轻薄型晶振,26MHZ,3215mm

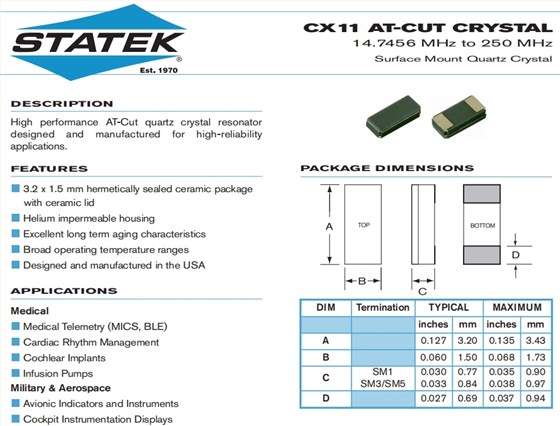

SMD晶振产品特性：
3.2x1.5mm密封陶瓷包装
带陶瓷盖
氦气不可渗透外壳
卓越的长期老化特性
广泛的工作温度范围
在美国设计和制造
