Statek通信晶振,CX16SCSM1-30.0M,30/10/-/S,6pF,2012mm,CX16,30MHZ，尺寸2.0x1.2mm，频率32.768KHZ，高性能AT切割石英晶体谐振器设计和制造具有高可靠性应用程序。2012mm无源晶振，斯塔克两脚贴片晶振，水晶振动子，石英贴片晶振，两脚无源晶振，SMD晶振，通信设备晶振，无线应用晶振，小型设备晶振，数码电子晶振，蓝牙音响晶振，低损耗晶振，低功耗晶振，低耗能晶振，高精度晶振，高性能晶振，具有高性能高精度的特点。
晶振产品很适合用于通信设备，无线应用，小型设备，数码电子，蓝牙音响等应用领域。Statek通信晶振,CX16SCSM1-30.0M,30/10/-/S,6pF,2012mm,CX16,30MHZ.
Statek通信晶振,CX16SCSM1-30.0M,30/10/-/S,6pF,2012mm,CX16,30MHZ 参数表
| Fundamental Frequency | 24.0 MHz | 32.0 MHz | 48.0 MHz | |||||||||||||||||
| Motional Resitance R1(Ω) | 45 | 45 | 30 | |||||||||||||||||
| Motional Capacitance C1(fF) | 1.6 | 1.8 | 2.3 | |||||||||||||||||
| Quality Factor Q | 90,000 | 60,000 | 50,000 | |||||||||||||||||
| Shunt Capacitance C0 (pF) | 0.7 | 0.8 | 0.8 | |||||||||||||||||
| Calibration Tolerance1 | ±50 ppm to ± 10 ppm | |||||||||||||||||||
| Load Capacitance | Customer specified (9 pF standard) | |||||||||||||||||||
| Drive Level | 100 µW MAX | |||||||||||||||||||
|
Frequency-Temperature Stability1,2,3 |
±50 ppm to ± 10 ppm (Commercial) ±50 ppm to ± 20 ppm (Industrial) ±50 ppm to ±30 ppm (Military) |
|||||||||||||||||||
| Aging, First Year4 | 3 ppm MAX | |||||||||||||||||||
| Shock Survival | 5,000 g, 0.3 ms, 1/2 sine | |||||||||||||||||||
| Vibration Survival5 | 20 g, 10-2,000 Hz swept sine | |||||||||||||||||||
| Operating Temperature Range3 |
- 10°C to +70°C (Commercial) -40°C to +85°C (Industrial) -55°C to +125°C (Military) |
|||||||||||||||||||
| Storage Temperature Range3 | -55°C to +125°C | |||||||||||||||||||
| Max Process Temperature | 260°C for 20 seconds | |||||||||||||||||||
| Moisture Sensitivity Level (MSL) | This component is hermetically sealed and is not moisture sensitive. | |||||||||||||||||||

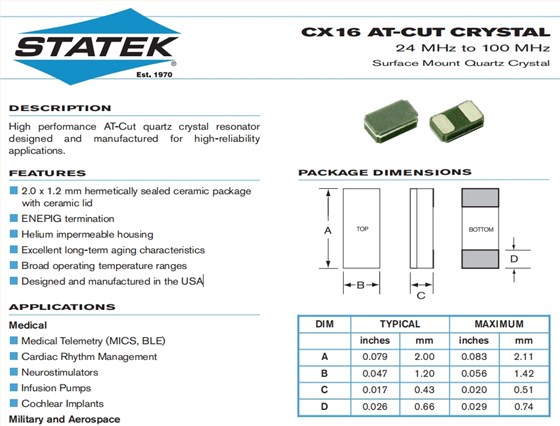

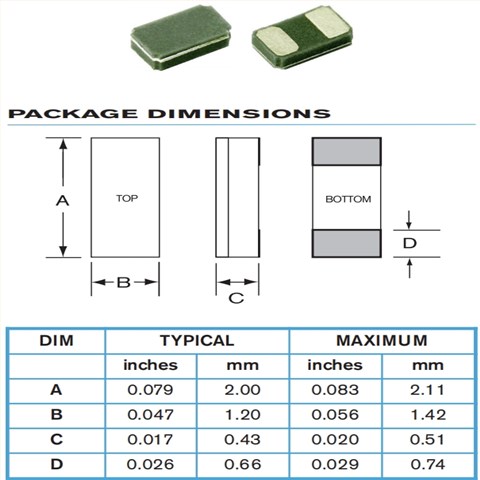

Statek通信晶振,CX16SCSM1-30.0M,30/10/-/S,6pF,2012mm,CX16,30MHZ 尺寸图
Statek通信晶振,CX16SCSM1-30.0M,30/10/-/S,6pF,2012mm,CX16,30MHZ
SMD晶振产品特性：
2.0 x 1.2mm密封陶瓷封装带陶瓷盖
ENEPIG终端
氦气不可渗透外壳
卓越的长期老化特性
广泛的工作温度范围
在美国设计和制造
