QTC5B24.0000FBT3I30R,Quarztechnik德国晶振,QTC5B系列,24MHZ,5032mm,德国进口晶振,夸克晶振,无源贴片晶振,Quarztechnik Crystal,两脚贴片晶体,5032mm无源晶振,TC5B系列薄型晶振,水晶振动子,尺寸5.0x3.2mm,频率24MHZ,高可靠晶振,无铅晶振,低功耗晶振,低损耗晶振,高品质晶振,高密度应用晶振,通信晶振,测试设备晶振,汽车应用晶振,无线应用晶振.
QTC5B24.0000FBT3I30R,Quarztechnik德国晶振,QTC5B系列,24MHZ,5032mm特点:
高度低，适用于薄型设备石英晶振
陶瓷包装和金属盖确保高可靠性
具有紧密的公差和稳定性
QTC5B24.0000FBT3I30R,Quarztechnik德国晶振,QTC5B系列,24MHZ,5032mm 参数表
| General Specifications | ||||||||||||||
| Frequency Range | 24.000MHz | |||||||||||||
| Mode of Oscillation | Fundamental | 8.000 to 52.000MHz | ||||||||||||
| Third Overtone | 40.000 to 160.000MHz | |||||||||||||
| Frenquency Tolerance at 25°C | ±10 to ±30ppm (±30ppm standard) | |||||||||||||
| Frequency Stability over Temperature Range | See Stability vs. Temperature Table | |||||||||||||
| Storage Temperature | -55 to +125°C | |||||||||||||
| Aging per Year | ±3ppm | |||||||||||||
| Load Capacitance CL | 10 to 32pF and Series Resonance | |||||||||||||
| Shunt Capacitance C0 | 7.0pF max. | |||||||||||||
| Equivalent Series Resistance (ESR) | See ESR Table | |||||||||||||
| Drive Level | 100μW typ. | |||||||||||||
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc | |||||||||||||

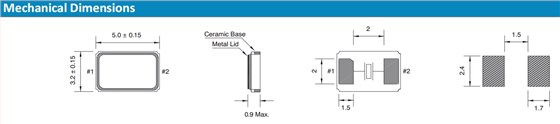

QTC5B24.0000FBT3I30R,Quarztechnik德国晶振,QTC5B系列,24MHZ,5032mm 尺寸图
