RT3215,RT3215-32.768-9-TR,Rubyquartz小体积晶振,32.768KHZ,美国卢柏晶振,轻薄型晶体,3215mm音叉晶振,32.768KHz晶振,两脚贴片晶振,SMD晶振,无源谐振器,水晶振动子,尺寸3.2x1.5mm,频率32.768KHZ,负载9pF,无铅环保晶振,低功耗晶振,低耗能晶振,高质量晶振,时钟晶振,高密度应用晶振,电话机晶振,数字显示晶振,蓝牙晶振.
RT3215,RT3215-32.768-9-TR,Rubyquartz小体积晶振,32.768KHZ特点:
适用于昼夜时钟晶体
非常适合高密度包装应用
小巧紧凑的包装
符合ROHS标准/无铅
RT3215,RT3215-32.768-9-TR,Rubyquartz小体积晶振,32.768KHZ 参数表
| NOMINAL FREQUENCY | RT3215 | |||||||||||||||||||
| NOMINAL FREQUENCY | 32.768 KHz | |||||||||||||||||||
| FREQUENCY TOLERANCE | 士20 PPM MAX AT +25℃ | |||||||||||||||||||
| TURNOVER TEMPERATURE | +25 士5℃ | |||||||||||||||||||
| TEMPERATURE COEFFICIENT | -0.04 X 10-6 / ℃2 MAX | |||||||||||||||||||
| SHUNT CAPACITANCE | 1.5PF TYP | |||||||||||||||||||
| LOAD CAPACITANCE | 12.5PF(STANDARD）, 9PF | |||||||||||||||||||
| EQUIVALENT SERIES RESISTANCE (ESR） | 80 K OHM MAX | |||||||||||||||||||
| DRIVE LEVEL | 1.0 μW MAXIMUM | |||||||||||||||||||
| OPERATING TEMPERATURE RANGE | -40℃ TO +85℃ | |||||||||||||||||||
| STORAGE TEMPERATURE RANG E | -40℃ TO +85℃ | |||||||||||||||||||
| INSULATION RESISTANCE | 500 M OHMS MIN | |||||||||||||||||||
| AGING | 士3 PPM PER YEAR | |||||||||||||||||||

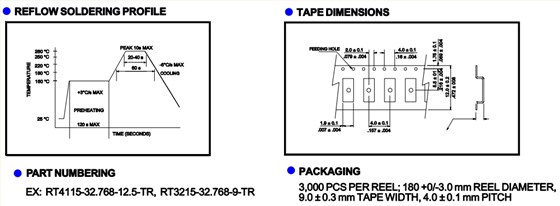

RT3215,RT3215-32.768-9-TR,Rubyquartz小体积晶振,32.768KHZ 尺寸图
