X1G0061210004,6G光模块晶振,SG2016VHN差分振荡器,EPSON爱普生晶振

X1G0061210004,6G光模块晶振,SG2016VHN差分振荡器,EPSON爱普生晶振，尺寸为2.0*1.6mm，频率为156.25MHZ，输出逻辑LVDS，LVDS有源振荡器，LVDS差分晶振，爱普生差分晶振，有源差分晶振，高性能差分晶振，差分石英晶体振荡器，OSC差分石英晶振，低电压差分振荡器，低功耗差分晶振，低相噪差分晶振，高频差分晶振，6G将使网络通信流量呈指数级增长。6G通信网络要求高速宽频带，同时把噪音降到最低。这可以通过高频率，用于通信设备的低抖动参考时钟。光通信模块为400gbps /800gbps传输超过80公里需要一个小的外形因素，±20×10-6的稳定性参考时钟。

SG2016VHN/SG2520VHN LVDS晶振是非常受欢迎的SG3225VEN系列的下一代产品具有广泛的可用频率范围，低抖动和改进的频率容限的功能组合由于采用了内部设计的具有温度补偿的集成电路，其封装尺寸缩小了63%。产品非常适合用于网络设备(路由器、交换机、光模块等），数据中心，测试和测量设备，工厂自动化，高速转换器，如ADC和DAC等领域。X1G0061210004,6G光模块晶振,SG2016VHN差分振荡器,EPSON爱普生晶振.

X1G0061210004,6G光模块晶振,SG2016VHN差分振荡器,EPSON爱普生晶振 参数表

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Maximum supply voltage

VCC

-0.3

4.0

Input voltage

Vin

-0.3

VCC+ 0.5

一一
OE/ST terminal

Storage temperature range

T_stg

-55

+125

°C

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Supply voltage

VCC

1.71

1.8

1.89

Suffix: E, Output option: A or C

2.375

2.5

2.625

Suffix: D

3.135

3.3

3.465

Suffix: C

Supply voltage

GND

0.0

Operating temperature range

T_use

-40

+25

+85

°C

Suffix: G

-40

+25

+105

°C

Suffix: H

LVDS load condition

L_LVDS

100

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

156.25

MHz

Frequency tolerance *2

f_tol

-20

+20

×10-6

Suffix: C

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 % VCC
Current consumption	ICC	-	-	25	mA	Output option: A, fo < 212 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	28	mA	Output option: A, fo≥212 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	30	mA	Output option: B, fo < 212 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	35	mA	Output option: B, fo≥212 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	25	mA	Output option: C, fo < 212 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	28	mA	Output option: C, 212 MHz≤fo < 392 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	30	mA	Output option: C, fo≥392 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	25	mA	Output option: A or C VCC= 1.8 V Typ.
Disable current	I_dis	-	-	20	mA	OE = GND
Stand-by current	I_std	-	-	30	μA	= GND, T_use Max. = +85 °C
		-	-	60	μA	= GND, T_use Max. = +105 °C
Rise time / Fall time	tr / tf	-	-	0.35	ns	20 % - 80 % of VSW
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOD	250	-	450	mV	Output option: A
		400	-	800	mV	Output option: B Not available for VCC= 1.8 V Typ.
		300	-	600	mV	Output option: C
	dVOD	-	-	50	mV	\|VOD1- VOD2\|
	VOS	1.15	-	1.35	V	VCC= 2.5 V, 3.3 V Typ.
		0.65	-	0.85	V	VCC= 1.8 V Typ.
	dVOS	-	-	50	mV	\|VOS1- VOS2\|
Differential swing	VSW	500	-	900	mV	Output option: A
		800	-	1 600	mV	Output option: B Not available for VCC= 1.8 V Typ.
		600	-	1 200	mV	Output option: C
Input voltage	VIH	70 % VCC	-	-	V	OE/terminal
	VIL	-	-	30 % VCC	V
Output disable time (OE)	tstp_oe	-	-	100	ns	Measured from the time OE pin crosses 30 % VCC
Output disable time (ST)	tstp_st	-	-	100	ns	Measured from the time pin crosses 30 % VCC
Output enable time (OE)	tsta_oe	-	-	500	ns	Measured from the time OE pin crosses 70 % VCC
Output enable time (ST)	tsta_st	-	-	10	ms	Measured from the time pin crosses 70 % VCC
Phase jitter VCC= 2.5 V, 3.3 V Typ. Offset frequency fo < 50 MHz; 12 kHz to 5 MHz fo≥50 MHz: 12 kHz to 20 MHz	tPJ	-	-	250	fs	fo < 100 MHz
		-	-	100	fs	100 MHz≤fo≤156 MHz
		-	-	60	fs	156 MHz < fo≤212 MHz
		-	-	50	fs	fo > 212 MHz
Phase jitter VCC= 1.8 V Typ. Offset frequency fo < 50 MHz: 12 kHz to 5 MHz fo≥50 MHz: 12 kHz to 20 MHz		-	-	400	fs	fo < 100 MHz
		-	-	130	fs	100 MHz≤fo≤156 MHz
		-	-	70	fs	156 MHz < fo≤212 MHz
		-	-	60	fs	fo > 212 MHz

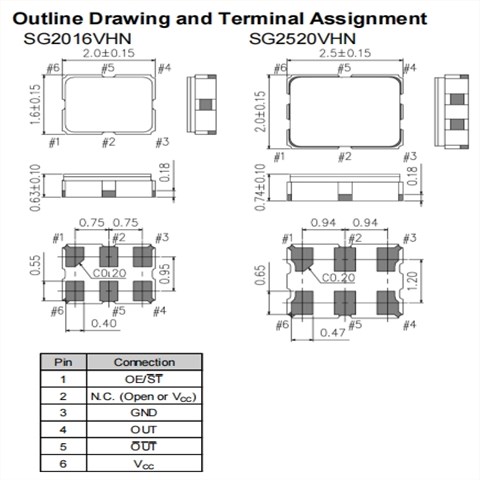

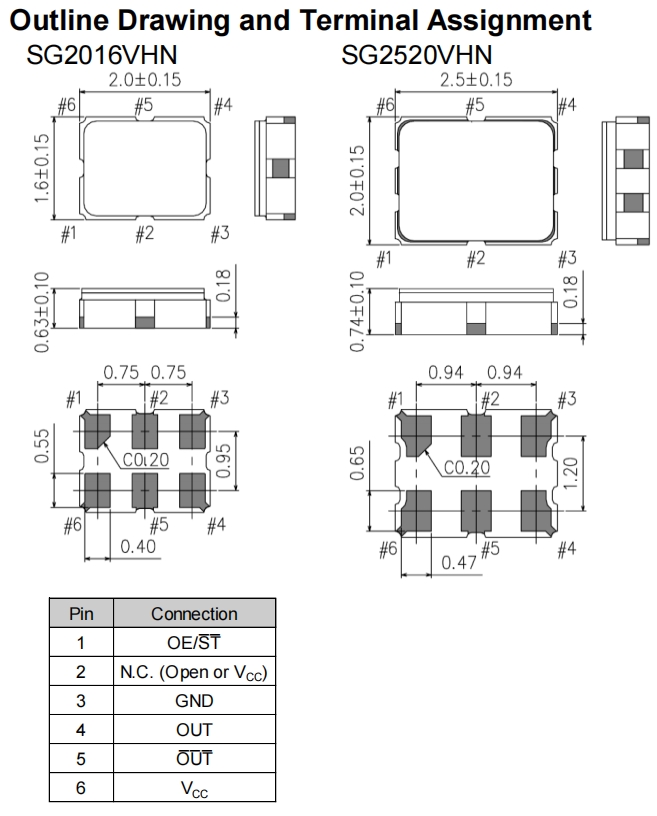

X1G0061210004,6G光模块晶振,SG2016VHN差分振荡器,EPSON爱普生晶振 尺寸表

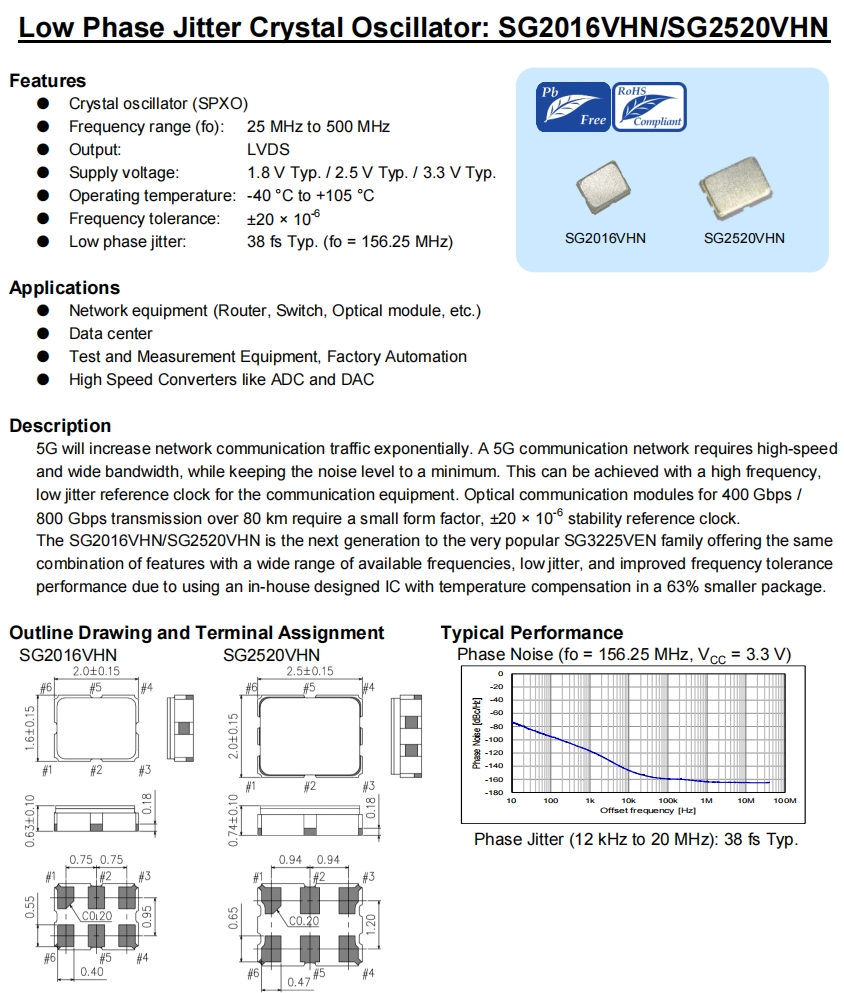

产品特性：
