SG7050EAN低损耗晶振,6G转换机晶振,爱普生差分振荡器,X1G0042910020

SG7050EAN低损耗晶振,6G转换机晶振,爱普生差分振荡器,X1G0042910020,尺寸为7.0*5.0mm，频率为125MHZ，输出逻辑LV-PECL，差分晶体振荡器，LVPECL差分晶振，有源差分晶振，贴片差分晶振，低抖动差分晶振，低损耗晶振，低电压差分晶振，光模块差分晶振，通讯模块差分振荡器，测试测量专用差分晶振，6G路由器差分晶振，网络设备差分晶振，无线电子差分晶振，高品质差分晶振，产品具有低电压低抖动高品质的特点。

晶振，作为电子产品的心脏部分，为电路提供稳定、持续的时钟信号，我们可能并不陌生。但具体细分普通晶振（单端）、差分晶振可能大家就有些分不清楚了，尤其是差分晶振。
我们所谓的单端或差分，主要是指输出模式。单端一般是CMOS、TTL电平信号，只需要一根线输出就好了，优点是走线方便，但缺点也很明显，就是抗干扰能力差，不适合高速信号（100MHZ以上）。SG7050EAN低损耗晶振,6G转换机晶振,爱普生差分振荡器,X1G0042910020.SG7050EAN低损耗晶振,6G转换机晶振,爱普生差分振荡器,X1G0042910020参数图

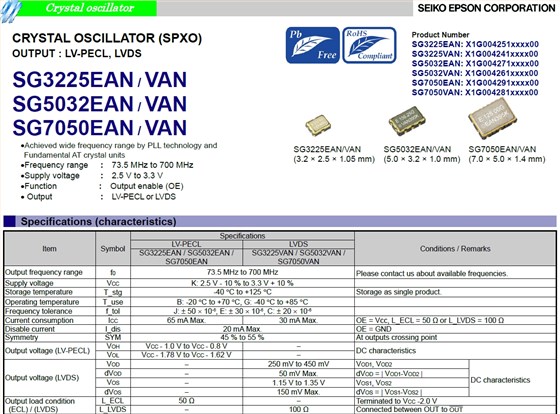

Item	Symbol	Specifications		Condition/Remarks
		LV-PECL	LVDS
		SG3225EAN SG5032EAN SG7050EAN	SG3225VAN SG5032VAN SG7050VAN
Output frequency range	f0	125 MHz		Please contact us about available frequencies.
Supply voltage	VCC	K : 2.5 V to 3.3 V		VCC= ±10%
Storage temperature	T_stg	-40 °C to +125 °C		Store as bare product.
Operating temperature	T_use	B : -20 °C to +70 °C G : -40 °C to +85 °C
Frequency tolerance	f_tol	C : ±20 × 10-6 E : ±30 × 10-6 J : ±50 × 10-6
Current consumption	ICC	65 mA Max.	30 mA Max.	OE = VCC L_ECL = 50 Ω or L_LVDS = 100 Ω f0= 700 MHz
Disable current	I_dis	20 mA Max.		OE = GND
Symmetry	SYM	45 % to 55 %		At outputs crossing point
Output voltage (LV-PECL)	VOH	VCC- 1.0 V to VCC- 0.8 V	-	DC characteristics
Output voltage (LV-PECL)	VOL	VCC- 1.78 V to VCC- 1.62 V	-	DC characteristics
Output voltage (LVDS)	VOD	-	250 mV to 450 mV	VOD1, VOD2	DC characteristics
	dVOD	-	50 mV Max.	dVOD= \| VOD1- VOD2\|
	VOS	-	1.15 V to 1.35 V	VOS1, VOS2
	dVOS	-	150 mV Max.	dVOS= \| VOS1- VOS2\|
Output load condition (ECL)/(LVDS)	L_ECL	50 Ω	-	Terminated to VCC- 2.0 V
Output load condition (ECL)/(LVDS)	L_LVDS	-	100 Ω	Connected between OUT toOUT
Input voltage	VIH	70 % VCCMin.		OE terminal
Input voltage	VIL	30 % VCCMax.		OE terminal
Rise time / Fall time	tr/tf	350 ps Max.	-	Between 20 % and 80 % of ( VOH- VOL)
Rise time / Fall time	tr/tf	-	300 ps Max.	Between 20 % and 80 %of Differential Output peak to peak voltage.
Start-up time	t_str	3 ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter	tPJ	0.6 ps Max. *1		Offset frequency : 12 kHz to 20 MHz
Frequency aging	f_aging	±5 × 10-6/ year Max.		+25 °C , VCC= 2.5 V or 3.3 V First year.

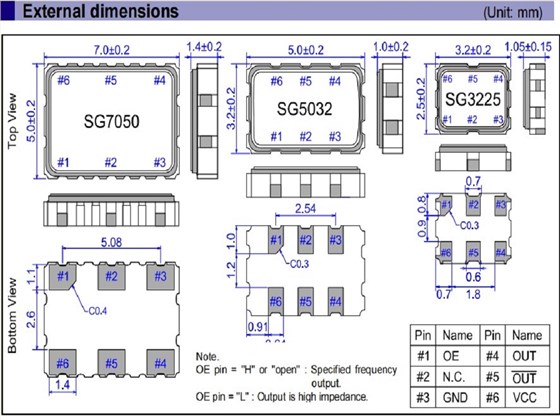

SG7050EAN低损耗晶振,6G转换机晶振,爱普生差分振荡器,X1G0042910020尺寸图

OSC晶振产品特性：

通过锁相环技术实现宽频率范围

基本AT晶体单位

频率范围:73.5MHz至700MHz

电源电压:2.5 V至3.3 V

功能:输出使能(OE)

输出:LV-PECL或LVDS
