CO2016可视化智能家居晶振,CO2016-50.000-3.3-50-T-TR,Raltron石英振荡器，尺寸2.0x1.6mm，频率50MHZ，欧美有源晶振，美国拉隆晶振，2016mm有源晶振，石英振荡子，有源贴片晶振，石英有源振荡器，石英晶体振荡器，时钟振荡器，低电压有源晶振，低耗能有源晶振，低抖动有源晶振，低相噪有源晶振，低相位有源晶振，可视化智能家居有源晶振，娱乐设备有源晶振，数字视频有源晶振，仪器仪表有源晶振，光模块有源晶振，测试设备有源晶振，具有低抖动低相位的特点。
振荡器产品可广泛应用于可视化智能家居，娱乐设备，数字视频，仪器仪表，光模块，测试设备等应用领域.CO2016可视化智能家居晶振,CO2016-50.000-3.3-50-T-TR,Raltron石英振荡器.
CO2016可视化智能家居晶振,CO2016-50.000-3.3-50-T-TR,Raltron石英振荡器 参数表
| PARAMETER | VALUE | ||||||||||||||||||
| Nominal Frequency | 50MHZ | ||||||||||||||||||
| Operating Temperature Range |
-20°C~+70°CStandard -40°C ~ +85?C Extended |
||||||||||||||||||
| Frequency Stability* | ±20 ppm, ±25 ppm, ±30 ppm, ±50 ppm | ||||||||||||||||||
| Storage Temperature Range | -55°C to +125°C | ||||||||||||||||||
| Supply Voltage (Vcc) | 1.8 V, 3.3 V, 5.0 V | ||||||||||||||||||
| Supply Current | 240 µA max | ||||||||||||||||||
|
Output CMOS |
Symmetry | 40% to 60% at 50% Vdd (45% to 55% Available) | |||||||||||||||||
| Rise / Fall Time | 200 ns max at 10% to 90% Vdd | ||||||||||||||||||
| Logic “0” Level | Vcc x 0.1 V max | ||||||||||||||||||
| Logic “1” Level | Vcc x 0.9 V min | ||||||||||||||||||
| Load | 15 pF max | ||||||||||||||||||
| Enable / Disable Function |
Pin 1: High or Open >> Output enabled Pin 3 Pin 1: Low >> Output disabled (High impedance) |
||||||||||||||||||
| Start-up Time |
10 ms max |
||||||||||||||||||

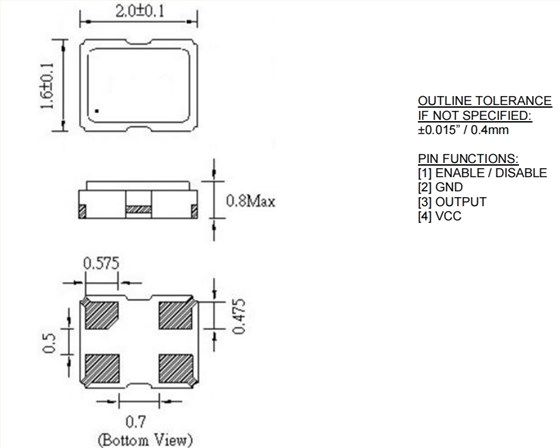

CO2016可视化智能家居晶振,CO2016-50.000-3.3-50-T-TR,Raltron石英振荡器 尺寸图
CO2016可视化智能家居晶振,CO2016-50.000-3.3-50-T-TR,Raltron石英振荡器
有源贴片晶振产品特性：
尺寸2.0x1.6mm
电压3.3V
低电压低抖动
| 元器件详情 | 包装 | Oscillator Type | Operating Frequency | Frequency Stability | Supply Voltage | Operating Temp Range |
| 袋装 | 48MHz | ±100ppm | 5V | -20°C to +70°C | ||
| CO12100-48.000 | ||||||
| Raltron | ||||||
| CO1 Series 48.0 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole HCMOS Clock Oscillator | ||||||
| 盒装 | 32MHz | ±100ppm | 5V | -40°C to +85°C | ||
| CO13100-32.000-EXT | ||||||
| Raltron | ||||||
| CO13系列32 MHz 13.21 x 13.21 mm 5 V ±100 ppm通孔时钟振荡器 | ||||||
| 管装 | 40MHz | ±100ppm | 5V | -20°C to +70°C | ||
| CO19050-40.000-T | ||||||
| Raltron | ||||||
| CO1 Series 40 MHz 5 V ±100 ppm -20°C TO +70°C Thru-Hole HCMOS Clock Oscillator | ||||||
| 卷盘 | 20MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO2016-20.000-3.3-50-T-TR | ||||||
| Raltron | ||||||
| CO2016 系列 2 x 1.6 mm 20 MHz 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 25MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO2016-25.000-3.3-50-T-TR | ||||||
| Raltron | ||||||
| CO2016系列2 x 1.6 mm 25 MHz 3.3 V ±50 ppm表面贴装时钟振荡器 | ||||||
| 卷盘 | 50MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO2016-50.000-3.3-50-T-TR | ||||||
| Raltron | ||||||
| CO2016系列2 x 1.6 mm 50 MHz 3.3 V ±50 ppm表面贴装时钟振荡器 | ||||||
| 卷盘 | 25MHz | ±20ppm | 3.3V | -40°C to +85°C | ||
| CO4302-25.000-EXT-T-T | ||||||
| Raltron | ||||||
| CO4 Series 25 MHz 3.3 V ±20 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 40MHz | ±20ppm | 3.3V | -40°C to +85°C | ||
| CO4302-40.000-T-EXT-TR | ||||||
| Raltron | ||||||
| CO43 系列 40 MHz ±20 ppm -40 至 +85°C 严格对称 标准贴装 时钟 振荡器 | ||||||
| 卷盘 | 11.184MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO43025-11.184-TR | ||||||
| Raltron | ||||||
| CO43025 系列 11.184 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 12.96MHz | ±25ppm | 3.3V | -10°C to +70°C | ||
| CO43025-12.960-TR | ||||||
| Raltron | ||||||
| CO43025系列12.960 MHz薄型5 X 7 mm 3.3 V 25 PPM表面贴装振荡器 | ||||||
| 盒装 | 14.3182MHz | ±25ppm | 3.3V | -10°C to +70°C | ||
| CO43025-14.31818-T | ||||||
| Raltron | ||||||
| CO43025 系列 14.31818 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装 振荡器 | ||||||
| 卷盘 | 14.3182MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO43025-14.31818-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 14.31818 MHz 3.3 V ±25 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 16.384MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO43025-16.384-T-TR | ||||||
| Raltron | ||||||
| CO43025 系列 16.384 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装 振荡器 | ||||||
| 卷盘 | 20MHz | ±25ppm | 3.3V | -40°C to +85°C | ||
| CO43025-20.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO43025 系列 20 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装 扩展型 振荡器 | ||||||
| 卷盘 | 24.576MHz | ±25ppm | 3.3V | -10°C to +70°C | ||
| CO43025-24.576-T-TR | ||||||
| Raltron | ||||||
| CO43 Series 24.576 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 24.704MHz | ±25ppm | 3.3V | -40°C to +85°C | ||
| CO43025-24.704-EXT-T | ||||||
| Raltron | ||||||
| CO43 Series 24.704 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 25MHz | ±25ppm | 3.3V | -10°C to +70°C | ||
| CO43025-25.000-T-TR | ||||||
| Raltron | ||||||
| CO43 Series 25 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | ||||||
| CO43025-32.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 32 MHz 3.3 V ±25 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 25MHz | ±25ppm | 3.3V | -40°C to +85°C | ||
| CO43025S-25.000-EXT-TR | ||||||
| Raltron | ||||||
| CO43025 系列 25 MHz 薄型 5 X 7 mm 3.3 V 25 PPM 表面贴装 扩展型 振荡器 | ||||||
| 卷盘 | 27MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO43025S-27.000-T-TR- L30 | ||||||
| Raltron | ||||||
| CO43 Series 27 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 1.8432MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO4305-1.8432MHZ-T | ||||||
| Raltron | ||||||
| CO43 Series 1.8432 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator |
