433系列晶体,433-52.0M-3EN-T-TS,奥斯康利时钟振荡器,7050mm特点:

1pS时的超低抖动,低功耗振荡器

待机功能,磁带和卷轴

微型外形,3.3V或5.0V可选

433系列晶体,433-52.0M-3EN-T-TS,奥斯康利时钟振荡器,7050mm 参数表

Parameter		Conditions			Characteristics				Units
Output Logic		-			HCMOS / TTL Output				-
Input Voltage (VDD)		-			3.3±10%		5.0±10%		VDC
Frequency Range (fO)		-			52				MHz
Operating		-			0 ~ +70 (Std.) / -40 ~ 85 (Option)				°C
Temperature (TOPR)
Storage Temperature		TSTG			-55 ~ +125				°C
(TSTG)
Frequency Stability		a + b + c + d			±25, ±50, ±100 max.				PPM
		(a) Frequency Tolerance			Inclusive of Overall Stability				-
		(b) Temperature Stability			Inclusive of Overall Stability (Operating				-
					Temperature)
		(c) Input Voltage Stability			Inclusive of Overall Stability (VDD ±10%)				-
		(d) Load Stability			Inclusive of Overall Stability (RL ±5%)				-
Input Current (IDD)		-			12 ~ 60 max.		25 ~ 100 max.		mA
Aging		@ 25°C			±5 max.				PPM/Y
Rise Time (TR) / Fall		-			8 max. (0.4V to 2.4V w/ TTL, 20% ~ 80%				nS
Time (TF)					/ HCMOS)
PIN 1 Tri-State		-			Option				-
Output Voltage High		TTL Load			2.4 min				VDC
"1" VOH		HCMOS Load			2.7 min.		VDD-0.5 min.
Output Voltage Low		TTL Load			0.4 max.				VDC
"0" VOL		HCMOS Load			0.5 max.
Duty Cycle		-			50 ±10 (Std.) / 50 ±5 (Option)				%
Start-Up Time (TS)		1~ 35 MHz			4 max.				mS
		35 ~ 125.000 MHz			10 max.
Jitter		(Bandwidth 12Khz ~ 20Mhz)			±1				ps RMS

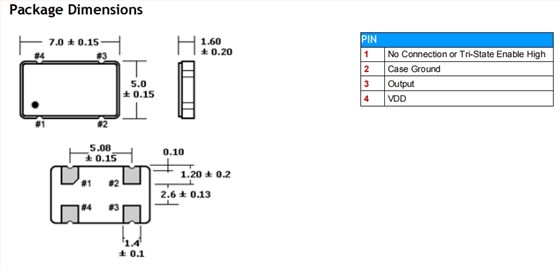

433系列晶体,433-52.0M-3EN-T-TS,奥斯康利时钟振荡器,7050mm 尺寸图
