AOCJY1-12.800MHZ-E,压控温补振荡器,艾博康晶振,6G蓝牙模块晶振

频率：12.8MHZ

尺寸：20.8x13.2x8.2mm

AOCJY1-12.800MHZ-E,压控温补振荡器,艾博康晶振,6G蓝牙模块晶振，尺寸为20.8x13.2x8.2mm,频率12.8MHZ，长方型钟振，时钟振荡器，有源晶体振荡器，进口有源晶振，OSC晶振，Abracon晶振，高性能晶振，低电压振荡器，低耗能振荡器，石英晶体振荡器，雷达系统晶振，GPS跟踪晶振，WLAN晶振，测量设备晶振。

有源晶体振荡器产品主要应用范围：细胞基础设施，雷达系统，测试和测量设备，GPS跟踪精度保持超过精度，WiMax/WLAN等领域。AOCJY1-12.800MHZ-E,压控温补振荡器,艾博康晶振,6G蓝牙模块晶振.

订购热线：0755-27838351

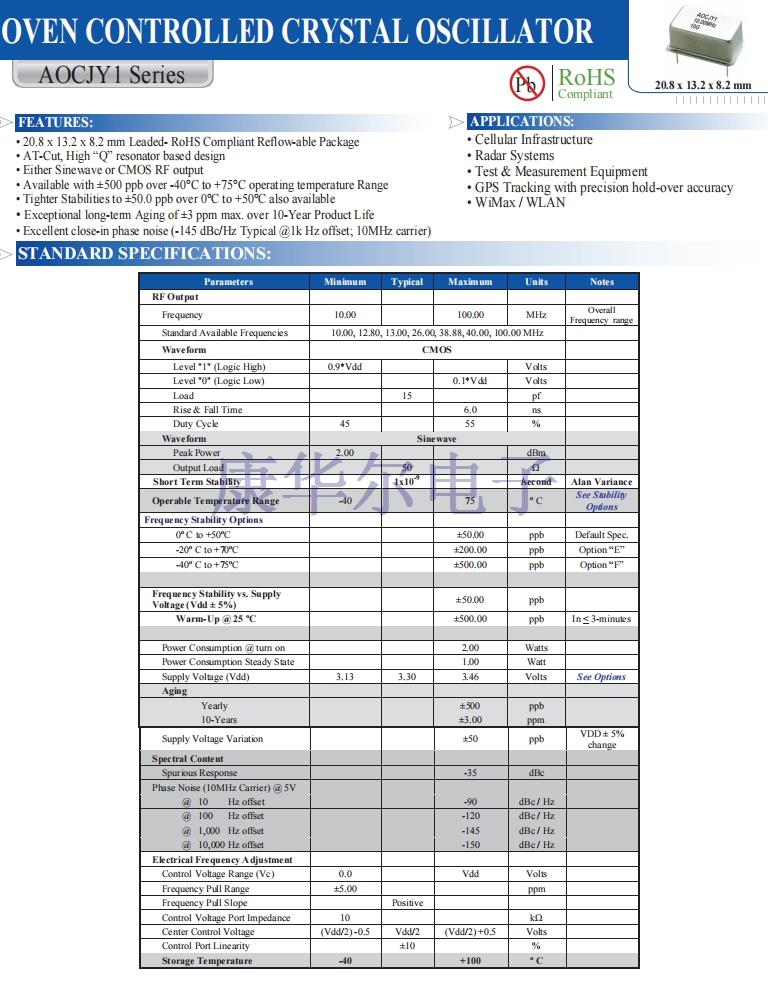

AOCJY1-12.800MHZ-E,压控温补振荡器,艾博康晶振,6G蓝牙模块晶振 参数表

Parameters	Minimum	Typical	Maximum	Units	Notes
RF Output
Frequency	10		100	MHz	Overall Frequency range
Standard Available Frequencies	10.00, 12.80, 13.00, 26.00, 38.88, 40.00, 100.00MHz
Waveform	CMOS
Level "1" (Logic High)	0.9*Vdd			Volts
Level "0" (Logic Low)			0. 1*Vdd	Volts
Load		15		pf
Rise &Fall Time			6	ns
Duty Cycle	45		55	%
Waveform	Sinewave
Peak Power	2			Bm
Output Load		50		Ω
Short Term Stability		1x10-9		/second	Alan Variance
Operable Temperature Range	-40		75	ºC	See Stability Options
Frequency Stability Options
0ºC to +50ºC			±50.00	ppb	Default Spec.
-20ºC to +70ºC			±200.00	ppb	Option “E”
-40ºC to +75ºC			±500.00	ppb	Option “F”

Frequency Stability vs. Supply Voltage (Vdd ± 5%)			±50.00	ppb
Warm-Up @ 25 ºC			±500.00	ppb	In < 3-minutes

Power Consumption @turn on			2	Watts
Power Consumption Steady State			1	Watt
Supply Voltage (Vdd)	3. 13	3.3	3.46	Volts	See Options
Aging
Yearly			±500	ppb
10-Years			±3.00	ppm
Supply Voltage Variation			±50	ppb	VDD ± 5% change
Spectral Content
Spurious Response			-35	dBc
Phase Noise ( 10MHz Carrier) @ 5V
@ 10 Hz offset			-90	dBc / Hz
@ 100 Hz offset			- 120	dBc / Hz
@ 1,000 Hz offset			- 145	dBc / Hz
@ 10,000Hz offset			- 150	dBc / Hz
Electrical Frequency Adjustment
Control Voltage Range (Vc)	0		Vdd	Volts
Frequency Pull Range	±5.00			ppm
Frequency Pull Slope		Positive
Control Voltage Port Impedance	10			Ω
Center Control Voltage	(Vdd/2) -0.5	Vdd/2	(Vdd/2) +0.5	Volts
Control Port Linearity		± 10		%
Storage Temperature	-40		100	º C

AOCJY1-12.800MHZ-E,压控温补振荡器,艾博康晶振,6G蓝牙模块晶振 尺寸

石英晶体振荡器产品特征：

20.8 x 13.2 x 8.2毫米铅-符合RoHS回流封装

AT-Cut，基于高“Q”谐振器的设计

正弦波或CMOS射频输出

可提供±500 ppb在-40°C至+75°C的工作温度范围

也可在0°C至+50°C范围内达到±50.0 ppb的更强稳定性

卓越的长期老化±3ppm最大值。产品寿命超过10年

出色的近相噪声(-145 dBc/Hz);10 mhz载体)
