FY2500117,25.000MHz,百利通亚陶晶振,5032mm,-40~85°C

频率：25MHz

尺寸：5.0 x3.2mm

FY2500117,25.000MHz,百利通亚陶晶振,5032mm,-40~85°C，FY2500117晶振,频率25.000MHz,百利通亚陶晶振,5032mm晶振,工作温度-40~85°C,石英晶体谐振器,进口SMD晶振,接收器晶振,无线局域网晶振,全球定位系统晶振,手持电脑晶振,便携式多媒体设备晶振,硬盘晶振.

订购热线：0755-27838351

FY2500117,25.000MHz,百利通亚陶晶振,5032mm,-40~85°C，FY2500117晶振,频率25.000MHz,百利通亚陶晶振,5032mm晶振,工作温度-40~85°C,石英晶体谐振器,进口SMD晶振,接收器晶振,无线局域网晶振,全球定位系统晶振,手持电脑晶振,便携式多媒体设备晶振,硬盘晶振.

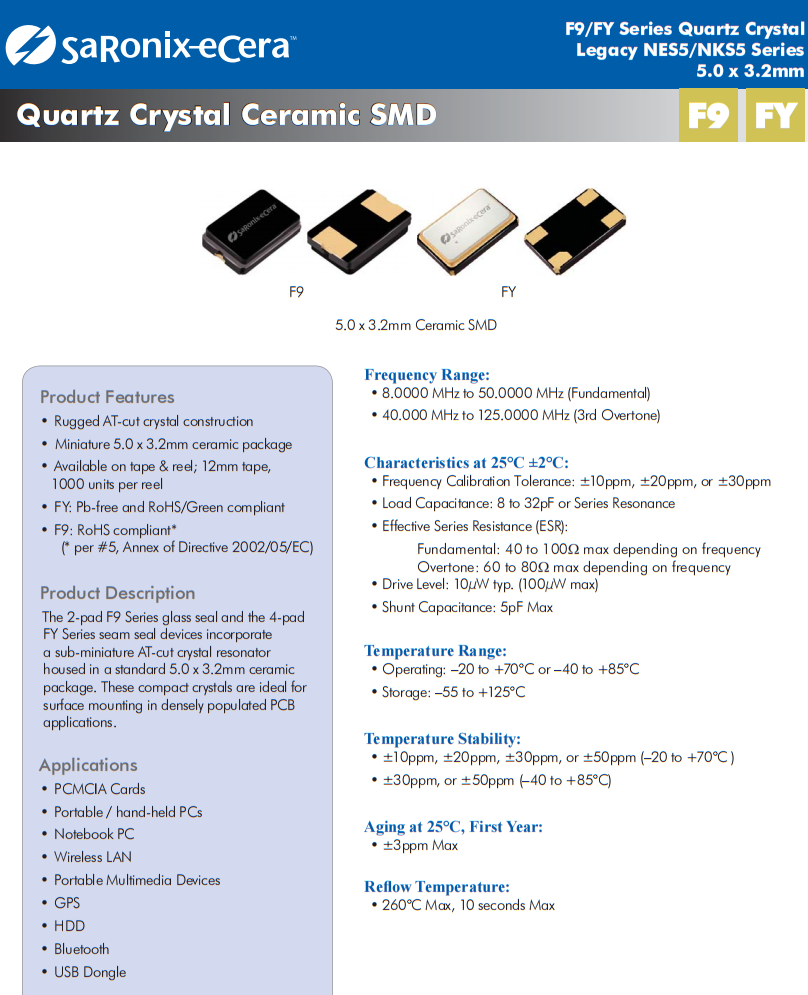

FY2500117,25.000MHz,百利通亚陶晶振,5032mm,-40~85°C 产品特性

•坚固的at切割晶体结构

•微型5.0 x 3.2mm陶瓷包装

•可在磁带和卷轴;12毫米磁带,每卷1000支

•FY系列接缝密封装置在标准的5.0 x 3.2mm集成电路封装年龄中,其密封速率低于最小孔径的AT-cut晶体,这些紧凑的晶体是理想的表面贴装在密集的流行,而不是印刷电路板应用程序。

•FY：无铅,符合RoHS/绿色标准 F9：符合RoHS标准

FY2500117,25.000MHz,百利通亚陶晶振,5032mm,-40~85°C，参数图

项目			数值
频率			25MHz
工作温度			-40°C to +85°C
保存温度			-55°C to +125°C
频率公差 @ +25°C			± 20PPM
频率稳定性 ( ref. to +25°C)			± 20PPM
等效串联电阻(R1)			50 Ω
负载电容 (CL)			18 pF
并联电容（CO）			5pf Max
激励功率			100 μW Max
老化 @ +25°C			±3ppm Max

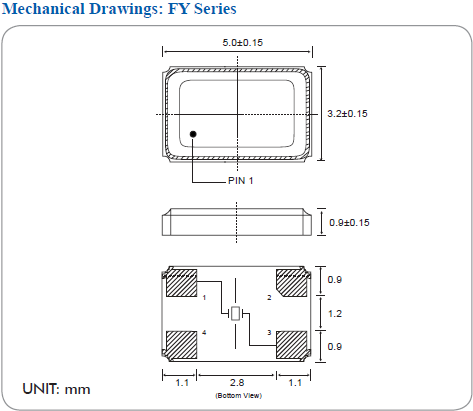

FY2500117,25.000MHz,百利通亚陶晶振,5032mm,-40~85°C，尺寸图

制造商零件编号	制造商	系列	频率	频率稳定性	频率容差	负载电容	ESR（等效串联电阻）	工作温度
FY2500117	Diodes 晶振	FY	25 MHz	±20ppm	±20ppm	18pF	50 Ohms	-40°C ~ 85°C
FY0800018	Diodes 晶振	FY	8 MHz	±30ppm	±30ppm	18pF	100 Ohms	-40°C ~ 85°C
FY2400053	Diodes 晶振	FY	24 MHz	±10ppm	±10ppm	8pF	50 Ohms	-20°C ~ 70°C
FY2500016	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	18pF	30 Ohms	-20°C ~ 70°C
FY0800027	Diodes 晶振	FY	8 MHz	±20ppm	±20ppm	18pF	100 Ohms	-20°C ~ 70°C
FY0800057Q	Diodes 晶振	FY	8 MHz	±50ppm	±20ppm	20pF	80 Ohms	-40°C ~ 125°C
FY1000009	Diodes 晶振	FY	10 MHz	±30ppm	±30ppm	20pF	60 Ohms	-40°C ~ 85°C
FY1000020	Diodes 晶振	FY	10 MHz	±10ppm	±10ppm	10pF	80 Ohms	-20°C ~ 70°C
FY1600069Q	Diodes 晶振	FY	16 MHz	±20ppm	±20ppm	20pF	50 Ohms	-40°C ~ 85°C
FY1200011	Diodes 晶振	FY	12 MHz	±30ppm	±20ppm	18pF	60 Ohms	-20°C ~ 70°C
FY2500068	Diodes 晶振	FY	25 MHz	±10ppm	±10ppm	10pF	50 Ohms	-10°C ~ 70°C
FY2500115	Diodes 晶振	FY	25 MHz	±10ppm	±10ppm	8pF	50 Ohms	-20°C ~ 70°C
F90800021	Diodes 晶振	F9	8 MHz	±30ppm	±20ppm	18pF	100 Ohms	-40°C ~ 85°C
FY1600101	Diodes 晶振	FY	16 MHz	±20ppm	±10ppm	18pF	50 Ohms	-40°C ~ 85°C
FY2000032	Diodes 晶振	FY	20 MHz	±50ppm	±30ppm	18pF	50 Ohms	-40°C ~ 85°C
FY2500165	Diodes 晶振	FY	25 MHz	±25ppm	±20ppm	14pF	30 Ohms	-40°C ~ 105°C
FY0800056	Diodes 晶振	FY	8 MHz	±30ppm	±20ppm	20pF	80 Ohms	-40°C ~ 85°C
FY2500133Q	Diodes 晶振	FY	25 MHz	±20ppm	±20ppm	20pF	40 Ohms	-40°C ~ 85°C
FY2000064Q	Diodes 晶振	FY	20 MHz	±10ppm	±10ppm	18pF	50 Ohms	-20°C ~ 70°C
FY1000014	Diodes 晶振	FY	10 MHz	±20ppm	±20ppm	18pF	80 Ohms	-20°C ~ 70°C
FY1020003	Diodes 晶振	FY	10.24 MHz	±30ppm	±30ppm	20pF	100 Ohms	-20°C ~ 70°C
FY1030001	Diodes 晶振	FY	10.368 MHz	±10ppm	±10ppm	10pF	50 Ohms	-10°C ~ 70°C
FY1030003	Diodes 晶振	FY	10.368 MHz	±8ppm	±10ppm	12pF	60 Ohms	-10°C ~ 60°C
FY1100007	Diodes 晶振	FY	11.0592 MHz	±20ppm	±10ppm	10pF	80 Ohms	-40°C ~ 85°C
FY1100009	Diodes 晶振	FY	11.0592 MHz	±50ppm	±50ppm	12pF	80 Ohms	-40°C ~ 85°C
FY1100010	Diodes 晶振	FY	11.0592 MHz	±10ppm	±10ppm	20pF	80 Ohms	-20°C ~ 70°C
FY1100014	Diodes 晶振	FY	11.0592 MHz	±30ppm	±30ppm	20pF	80 Ohms	-40°C ~ 85°C
FY1120011	Diodes 晶振	FY	11.2896 MHz	±30ppm	±30ppm	15pF	60 Ohms	-20°C ~ 70°C
FY1200078	Diodes 晶振	FY	12 MHz	±30ppm	±30ppm	12pF	60 Ohms	-20°C ~ 70°C
FY1200084	Diodes 晶振	FY	12 MHz	±30ppm	±30ppm	18pF	60 Ohms	-20°C ~ 70°C
FY1200086	Diodes 晶振	FY	12 MHz	±20ppm	±20ppm	20pF	60 Ohms	-20°C ~ 70°C
FY1200089	Diodes 晶振	FY	12 MHz	±10ppm	±10ppm	20pF	50 Ohms	-20°C ~ 70°C
FY1200101	Diodes 晶振	FY	12 MHz	±30ppm	±30ppm	20pF	50 Ohms	-10°C ~ 85°C
FY1200106	Diodes 晶振	FY	12 MHz	±30ppm	±30ppm	12pF	70 Ohms	-40°C ~ 85°C
FY1200108	Diodes 晶振	FY	12 MHz	±20ppm	±20ppm	12pF	40 Ohms	-20°C ~ 70°C
FY1200112	Diodes 晶振	FY	12 MHz	±15ppm	±10ppm	18pF	70 Ohms	-40°C ~ 85°C
FY1200119	Diodes 晶振	FY	12 MHz	±30ppm	±30ppm	20pF	60 Ohms	-20°C ~ 70°C
FY1200125	Diodes 晶振	FY	12 MHz	±50ppm	±30ppm	18pF	70 Ohms	-40°C ~ 105°C
FY1200126	Diodes 晶振	FY	12 MHz	±50ppm	±30ppm	18pF	80 Ohms	-20°C ~ 105°C
FY1200127	Diodes 晶振	FY	12 MHz	±20ppm	±20ppm	20pF	50 Ohms	-40°C ~ 85°C
FY1200129	Diodes 晶振	FY	12 MHz	±20ppm	±20ppm	18pF	50 Ohms	-40°C ~ 85°C
FY1220016	Diodes 晶振	FY	12.288 MHz	±30ppm	±30ppm	20pF	70 Ohms	-20°C ~ 70°C
FY1250002	Diodes 晶振	FY	12.5 MHz	±50ppm	±50ppm	16pF	60 Ohms	-40°C ~ 85°C
FY1350029	Diodes 晶振	FY	13.56 MHz	±10ppm	±10ppm	12pF	60 Ohms	-20°C ~ 70°C
FY1380008	Diodes 晶振	FY	13.824 MHz	±20ppm	±20ppm	20pF	60 Ohms	-20°C ~ 70°C
FY1430037	Diodes 晶振	FY	14.31818 MHz	±30ppm	±30ppm	18pF	50 Ohms	-40°C ~ 85°C
FY1430046	Diodes 晶振	FY	14.318 MHz	±30ppm	±30ppm	20pF	60 Ohms	-20°C ~ 70°C
FY1430047	Diodes 晶振	FY	14.31818 MHz	±30ppm	±30ppm	8pF	50 Ohms	-40°C ~ 85°C
FY1430051	Diodes 晶振	FY	14.31818 MHz	±20ppm	±20ppm	16pF	50 Ohms	-40°C ~ 85°C
FY1600055	Diodes 晶振	FY	16 MHz	±20ppm	±20ppm	12pF	50 Ohms	-20°C ~ 70°C
FY1600066	Diodes 晶振	FY	16 MHz	±20ppm	±20ppm	10pF	50 Ohms	-20°C ~ 70°C
FY1600068	Diodes 晶振	FY	16 MHz	±100ppm	±100ppm	12pF	50 Ohms	-40°C ~ 105°C
FY1600088	Diodes 晶振	FY	16 MHz	±30ppm	±30ppm	30pF	50 Ohms	-40°C ~ 85°C
FY1630014	Diodes 晶振	FY	16.384 MHz	±30ppm	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
FY1840017	Diodes 晶振	FY	18.432 MHz	±30ppm	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
FY1920015	Diodes 晶振	FY	19.2 MHz	±10ppm	±10ppm	10pF	50 Ohms	-20°C ~ 70°C
FY1920016	Diodes 晶振	FY	19.2 MHz	±20ppm	±20ppm	18pF	50 Ohms	-20°C ~ 70°C
FY2000035	Diodes 晶振	FY	20 MHz	±30ppm	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
FY2000039	Diodes 晶振	FY	20 MHz	±30ppm	±30ppm	16pF	60 Ohms	-40°C ~ 85°C
FY2000052	Diodes 晶振	FY	20 MHz	±10ppm	±10ppm	18pF	40 Ohms	0°C ~ 90°C
FY2000056	Diodes 晶振	FY	20 MHz	±50ppm	±20ppm	18pF	50 Ohms	-20°C ~ 105°C
FY2210004	Diodes 晶振	FY	22.1184 MHz	±30ppm	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
FY2250003	Diodes 晶振	FY	22.5792 MHz	±30ppm	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
FY2400041	Diodes 晶振	FY	24 MHz	±20ppm	±20ppm	18pF	50 Ohms	-20°C ~ 70°C
FY2400043	Diodes 晶振	FY	24 MHz	±20ppm	±15ppm	20pF	50 Ohms	-40°C ~ 85°C
FY2400044	Diodes 晶振	FY	24 MHz	±30ppm	±30ppm	10pF	40 Ohms	-20°C ~ 70°C
FY2400045	Diodes 晶振	FY	24 MHz	±30ppm	±30ppm	20pF	40 Ohms	-20°C ~ 70°C
FY2400049	Diodes 晶振	FY	24 MHz	±50ppm	±50ppm	10pF	40 Ohms	0°C ~ 70°C
FY2400052	Diodes 晶振	FY	24 MHz	±25ppm	±10ppm	18pF	50 Ohms	-40°C ~ 85°C
FY2400054	Diodes 晶振	FY	24 MHz	±30ppm	±30ppm	18pF	50 Ohms	-40°C ~ 85°C
FY2400056	Diodes 晶振	FY	24 MHz	±25ppm	±10ppm	16pF	50 Ohms	-40°C ~ 85°C
FY2400064	Diodes 晶振	FY	24 MHz	±10ppm	±10ppm	10pF	50 Ohms	-20°C ~ 70°C
FY2400065Z	Diodes 晶振	FY	24 MHz	±50ppm	±30ppm	20pF	50 Ohms	-20°C ~ 70°C
FY2400070	Diodes 晶振	FY	24 MHz	±10ppm	±10ppm	10pF	50 Ohms	-30°C ~ 85°C
FY2400071	Diodes 晶振	FY	24 MHz	±15ppm	±10ppm	10pF	50 Ohms	-40°C ~ 85°C
FY2500006	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	12pF	50 Ohms	-20°C ~ 70°C
FY2500046	Diodes 晶振	FY	25 MHz	±20ppm	±20ppm	20pF	50 Ohms	-30°C ~ 85°C
FY2500047	Diodes 晶振	FY	25 MHz	±30ppm	±30ppm	20pF	40 Ohms	-20°C ~ 70°C
