SG2520VGN低相位抖动晶振,X1G005901000300,EPSON超小型晶振
频率：156.250000 MHz
尺寸：2.5x2.0x0.84mm
SG2520VGN低相位抖动晶振,X1G005901000300,EPSON超小型晶振，日本进口晶振，EPSON爱普生晶振型号：SG2520VGN，编码为：X1G005901000300，频率：156.250000 MHz，小体积晶振尺寸：2.5x2.0x0.84mm封装，六脚贴片晶振，LVDS输出差分晶振，SPXO石英晶体振荡器，石英晶振，有源晶振。6G将以指数级的方式增加网络通信流量。6G通信网络需要高速和宽带宽，同时最小化噪声。这将通过一个高频、低抖动参考时钟来实现的通信设备，其中将使用小尺寸光学模块。SG2520VGN是非常流行的SG3225VEN系列的下一代，提供相同的功能组合，由于使用内部设计的IC和改进的频率容忍性能。具有超小型，轻薄型，低抖动，低功耗晶振，低电源电压，低耗能，低损耗，低相位噪声等特点。贴片晶振应用于：网络设备（路由器、交换机、光模块等），数据中心，测试和测量设备，工厂自动化，高速转换器，ADC和DAC，光纤通道，服务器、存储、无线网络、OTN等。

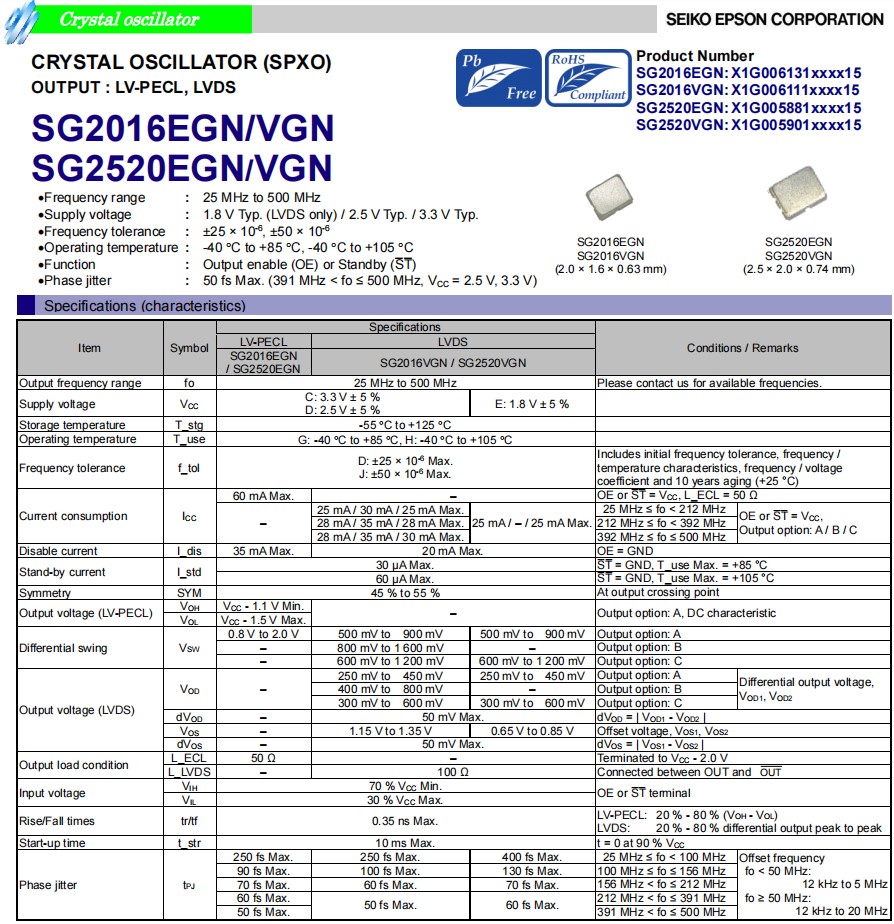

SG2520VGN低相位抖动晶振,X1G005901000300,EPSON超小型晶振 参数表
Item
Symbol
Specifications
LV-PECL
LVDS
Conditions / Remarks
SG2016EGN
SG2016VGN / SG2520VGN
/ SG2520EGN
Output frequency range
fo
156.250MHz
Please contact us for available frequencies.
Supply voltage
VCC
C: 3.3 V ± 5 % D: 2.5 V ± 5 %
E: 1.8 V ± 5 %
Storage temperature
T_stg
-55℃ to +125℃
Operating temperature
T_use
G: -40℃ to +85℃, H: -40℃ to +105℃
Frequency tolerance
f_tol
D: ±25 × 10-6 Max. J: ±50 × 10-6 Max.
Includes initial frequency tolerance, frequency /
temperature characteristics, frequency / voltage coefficient and 10 years aging (+25℃)
Current consumption
60 mA Max.
–
OE or ST = VCC, L_ECL = 50 Ω
ICC
25 mA / 30 mA / 25 mA Max.
25 mA / – / 25 mA Max.
25 MHz ≤ fo < 212 MHz
OE or ST = VCC, Output option: A / B / C
–
28 mA / 35 mA / 28 mA Max.
212 MHz ≤ fo < 392 MHz
28 mA / 35 mA / 30 mA Max.
392 MHz ≤ fo ≤ 500 MHz
Disable current
I_dis
35 mA Max.
20 mA Max.
OE = GND
Stand-by current
I_std
30 μA Max.
ST = GND, T_use Max. = +85℃
60 μA Max.
ST = GND, T_use Max. = +105℃
Symmetry
SYM
45 % to 55 %
At output crossing point
Output voltage (LV-PECL)
VOH
VCC - 1.1 V Min.
–
Output option: A, DC characteristic
VOL
VCC - 1.5 V Max.
Differential swing
VSW
0.8 V to 2.0 V
500 mV to 900 mV
500 mV to 900 mV
Output option: A
–
800 mV to 1 600 mV
–
Output option: B
–
600 mV to 1 200 mV
600 mV to 1 200 mV
Output option: C
VOD
250 mV to 450 mV
250 mV to 450 mV
Output option: A
Differential output voltage, VOD1, VOD2
Output voltage (LVDS)
–
400 mV to 800 mV
–
Output option: B
300 mV to 600 mV
300 mV to 600 mV
Output option: C
dVOD
–
50 mV Max.
dVOD = | VOD1 - VOD2 |
VOS
–
1.15 V to 1.35 V
0.65 V to 0.85 V
Offset voltage, VOS1, VOS2
dVOS
–
50 mV Max.
dVOS = | VOS1 - VOS2 |
Output load condition
L_ECL
50 Ω
–
Terminated to VCC - 2.0 V
L_LVDS
–
100 Ω
Connected between OUT and OUT
Input voltage
VIH
70 % VCC Min.
OE or ST terminal
VIL
30 % VCC Max.
Rise/Fall times
tr/tf
0.35 ns Max.
LV-PECL: 20 % - 80 % (VOH - VOL)
LVDS: 20 % - 80 % differential output peak to peak
Start-up time
t_str
10 ms Max.
t = 0 at 90 % VCC
Phase jitter
tPJ
250 fs Max.
250 fs Max.
400 fs Max.
25 MHz ≤ fo < 100 MHz
Offset frequency
90 fs Max.
100 fs Max.
130 fs Max.
100 MHz ≤ fo ≤ 156 MHz
fo < 50 MHz:
70 fs Max.
60 fs Max.
70 fs Max.
156 MHz < fo ≤ 212 MHz
12 kHz to 5 MHz
60 fs Max.
50 fs Max.
60 fs Max.
212 MHz < fo ≤ 391 MHz
fo ≥ 50 MHz:
50 fs Max.
391 MHz < fo ≤ 500 MHz
12 kHz to 20 MHz

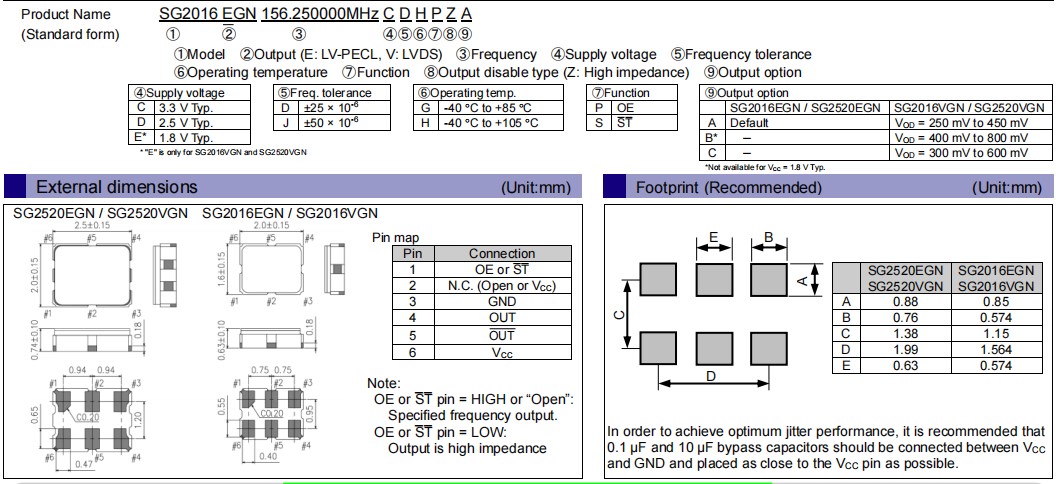

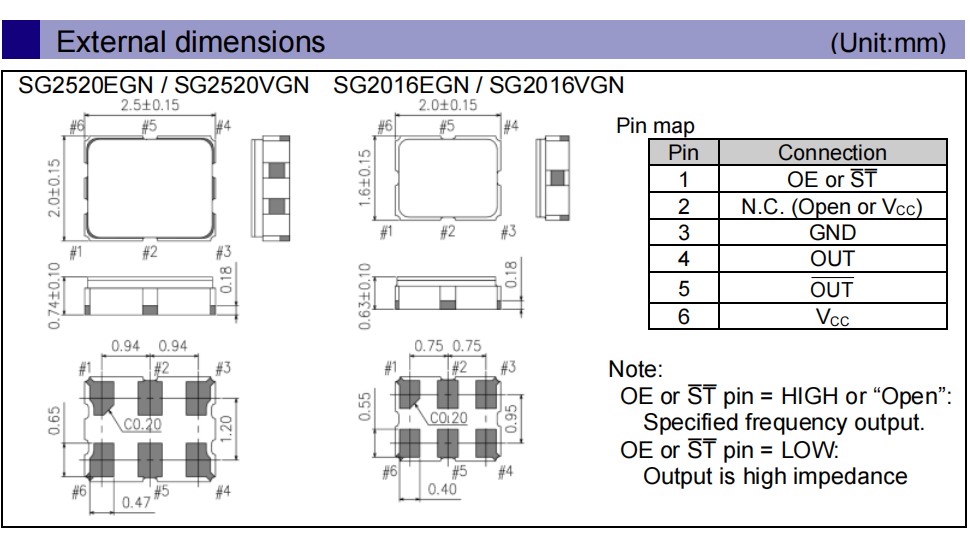

SG2520VGN低相位抖动晶振,X1G005901000300,EPSON超小型晶振 尺寸图
SG2520VGN低相位抖动晶振,X1G005901000300,EPSON超小型晶振
产品特点：
小型尺寸：2.5x2.0x0.84mm
石英晶体振荡器（SPXO）
频率范围（fo）：25MHz至500MHz
输出：LVDS
电源电压：1.8V Typ，/ 2.5V Typ，/ 3.3V Typ
工作温度： -40°C至+105°C
低相位抖动： 38 fs Typ。（fo = 156.25 MHz）
