FOX福克斯晶振,3225mm,FC3BABCVI45.0,45MHZ,FC3BA晶体

频率：45MHZ

尺寸：3.2x2.5mm

FOX福克斯晶振,3225mm,FC3BABCVI45.0,45MHZ,FC3BA晶体,欧美进口晶振,进口无源晶振,福克斯小尺寸晶振,石英晶体谐振器,石英SMD晶体,四脚贴片晶振,SMD晶振,3225晶体谐振器,水晶振动子,45MHZ无源晶振,尺寸3.2x2.5mm,频率45MHZ,负载7pF,高稳定性晶振,高性能晶振,无铅晶振,汽车级晶振,数码电子晶振,移动设备晶振,小家电晶振.

订购热线：0755-27838351

TC-1

FOX福克斯晶振,3225mm,FC3BABCVI45.0,45MHZ,FC3BA晶体特点:

AEC Q200合格

IATF-16949 QMS

公差低至±10PPM

石英晶体稳定性低至±20PPM

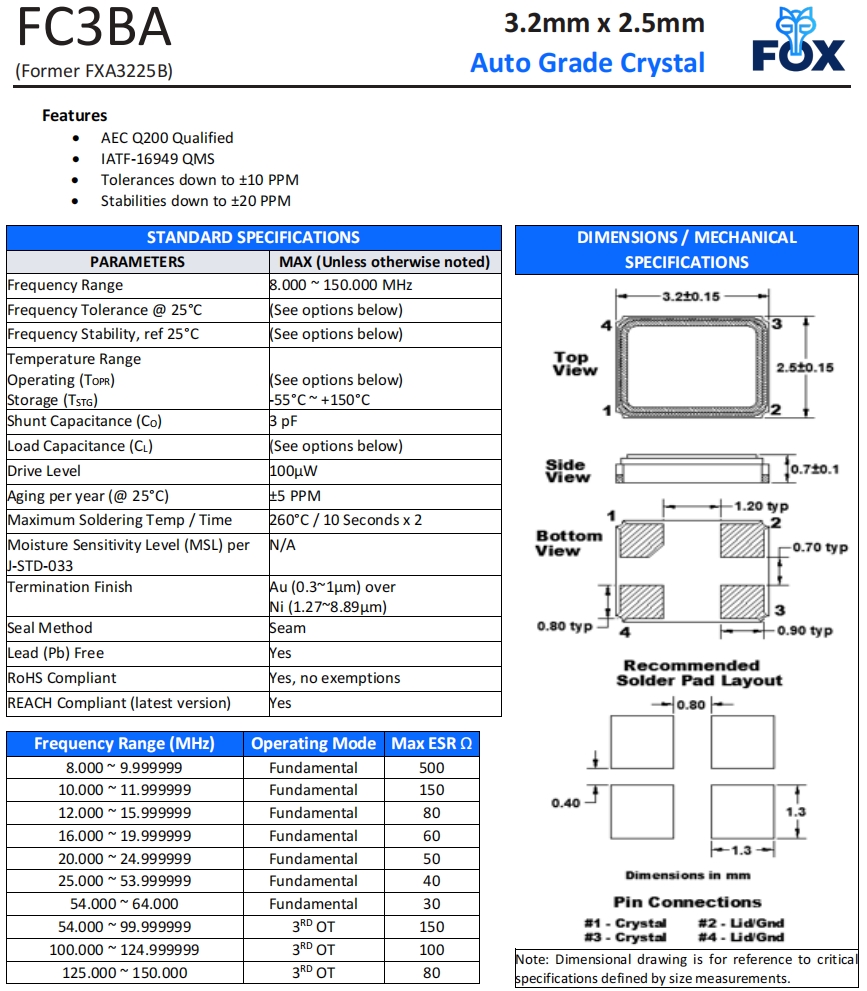

TC-2 FOX福克斯晶振,3225mm,FC3BABCVI45.0,45MHZ,FC3BA晶体 参数表

STANDARD SPECIFICATIONS

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

45.000 MHz

Frequency Tolerance @ 25°C

(See options below)

Frequency Stability, ref 25°C

(See options below)

Temperature Range
Operating (TOPR)
Storage (TSTG)

(See options below)
-55°C ~ +150°C

Shunt Capacitance (CO)

3 pF

Load Capacitance (CL)

(See options below)

Drive Level

100µW

Aging per year (@ 25°C)

±5 PPM

Maximum Soldering Temp / Time

260°C / 10 Seconds x 2

Moisture Sensitivity Level (MSL) per
J-STD-033

N/A

Termination Finish

Au (0.3~1µm) over
Ni (1.27~8.89µm)

Seal Method

Seam

Lead (Pb) Free

Yes

RoHS Compliant

Yes, no exemptions

REACH Compliant (latest version)

Yes

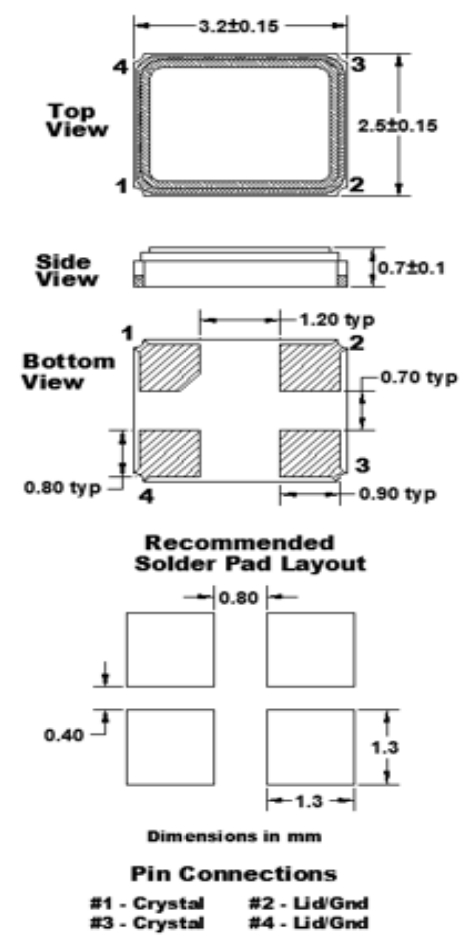

FOX福克斯晶振,3225mm,FC3BABCVI45.0,45MHZ,FC3BA晶体 尺寸图
