夸克汽车级晶振/QTC6A24.0000FCT3I20R/6GWIFI晶振

频率：24MHZ

尺寸：6.0*3.5mm

夸克汽车级晶振/QTC6A24.0000FCT3I20R/6GWIFI晶振，尺寸为6.0*3.5mm，频率为24MHZ，Quarztechnik Crystal，德国进口晶振，石英晶体谐振器，6035mm贴片晶体，无源贴片晶振，石英晶振，SMD石英晶体，石英SMD晶振，四脚贴片晶振，水晶振动子，高密度应用晶振，通信产品专用晶振，测试设备晶振，无线应用石英晶振，汽车应用无源晶体，仪器设备晶振，高品质晶振，低损耗晶振，产品具有低损耗高品质的特点。

Quartz crystal通过合理的真空退火技术可提高晶振主要参数的稳定性,以及提高石英晶振的年老化特性，产品很适合用于高密度应用，调制解调器、通信和测试设备，PMCIA，无线应用，汽车应用等领域。夸克汽车级晶振/QTC6A24.0000FCT3I20R/6GWIFI晶振.

订购热线：0755-27838351

Quartz crystal通过合理的真空退火技术可提高晶振主要参数的稳定性,以及提高石英晶振的年老化特性，产品很适合用于高密度应用，调制解调器、通信和测试设备，PMCIA，无线应用，汽车应用等领域。夸克汽车级晶振/QTC6A24.0000FCT3I20R/6GWIFI晶振.夸克汽车级晶振/QTC6A24.0000FCT3I20R/6GWIFI晶振 参数图

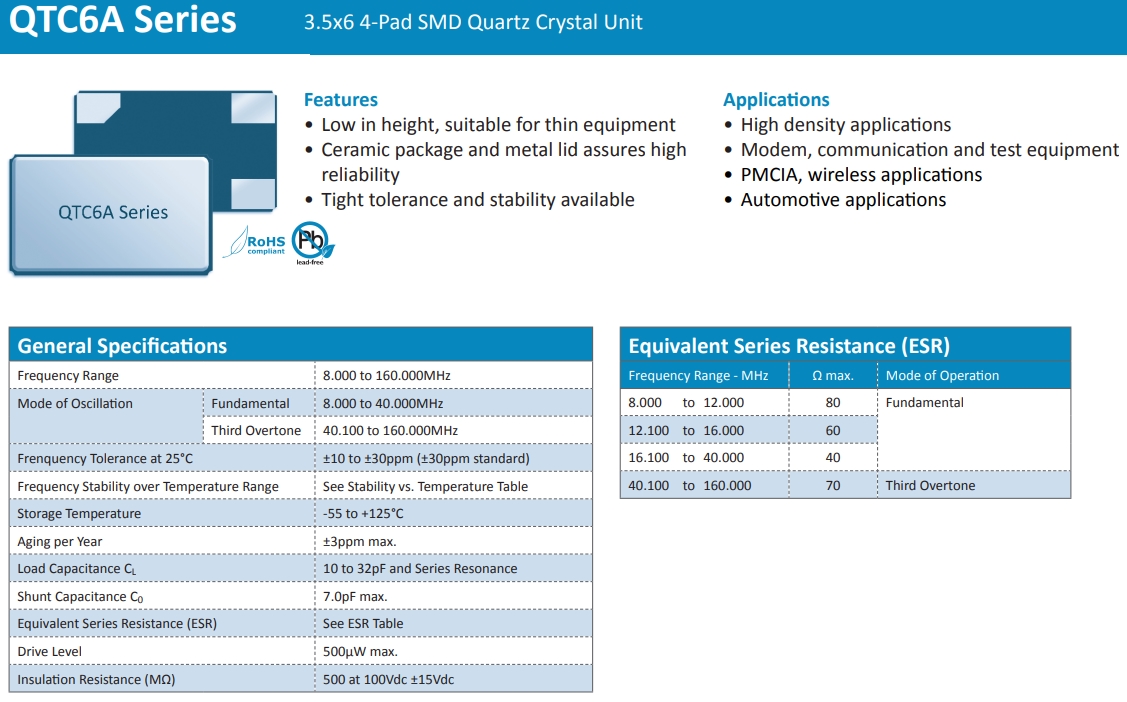

General Specifications

Frequency Range

24.000MHz

Mode of Oscillation

Fundamental

8.000 to 40.000MHz

Third Overtone

40.100 to 160.000MHz

Frenquency Tolerance at 25°C

±10 to ±30ppm (±30ppm standard)

Frequency Stability over Temperature Range

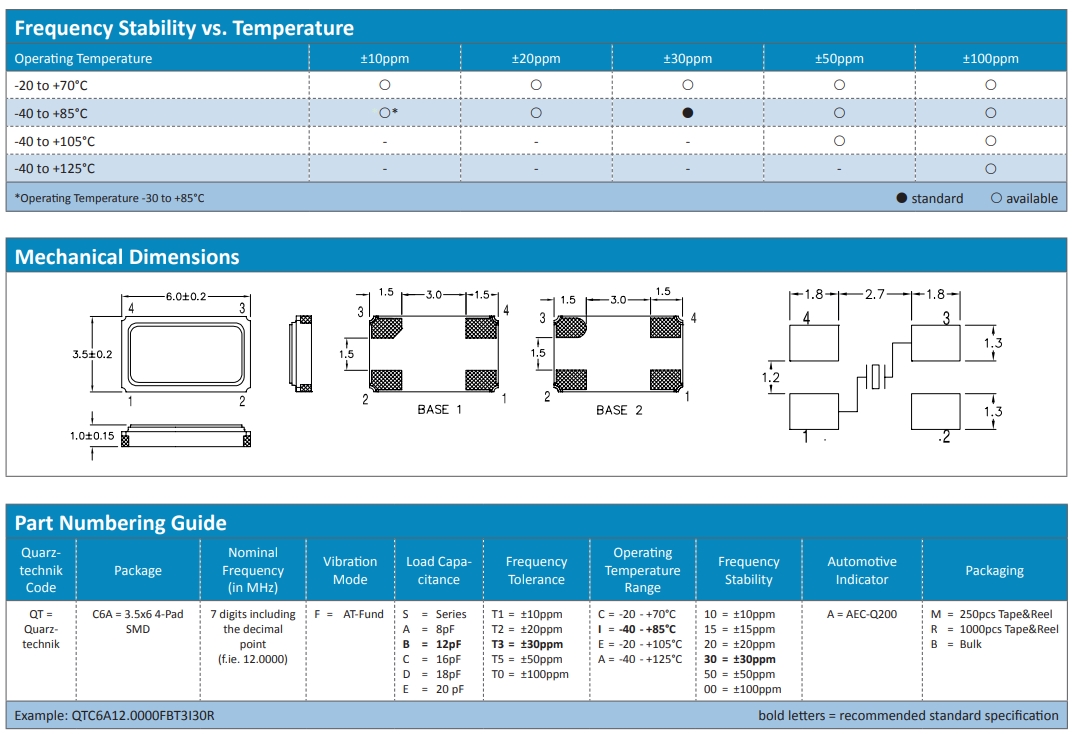

See Stability vs. Temperature Table

Storage Temperature

-55 to +125°C

Aging per Year

±3ppm max.

Load Capacitance CL

10 to 32pF and Series Resonance

Shunt Capacitance C0

7.0pF max.

Equivalent Series Resistance (ESR)

See ESR Table

Drive Level

500μW max.

Insulation Resistance (MΩ)

500 at 100Vdc ±15Vdc

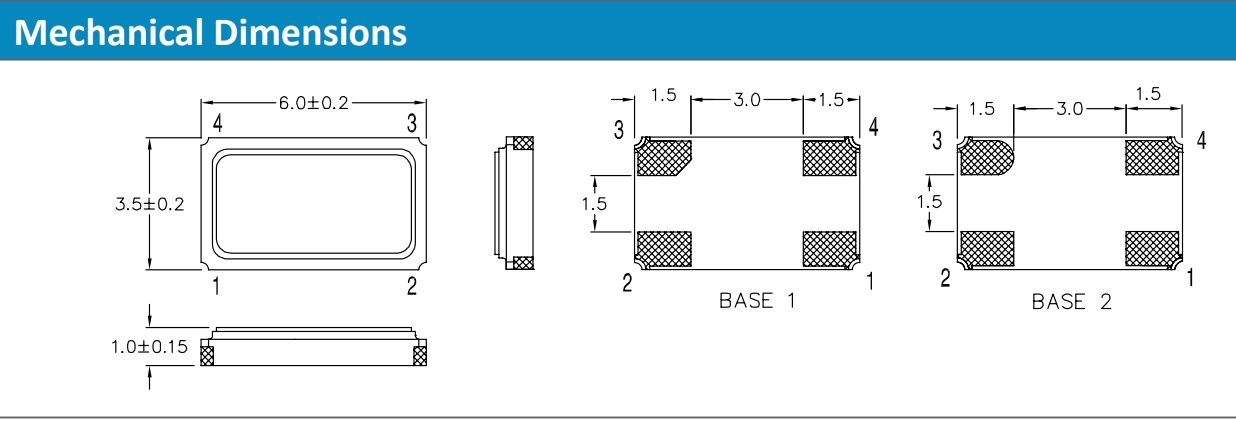

夸克汽车级晶振/QTC6A24.0000FCT3I20R/6GWIFI晶振 尺寸图

石英晶体产品特性：

高度低，适用于薄型设备

陶瓷包装和金属盖确保可靠性

具有紧密的公差和稳定性

非常低的老化

更多相关Quarztechnik晶振Quarztechnik Crystal型号

Frequency	CL	Tolerance	Stability	Temp. Range	Part number
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A8.00000FDT1I20M
10.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A10.0000FDT1I20M
11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A11.0592FDT1I20M
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A12.0000FDT1I20M
14.31818 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A14.31818FDT1I20M
14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A14.7456FDT1I20M
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A16.0000FDT1I20M
19.6608 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A19.6608FDT1I20M
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A24.0000FDT1I20M
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A25.0000FDT1I20M
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A27.0000FDT1I20M
32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A32.0000FDT1I20M
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A8.00000FDT1I20M
11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A11.0592FDT1I20M
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A12.0000FDT1I20M
14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A14.7456FDT1I20M
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A16.0000FDT1I20M
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A20.0000FDT1I20M
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A24.0000FDT1I20M
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A25.0000FDT1I20M
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A27.0000FDT1I20M
32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A32.0000FDT1I20M
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A8.00000FDT1I20M
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A12.0000FDT1I20M
12.288 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A12.2880FDT1I20M
15.360 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A15.3600FDT1I20M
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A16.0000FDT1I20M
18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A18.4320FDT1I20M
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A20.0000FDT1I20M
24.576 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A24.5760FDT1I20M
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A25.0000FDT1I20M
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A27.0000FDT1I20M
30.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A30.0000FDT1I20M
40.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A40.0000FDT1I20M
48.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A48.0000FDT1I20M
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3216.0000FDT1I20M
18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3218.4320FDT1I20M
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3220.0000FDT1I20M
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3224.0000FDT1I20M
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3225.0000FDT1I20M
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3227.0000FDT1I20M
