LVPECL差分贴片晶振,XUP735150.000000X,物联网应用6G晶振
prevnext

LVPECL差分贴片晶振,XUP735150.000000X,物联网应用6G晶振

频率：150.000MHz

尺寸：7.0x5.0x1.3mm

LVPECL差分贴片晶振,XUP735150.000000X,物联网应用6G晶振，进口晶振，Renesas瑞萨电子晶振，XU系列晶振，编码为：XUP735150.000000X，频率为：150.000MHz，小体积晶振尺寸：7.0x5.0x1.3mm封装，六脚贴片晶振，LVPECL输出差分晶振，差分晶体振荡器，石英晶振，SMD晶振，有源晶振，石英晶体振荡器。具有超小型，轻薄型，低抖动，低功耗，低电源电压，低相位噪声，低电平，低损耗，低耗能，高精度，高性能，高品质等特点。被广泛用于：通讯设备，无线网络，蓝牙模块，物联网，机顶盒，光端机，GPS定位，路由器，交换机，导航仪，安防设备及各种频率控制设备上。
订购热线：0755-27838351
QQ咨询 点击这里给我发消息

1

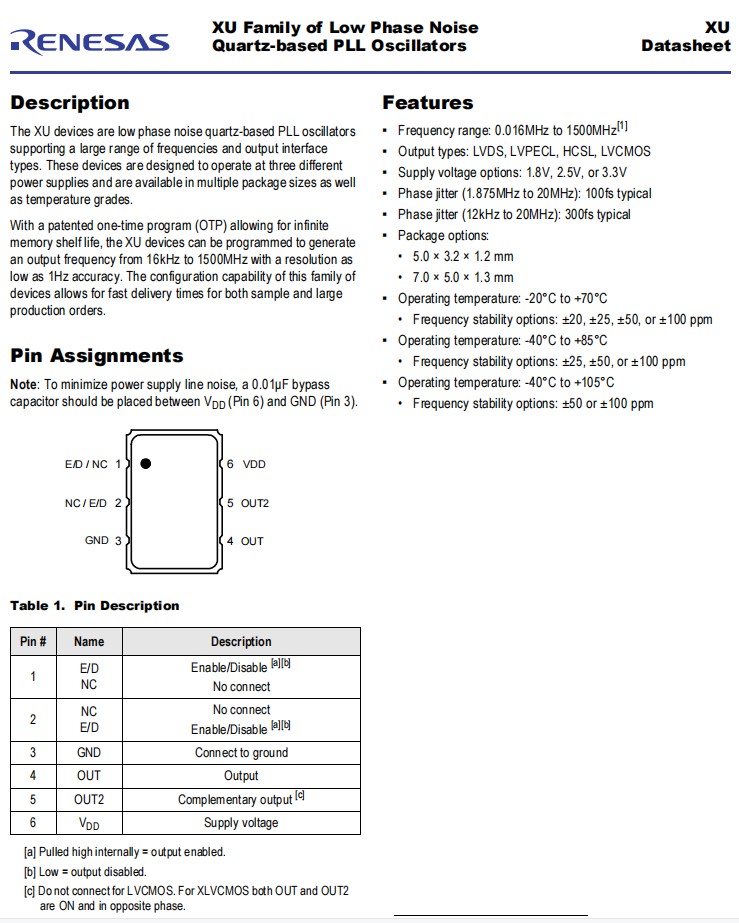

LVPECL差分贴片晶振,XUP735150.000000X,物联网应用6G晶振，进口晶振，Renesas瑞萨电子晶振，XU系列晶振，编码为：XUP735150.000000X，频率为：150.000MHz，小体积晶振尺寸：7.0x5.0x1.3mm封装，六脚贴片晶振，LVPECL输出差分晶振，差分晶体振荡器，石英晶振，SMD晶振，有源晶振，石英晶体振荡器。具有超小型，轻薄型，低抖动，低功耗，低电源电压，低相位噪声，低电平，低损耗，低耗能，高精度，高性能，高品质等特点。被广泛用于：通讯设备，无线网络，蓝牙模块，物联网，机顶盒，光端机，GPS定位，路由器，交换机，导航仪，安防设备及各种频率控制设备上。

XU系列贴片晶振是低相位噪声石英基PLL振荡器，支持大范围的频率和输出接口类型。这些设备被设计为操作在三种不同的电源供应，并可在多种包装尺寸和温度等级。通过专利的一次性程序（OTP）允许无限内存保质期，XU设备可以编程产生从16 kHz到1500MHz的输出频率，分辨率低至1Hz。该系列设备的配置能力允许样品和大型生产订单的快速交付时间。

2

LVPECL差分贴片晶振,XUP735150.000000X,物联网应用6G晶振,参数表

Parameter Symbol Condition Min Typ Max Units
Output Frequency Range FOUTR
150.000
MHz
Frequency Stability Temperature = -20°C to +70°C ±20 ±100 ppm
Temperature = -40°C to +85°C ±25 ±100 ppm
Aging(1st year) Ta = 25°C ±3
Aging (10 years) Ta = 25°C ±10
Output Load Differential 100 Ohms
Start-up Time TST Output valid time after VDD meets
minimum specified level 		10 ms
Output Rise Time 20% to 80% VPP 275 380 ps
Output Fall Time 80% to 20% VPP 275 380 ps
Output Clock Duty Cycle TDTCY @ 50% VPP 45 55 %
Output Enable/ Disable Time TOE 100 ns
Period Jitter, RMS J PER Frequency = 156.25MHz 3.5 8 psec
Random Jitter RJ Frequency = 156.25MHz
Per MJSQ spec (Methodologies for
Jitter and Signal Quality specifications) 		0.9 1.5 psec
Deterministic Jitter DJ 12 26 psec
Total Jitter TJ 25 44 psec
Phase Jitter (12kHz – 20MHz) φJITTER @25°C & 3.3V 300 400 fsec
Phase Noise Performance
Frequency = 156.25 MHz 		φNOISE 100Hz of Carrier -97 dBc/Hz
1kHz of Carrier -112 dBc/Hz
10kHz of Carrier -122 dBc/Hz
100kHz of Carrier -131 dBc/Hz
1MHz of Carrier -146 dBc/Hz
10MHz of Carrier -153 dBc/Hz
Output Frequency (Standards) F OUT 100MHz, 106.25MHz, 125MHz, 150MHz, 155.52MHz, 156.25MHz, 200MHz,212,5MHz, 250MHz, 300MHz, 312.5MHZ, 400MHz，(Contact IDT for additional frequencies)

3

LVPECL差分贴片晶振,XUP735150.000000X,物联网应用6G晶振,尺寸图

XU尺寸7050


LVPECL差分贴片晶振,XUP735150.000000X,物联网应用6G晶振

产品特点：

频率范围：0.016至1500MHz
输出类型：LVDS石英晶体振荡器
频率稳定性：±20ppm、±25ppm、±50ppm或±100ppm
电源电压：1.8V、2.5V或3.3V
相位抖动（1.875MHz至20MHz）：典型100fs
相位抖动（12kHz至20MHz）：典型300fs
包装选项：5.0mm x 3.2mm x 1.2mm（JS6），7.0毫米x 5.0毫米x 1.3毫米（JU6）
工作温度：-20°C至+70°C或-40°C至+85°C



XU

XU-2


编码 晶振厂家 描述 系列 频率 输出 电压
XUP736150.000JU6I Renesas晶振 XTAL OSC XO 150.0000MHZ LVPECL XUP 150 MHz LVPECL 3.3V
XUP736125.000JU6I Renesas晶振 XTAL OSC XO 125.0000MHZ LVPECL XUP 125 MHz LVPECL 3.3V
XUP536212.500JS6I Renesas晶振 XTAL OSC XO 212.5000MHZ LVPECL XUP 212.5 MHz LVPECL 3.3V
XUP536156.250JS6I Renesas晶振 XTAL OSC XO 156.2500MHZ LVPECL XUP 156.25 MHz LVPECL 3.3V
XUP736050.000000X Renesas晶振 XTAL OSC XO 50.0000MHZ LVPECL XUP 50 MHz LVPECL 3.3V
XUP535024.576000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 24.576 MHz LVPECL 3.3V
XUP735114.866667X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 114.866667 MHz LVPECL 3.3V
XUP735025.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 25 MHz LVPECL 3.3V
XUP535100.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 100 MHz LVPECL 3.3V
XUP735125.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 125 MHz LVPECL 3.3V
XUP535075.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 75 MHz LVPECL 3.3V
XUP735133.330000X Renesas晶振 XTAL OSC XO 133.3300MHZ LVPECL XUP 133.33 MHz LVPECL 3.3V
XUP726100.000000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 100 MHz LVPECL 2.5V
XUP735212.500000I Renesas晶振 XTAL OSC XO 212.5000MHZ LVPECL XUP 212.5 MHz LVPECL 3.3V
XUP536048.000000I Renesas晶振 XTAL OSC XO 48.0000MHZ LVPECL XUP 48 MHz LVPECL 3.3V
XUP735150.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 150 MHz LVPECL 3.3V
XUP535100.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 100 MHz LVPECL 3.3V
XUP530156.250000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 156.25 MHz LVPECL 3.3V
XUP735155.520000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 155.52 MHz LVPECL 3.3V
XUP535050.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 50 MHz LVPECL 3.3V
XUP535150.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 150 MHz LVPECL 3.3V
XUP735312.500000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 312.5 MHz LVPECL 3.3V
XUP735053.125000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 53.125 MHz LVPECL 3.3V
XUP735125.000000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 125 MHz LVPECL 3.3V
XUP735100.000000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 100 MHz LVPECL 3.3V
XUP530156.250000I Renesas晶振 XTAL OSC XO 156.2500MHZ LVPECL XUP 156.25 MHz LVPECL 3.3V
XUP738120.000000X Renesas晶振 XTAL OSC XO 120.0000MHZ LVPECL XUP 120 MHz LVPECL 3.3V
XUP535025.000000K Renesas晶振 XTAL OSC XO 25.0000MHZ LVPECL XUP 25 MHz LVPECL 3.3V
XUP535022.579200X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 22.5792 MHz LVPECL 3.3V
XUP735360.000000X 进口晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 360 MHz LVPECL 3.3V
XUP535212.500000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 212.5 MHz LVPECL 3.3V
XUP736250.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 250 MHz LVPECL 3.3V
XUP735187.500000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 187.5 MHz LVPECL 3.3V
XUP738040.680000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 40.68 MHz LVPECL 3.3V
XUP735404.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 404 MHz LVPECL 3.3V
XUP735500.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 500 MHz LVPECL 3.3V
XUP536250.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 250 MHz LVPECL 3.3V
XUP735150.000000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 150 MHz LVPECL 3.3V
XUP536100.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 100 MHz LVPECL 3.3V
XUP735155.520000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 155.52 MHz LVPECL 3.3V
XUP735156.253906I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 156.253906 MHz LVPECL 3.3V
XUP738100.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 100 MHz LVPECL 3.3V
XUP536125.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 125 MHz LVPECL 3.3V
XUP536025.000625I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 25.000625 MHz LVPECL 3.3V
XUP735600.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 600 MHz LVPECL 3.3V
XUP736120.000000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 120 MHz LVPECL 3.3V
XUP536050.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 50 MHz LVPECL 3.3V
XUP535312.500000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 312.5 MHz LVPECL 3.3V
XUP735480.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 480 MHz LVPECL 3.3V
XUP725644.531250X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 644.53125 MHz LVPECL 2.5V
XUP535160.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 160 MHz LVPECL 3.3V
XUP735156.253000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 156.253 MHz LVPECL 3.3V
XUP730156.250000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 156.25 MHz LVPECL 3.3V
XUP535155.520000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 155.52 MHz LVPECL 3.3V
XUP735133.330000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 133.33 MHz LVPECL 3.3V
XUP535150.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 150 MHz LVPECL 3.3V
XUP535300.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 300 MHz LVPECL 3.3V
XUP535250.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 250 MHz LVPECL 3.3V
XUP736050.000000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 50 MHz LVPECL 3.3V
XUP536025.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 25 MHz LVPECL 3.3V
XUP735312.500000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 312.5 MHz LVPECL 3.3V
XUP735250.000000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 250 MHz LVPECL 3.3V
XUP735698.812300X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 698.8123 MHz LVPECL 3.3V
XUP735622.080000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 622.08 MHz LVPECL 3.3V
XUP538100.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 100 MHz LVPECL 3.3V
XUP538125.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 125 MHz LVPECL 3.3V
XUP536020.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 20 MHz LVPECL 3.3V
XUP536125.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 125 MHz LVPECL 3.3V
XUP736067.108864X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 67.108864 MHz LVPECL 3.3V
XUP735500.000000I Renesas晶振 XTAL OSC XO 500.0000MHZ LVPECL XUP 500 MHz LVPECL 3.3V
XUP536100.000000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 100 MHz LVPECL 3.3V
XUP735240.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 240 MHz LVPECL 3.3V
XUP725050.000000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 50 MHz LVPECL 2.5V
XUP736025.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 25 MHz LVPECL 3.3V
XUP525161.132813X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 161.132813 MHz LVPECL 2.5V
XUP725025.000000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 25 MHz LVPECL 2.5V
XUP535156.250000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 156.25 MHz LVPECL 3.3V
XUP735025.000000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 25 MHz LVPECL 3.3V
XUP535125.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 125 MHz LVPECL 3.3V
XUP535148.500000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 148.5 MHz LVPECL 3.3V
XUP525100.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 100 MHz LVPECL 2.5V
XUP725100.000000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 100 MHz LVPECL 2.5V
XUP515019.200000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 19.2 MHz LVPECL 1.8V
XUP735156.250000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 156.25 MHz LVPECL 3.3V
XUP735106.250000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 106.25 MHz LVPECL 3.3V
XUP736125.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 125 MHz LVPECL 3.3V
XUP710156.250000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 156.25 MHz LVPECL 1.8V
XUP525156.250000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 156.25 MHz LVPECL 2.5V
XUP535025.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 25 MHz LVPECL 3.3V
XUP536625.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 625 MHz LVPECL 3.3V
XUP536320.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 320 MHz LVPECL 3.3V
XUP536400.000000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 400 MHz LVPECL 3.3V
XUP538622.080000X Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 622.08 MHz LVPECL 3.3V
XUP736322.265625I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 322.265625 MHz LVPECL 3.3V
XUP738338.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 338 MHz LVPECL 3.3V
XUP535622.080000K Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 622.08 MHz LVPECL 3.3V
XUP535402.832032I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 402.832032 MHz LVPECL 3.3V
XUP536184.320000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 184.32 MHz LVPECL 3.3V
XUP736622.080000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 622.08 MHz LVPECL 3.3V
XUP736644.531200X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 644.5312 MHz LVPECL 3.3V
XUP736156.253906I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 156.253906 MHz LVPECL 3.3V
XUP736300.000000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 300 MHz LVPECL 3.3V
XUP736240.000000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 240 MHz LVPECL 3.3V
XUP536156.250000I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 156.25 MHz LVPECL 3.3V
XUP738200.000000X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 200 MHz LVPECL 3.3V
XUP736212.500000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 212.5 MHz LVPECL 3.3V
XUP726156.250000I Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 156.25 MHz LVPECL 2.5V
XUP535438.282150I Renesas晶振 CLCC 5.00X3.20X1.10 MM, 2.54MM P XUP 438.28215 MHz LVPECL 3.3V
XUP726644.531250X Renesas晶振 CLCC 7.00X5.00X1.30 MM, 2.54MM P XUP 644.53125 MHz LVPECL 2.5V


5
