97M260-12(C),6035mm,97SMX(C)晶振,SMI陶瓷谐振器,26MHZ

频率：26MHZ

尺寸：6.0x3.5mm

97M260-12(C),6035mm,97SMX(C)晶振,SMI陶瓷谐振器,26MHZ,日本SMI晶振,无源晶振,两脚贴片晶振,26MHZ无源晶体,水晶振动子,陶瓷晶振,6035晶体谐振器,贴片陶瓷谐振器,SMD晶振,尺寸6.0x3.5mm,频率26MHZ,环保晶振,低功耗晶振,高品质晶振,高性能晶振,高可靠晶振,移动电子晶振,数字音频晶振,便携式设备晶振,影音系统晶振,测量设备晶振.

订购热线：0755-27838351

97M260-12(C),6035mm,97SMX(C)晶振,SMI陶瓷谐振器,26MHZ特点:

紧凑而薄6.0x3.5mm贴片晶振

优异的耐热性

超级低的老化

符合RoHS标准且无铅

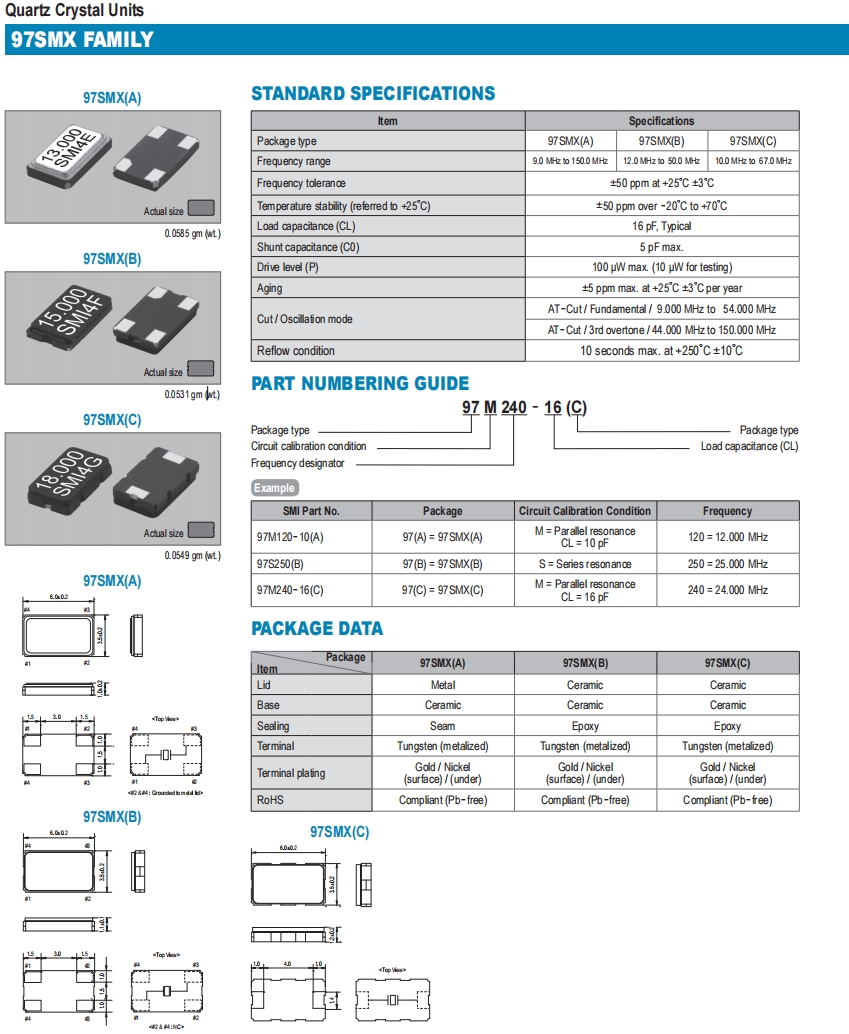

97M260-12(C),6035mm,97SMX(C)晶振,SMI陶瓷谐振器,26MHZ 参数表

Item	Specifications

Package type	97SMX(A)	97SMX(B)	97SMX(C)

Frequency range	9.0 MHz to 150.0 MHz	12.0 MHz to 50.0 MHz	26.0 MHz
Frequency tolerance	±50 ppm at +25℃ ±3℃
Temperature stability (referred to +25℃)	±50 ppm over -20℃ to +70℃

Load capacitance (CL)	16 pF, Typical
Shunt capacitance (C0)	5 pF max.
Drive level (P)	100 μW max. (10 μWfor testing)
Aging	±5 ppm max. at +25℃ ±3℃ per year
Cut / Oscillation mode	AT-Cut / Fundamental / 9.000 MHz to 54.000 MHz

	AT-Cut / 3rd overtone / 44.000 MHz to 150.000 MHz
Reflow condition	10 seconds max. at +250℃ ±10℃

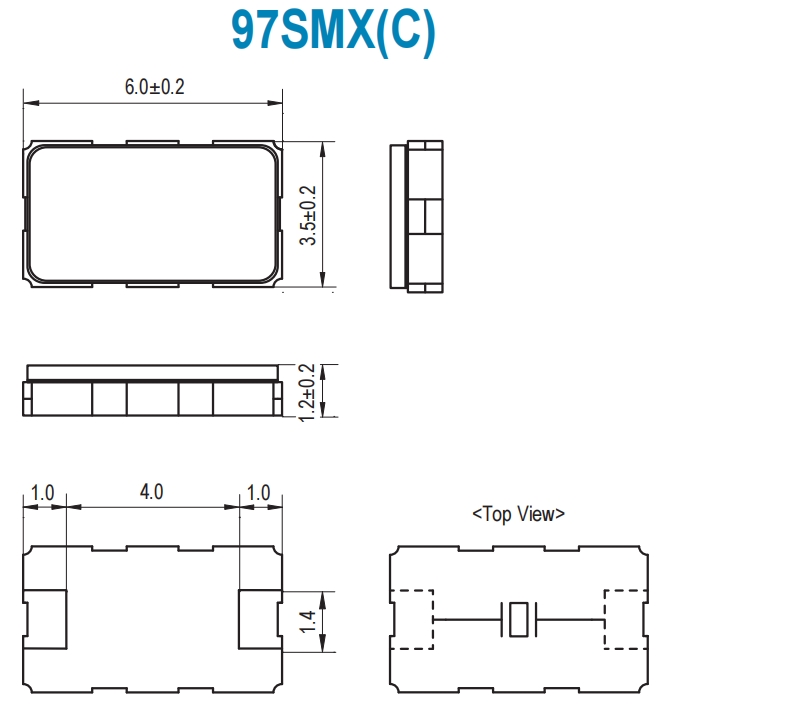

97M260-12(C),6035mm,97SMX(C)晶振,SMI陶瓷谐振器,26MHZ 尺寸图
