2016mm/26MHz/±50ppm/10pF/ABM11AIG-26.000MHZ-4Z-T3/-40℃~125℃
频率：26MHz
尺寸：2.0x1.6mm
2016mm/26MHz/±50ppm/10pF/ABM11AIG-26.000MHZ-4Z-T3/-40℃~125℃，美国进口晶振，Abracon艾博康晶振型号：ABM11AIG，编码为：ABM11AIG-26.000MHZ-4Z-T3，频率为：26.000MHz，是一款小体积晶振尺寸2.0x1.6x0.55mm封装，四脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器，无铅环保晶振，符合AEC-Q200标准，汽车1级：-40°C到+125°C，汽车等级0：-40°C至+150°C（可根据要求提供），TS16949生产线认证，PPAP可根据要求提供，密封密封陶瓷包装，符合RoHS/RoHS II标准，无铅度，小体积晶振应用于：信息娱乐系统，无钥匙进入和启动，GPS和导航，舒适控制ADAS（先进的驾驶员辅助系统），车辆到车辆通信，激光雷达（光探测和测距），车载网络，动力系统和驱动，控制电源控制和转换，工业控制和自动化应用.

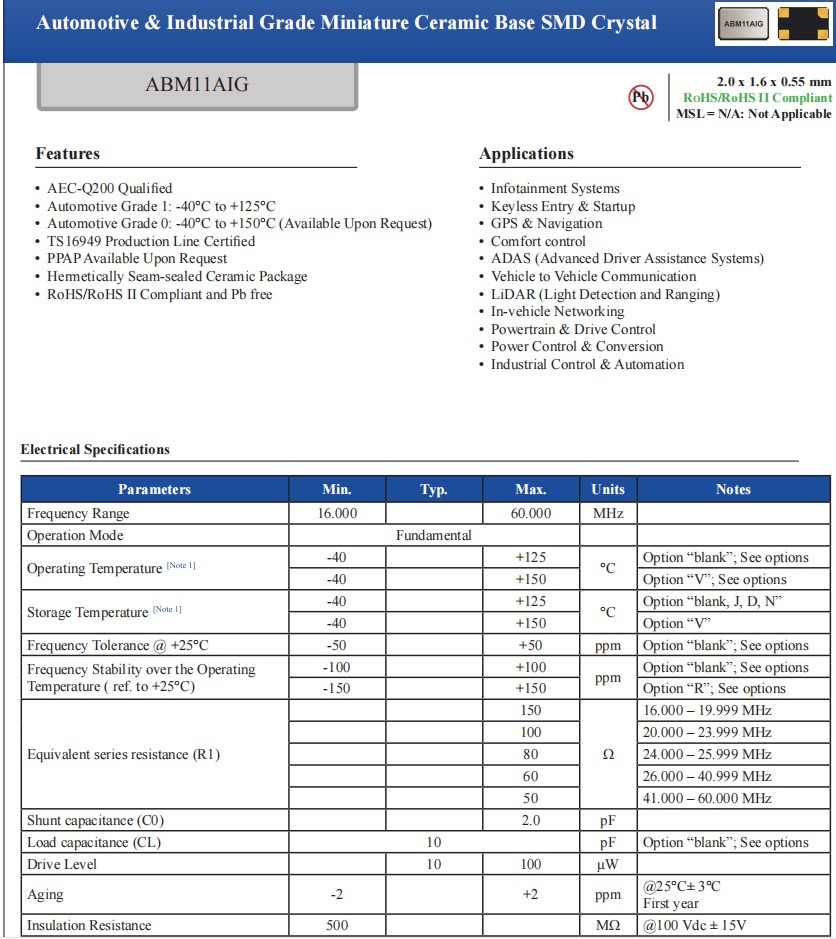

2016mm/26MHz/±50ppm/10pF/ABM11AIG-26.000MHZ-4Z-T3/-40℃~125℃，参数图
ABM11AIG
Min.
Typ.
Max.
Units
Notes
Frequency Range
16
60
MHz
Operation Mode
Fundamental
Operating Temperature [Note 1]
-40
125
°C
Option “blank”; See options
-40
150
Option “V”; See options
Storage Temperature [Note 1]
-40
125
°C
Option “blank, J, D, N”
-40
150
Option “V”
Frequency Tolerance @ +25°C
-50
50
ppm
Option “blank”; See options
Frequency Stability over the Operating Temperature ( ref. to +25°C)
-100
100
ppm
Option “blank”; See options
-150
150
Option “R”; See options
Equivalent series resistance (R1)
150
Ω
16.000 – 19.999MHz
100
20.000 – 23.999MHz
80
24.000 – 25.999MHz
60
26.000 – 40.999MHz
50
41.000 – 60.000MHz
Shunt capacitance (C0)
2
pF
Load capacitance (CL)
10
pF
Option “blank”; See options
Drive Level
10
100
μW
Aging
-2
2
ppm
@25°C± 3°C First year
Insulation Resistance
500
MΩ
@100 Vdc ± 15V

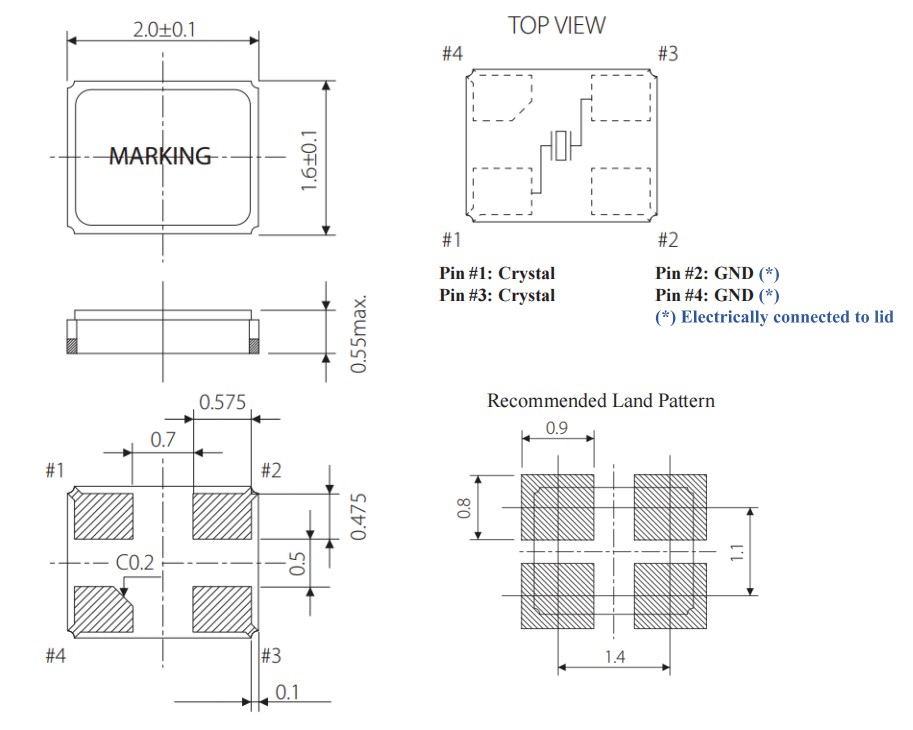

2016mm/26MHz/±50ppm/10pF/ABM11AIG-26.000MHZ-4Z-T3/-40℃~125℃，尺寸图
| 原厂编码 | 美国进口晶振 | 型号 | 系列 | 频率 | 包装/封装 |
| ABM11AIG-24.000MHZ-4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 24MHz | 4-SMD, No Lead |
| ABM11AIG-40.000MHZ-4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 40MHz | 4-SMD, No Lead |
| ABM11AIG-27.000MHZ-4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 27MHz | 4-SMD, No Lead |
| ABM11AIG-32.000MHZ-4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 32MHz | 4-SMD, No Lead |
| ABM11AIG-24.576MHZ-4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 24.576MHz | 4-SMD, No Lead |
| ABM11AIG-19.200MHZ-4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 19.2MHz | 4-SMD, No Lead |
| ABM11AIG-26.000MHZ-4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 26MHz | 4-SMD, No Lead |
| ABM11AIG-30.000MHZ-4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 30MHz | 4-SMD, No Lead |
| ABM11AIG-25.000MHZ-4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 25MHz | 4-SMD, No Lead |
| ABM11AIG-20.000MHZ-4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 20MHz | 4-SMD, No Lead |
| ABM11AIG-27.120HZ-4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 27.12MHz | 4-SMD, No Lead |
| ABM11AIG-19.200MHZ-J4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 19.2MHz | 4-SMD, No Lead |
| ABM11AIG-20.000MHZ-J4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 20MHz | 4-SMD, No Lead |
| ABM11AIG-24.000MHZ-J4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 24MHz | 4-SMD, No Lead |
| ABM11AIG-24.576MHZ-J4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 24.576MHz | 4-SMD, No Lead |
| ABM11AIG-25.000MHZ-J4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 25MHz | 4-SMD, No Lead |
| ABM11AIG-26.000MHZ-J4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 26MHz | 4-SMD, No Lead |
| ABM11AIG-27.000MHZ-J4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 27MHz | 4-SMD, No Lead |
| ABM11AIG-27.120HZ-J4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 27.12MHz | 4-SMD, No Lead |
| ABM11AIG-30.000MHZ-J4Z-T3 | 石英晶振 | ABM11AIG | MHz Crystal | 30MHz | 4-SMD, No Lead |
| ABM11AIG-32.000MHZ-J4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 32MHz | 4-SMD, No Lead |
| ABM11AIG-40.000MHZ-J4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 40MHz | 4-SMD, No Lead |
| ABM11AIG-48.000MHZ-J4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 48MHz | 4-SMD, No Lead |
| ABM11AIG-19.200MHZ-4-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 19.2MHz | 4-SMD, No Lead |
| ABM11AIG-20.000MHZ-4-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 20MHz | 4-SMD, No Lead |
| ABM11AIG-24.000MHZ-4-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 24MHz | 4-SMD, No Lead |
| ABM11AIG-24.576MHZ-4-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 24.576MHz | 4-SMD, No Lead |
| ABM11AIG-25.000MHZ-4-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 25MHz | 4-SMD, No Lead |
| ABM11AIG-26.000MHZ-4-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 26MHz | 4-SMD, No Lead |
| ABM11AIG-27.000MHZ-4-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 27MHz | 4-SMD, No Lead |
| ABM11AIG-27.120HZ-4-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 27.12MHz | 4-SMD, No Lead |
| ABM11AIG-30.000MHZ-4-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 30MHz | 4-SMD, No Lead |
| ABM11AIG-32.000MHZ-4-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 32MHz | 4-SMD, No Lead |
| ABM11AIG-40.000MHZ-4-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 40MHz | 4-SMD, No Lead |
| ABM11AIG-48.000MHZ-4-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 48MHz | 4-SMD, No Lead |
| ABM11AIG-48.000MHZ-4Z-T3 | Abracon晶振 | ABM11AIG | MHz Crystal | 48MHz | 4-SMD, No Lead |
