HSX111SR台湾晶振,6G以太网晶振,X1R052000B81HZ-DEHPZ,HELE贴片晶体

当前位置：首页 » 台产晶振 » 加高晶振 » HSX111SR台湾晶振,6G以太网晶振,X1R052000B81HZ-DEHPZ,HELE贴片晶体

prevnext

HSX111SR台湾晶振,6G以太网晶振,X1R052000B81HZ-DEHPZ,HELE贴片晶体

频率：52MHZ

尺寸：1.6x1.2mm

HSX111SR台湾晶振,6G以太网晶振,X1R052000B81HZ-DEHPZ,HELE贴片晶体，尺寸1.6x1.2mm，频率52MHZ，台湾加高晶振，石英贴晶振，四脚贴片晶振，水晶振动子，石英晶体，石英晶体谐振器，无源石英晶振，轻薄型晶体，绿色环保晶振，SMD晶体谐振器，SMD晶振，金属面贴片晶振，蓝牙模块晶振，无线设备晶振，小型设备专用晶振，6G以太网专用晶振，数字视频专用晶振，便携式设备晶振，网络设备晶振，消费电子专用晶振，平板电脑晶振，可穿戴设备晶振，具备广泛的选择空间.

石英晶体产品很适合用于蓝牙模块，无线设备，小型设备，6G以太网，数字视频，便携式设，网络设备，消费电子，平板电脑，可穿戴设备等领域。HSX111SR台湾晶振,6G以太网晶振,X1R052000B81HZ-DEHPZ,HELE贴片晶体.

订购热线：0755-27838351

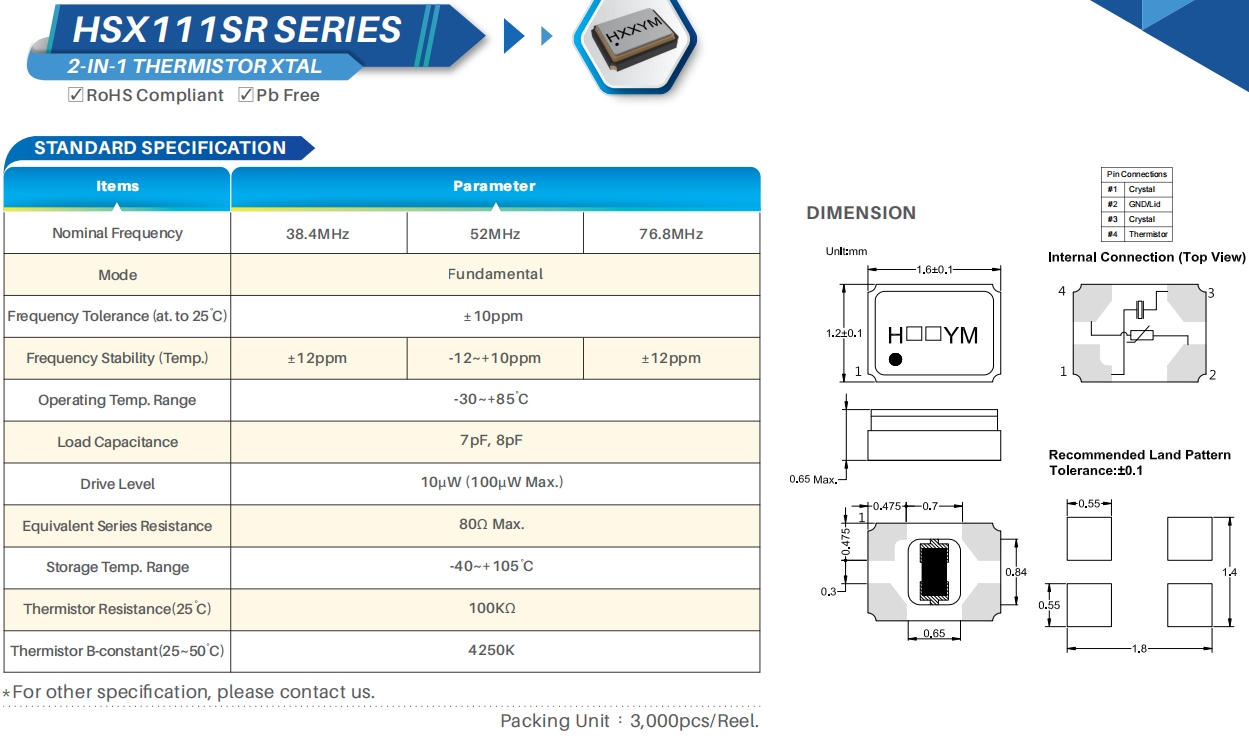

HSX111SR台湾晶振,6G以太网晶振,X1R052000B81HZ-DEHPZ,HELE贴片晶体 参数表

Items	parameter


Nominal Frequency	38.4MHz	52MHz	76.8MHz


Mode	Fundamental

Frequency Tolerance (at. to 25 C)	±10ppm
Frequency Stability (Temp.)	±12ppm	-12~+10ppm	±12ppm
Operating Temp. Range	-30~+85 C
Load Capacitance	7pF, 8pF
Drive Level	10μW (100μW Max.)

Equivalent Series Resistance	80Ω Max.
Storage Temp. Range	-40~+105 C
Thermistor Resistance(25 C)	100KΩ
Thermistor B-constant(25~50 C)	4250K

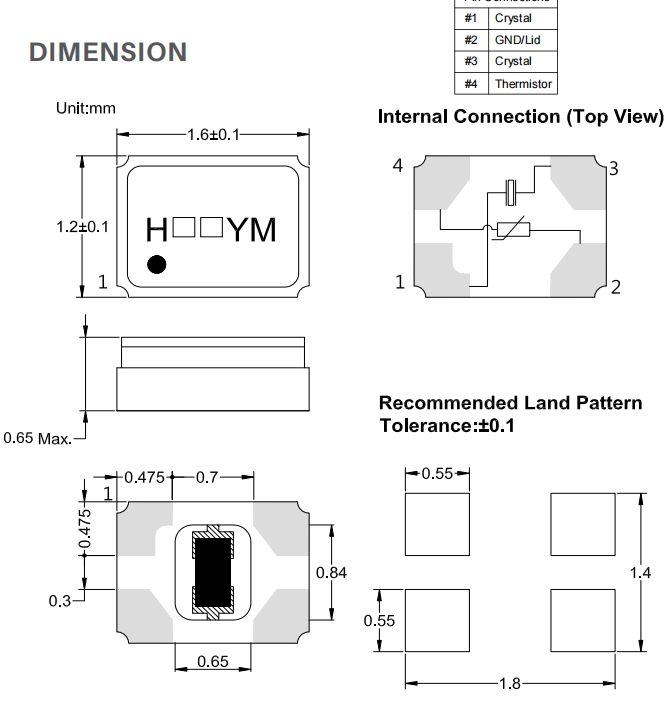

HSX111SR台湾晶振,6G以太网晶振,X1R052000B81HZ-DEHPZ,HELE贴片晶体 尺寸图

SMD晶振产品特性：

高可靠性和优异的热性能

适用于各种应用。

网络设计的理想解决方案

灵敏度较低

更多相关HELE加高晶振型号

编码	Series	品牌	描述	频率	频率稳定性
X2B026000M81H-HS	HSX221SA	HELE加高晶振	HSX221SA/26MHZ/8PF/7PPM/15PPM/-4	26.000MHZ	±15ppm
X2B016000BA1H-U	HSX221SA	HELE加高晶振	HSX221SA/16MHZ/10PF/10PPM/10PPM/	16.000MHZ	±10ppm
X2B012000BC1H-U	HSX221SA	HELE加高晶振	HSX221SA/12MHZ/12PF/10PPM/20PPM/	12.000MHZ	±20ppm
X2B040000BC1H-DHZ	HSX221SA	HELE加高晶振	HSX221SA/40MHZ/12PF/10PPM/10PPM/	40.000MHZ	±10ppm
X1R038400B81HA-CEHPZ	HSX111SR	HELE加高晶振	HSX111SR/38.4MHZ/8PF/10PPM/-40~1	38.40MHZ	±10ppm
X1R052000B81HZ-DEHPZ	HSX111SR	HELE加高晶振	HSX111SR/52MHZ/8PF/10PPM/-40~105	52.000MHZ	±10ppm
X2B012000DC1H-X	HSX221SA	HELE加高晶振	SMD Crystal Resonators 12MHz ±20ppm SMD-2520_4P RoHS	12.000MHZ	±20ppm
X2B016000B91H-HU	HSX221SA	HELE加高晶振	SMD Crystal Resonators 16MHz ±10ppm SMD-2520_4P RoHS	16.000MHZ	±10ppm
X2B027000BC1H-HU	HSX221SA	HELE加高晶振	SMD Crystal Resonators 27MHz ±10ppm SMD-2520_4P RoHS	27.000MHZ	±10ppm
X2B032000BC1H-HZ	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD-2520_4P RoHS	32.000MHZ	-
X2C048000L71HA-CEHZ	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators 48MHz ±8ppm SMD-2016_4P RoHS	48.000MHZ	±8ppm
X2B024000BC1HA-V	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD_2520-4P RoHS	24.000MHZ	-
X2B026000B91H-HZ	HSX221SA	HELE加高晶振	SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS	26.000MHZ	±10ppm
X2B026000B71HZ-HPR	HSX221SA	HELE加高晶振	SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS	26.000MHZ	±10ppm
X2B026000B71HZ	HSX221SA	HELE加高晶振	SMD Crystal Resonators 26MHz ±7ppm SMD-2520_4P RoHS	26.000MHZ	±7ppm
X2B040000BF1H-HZ	HSX221SA	HELE加高晶振	SMD Crystal Resonators 40MHz ±10ppm SMD-2520_4P RoHS	40.000MHZ	±10ppm
X2B024000BCIH-HV	HSX221SA	HELE加高晶振	SMD Crystal Resonators 24MHz ±10ppm SMD-2520_4P RoHS	24.000MHZ	±10ppm
X2C024000BA1H	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD-2016 RoHS	24.000MHZ	±10ppm
X2C024000B71H-V	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	24.000MHZ	±10ppm
X2B050000BC1H-V	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	50.000MHZ	10PPM
X2C024000FA1H-X	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	24.000MHZ	30PPM
X2C016000B81H-HPU	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD-2016 RoHS	16.000MHZ	10PPM
X2C024000B91H-HZ	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	24.000MHZ	10PPM
X2C037400BG1H-U	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD-2016 RoHS	37.400MHZ	10PPM
X2B040000BF1H-HT	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD-2520 RoHS	40.000MHZ	±15ppm
X2B030000BA1H-U	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	30.000MHZ	10PPM
X2B026000B91H-HR	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	26.000MHZ	10PPM
X2B038400BA1H-U	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD-2520 RoHS	38.400MHZ	10PPM
X2B040000B91H-U	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	40.000MHZ	10PPM
X2B032000C81H-HU	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	32.000MHZ	±15ppm
X2B012000B91H-U	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	12.000MHZ	10PPM
X2C027120FA1H-HV	HSX211S-AU	HELE加高石英晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	27.120MHZ	±30ppm
X2B030000BA1H-HW	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	30.000MHZ	10PPM
X2B026000B91H-HV	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD-2520 RoHS	26.000MHZ	10PPM
X2C040000B91HA-Z	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD-2016 RoHS	40.000MHZ	10PPM
X2B026000BC1H-Z	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	26.000MHZ	10PPM
X2B016000BC1H-HV	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	16.000MHZ	10PPM
X2C016000B91H-R	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	16.000MHZ	10PPM
X2B019200BZ1H-CHZ	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	19.200MHZ	10PPM
X2C032000BA1HA-U	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	32.000MHZ	10PPM
X2B026000B91H-U	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	26.000MHZ	10PPM
X2B026000L91H-S	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	26.000MHZ	±8ppm
X2C048000L71H-CEHZ	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	48.000MHZ	±8ppm
X2B030000FA1H-X	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD-2520 RoHS	30.000MHZ	±30ppm
X2C032000BC1H-R	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	32.000MHZ	10PPM
X2B024000FK1H-V	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	24.000MHZ	±30ppm
X2B026000B81H-CHZ	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	26.000MHZ	10PPM
X2C038400BA1H-HZ	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD-2016 RoHS	38.400MHZ	10PPM
X2B02863ADC1H-W	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	28.63636MHZ	±20ppm
X2B032000D81H-U	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	32.000MHZ	±20ppm
X2B025000BI1H-U	HSX221SA	HELE加高晶振	SMD Crystal Resonators SMD,2.5x2.0mm RoHS	25.000MHZ	10PPM
X2C032000B81H-HS	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	32.000MHZ	±10ppm
X2C026000B71H-HZ	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS	26.000MHZ	±10ppm
X2C048000BA1H-HZ	HSX211S-AU	HELE加高晶振	SMD Crystal Resonators SMD,2.0x1.6mm RoHS	48.000MHZ	±10ppm
X2CO48000B71H-CEHZ	HSX211S-AU	HELE加高晶振		48.000MHZ
X2CO48000R71HA-CEHZ	HSX211S-AU	HELE加高晶振		48.000MHZ
X2CO40000BD1H-HZ	HSX211S-AU	HELE加高晶振		40.000MHZ
X2BO32000BC1H-HZ	HSX221SA	HELE加高晶振		32.000MHZ
X2CO27120FC1H-HX	HSX211S-AU	HELE加高晶振		27.120MHZ
X2BO27000FC1H-HX	HSX221SA	HELE加高晶振		27.000MHZ
