CO43系列智能穿戴晶振,拉隆7050时钟振荡器,CO4305-30.000MHZ-T
频率：30MHZ
尺寸：7.0×5.0mm
CO43系列智能穿戴晶振,拉隆7050时钟振荡器,CO4305-30.000MHZ-T，尺寸7.0×5.0mm，频率30MHZ，电压3.3V，频率稳定性±50ppm，欧美进口晶振，Raltron有源晶振，四脚有源晶振，7050mm有源晶振，石英振荡子，有源贴片晶振，石英有源晶振，石英晶体振荡器，智能穿戴有源晶振，仪器设备有源晶振，娱乐设备有源晶振，便携式设备有源晶振，通信设备有源晶振，物联网有源晶振，移动电话有源晶振，影音系统有源晶振，低抖动有源晶振，低耗能有源晶振，低电压有源晶振，低相位有源晶振，低相噪有源晶振，具有良好的可靠性能。
有源贴片晶振产品常常应用于娱乐设备，便携式设备，通信设备，物联网，移动电话，影音系统等应用场景.CO43系列智能穿戴晶振,拉隆7050时钟振荡器,CO4305-30.000MHZ-T.
订购热线：0755-27838351
CO43系列智能穿戴晶振,拉隆7050时钟振荡器,CO4305-30.000MHZ-T，尺寸7.0×5.0mm，频率30MHZ，电压3.3V，频率稳定性±50ppm，欧美进口晶振，Raltron有源晶振，四脚有源晶振，7050mm有源晶振，石英振荡子，有源贴片晶振，石英有源晶振，石英晶体振荡器，智能穿戴有源晶振，仪器设备有源晶振，娱乐设备有源晶振，便携式设备有源晶振，通信设备有源晶振，物联网有源晶振，移动电话有源晶振，影音系统有源晶振，低抖动有源晶振，低耗能有源晶振，低电压有源晶振，低相位有源晶振，低相噪有源晶振，具有良好的可靠性能。
有源贴片晶振产品常常应用于娱乐设备，便携式设备，通信设备，物联网，移动电话，影音系统等应用场景.CO43系列智能穿戴晶振,拉隆7050时钟振荡器,CO4305-30.000MHZ-T.

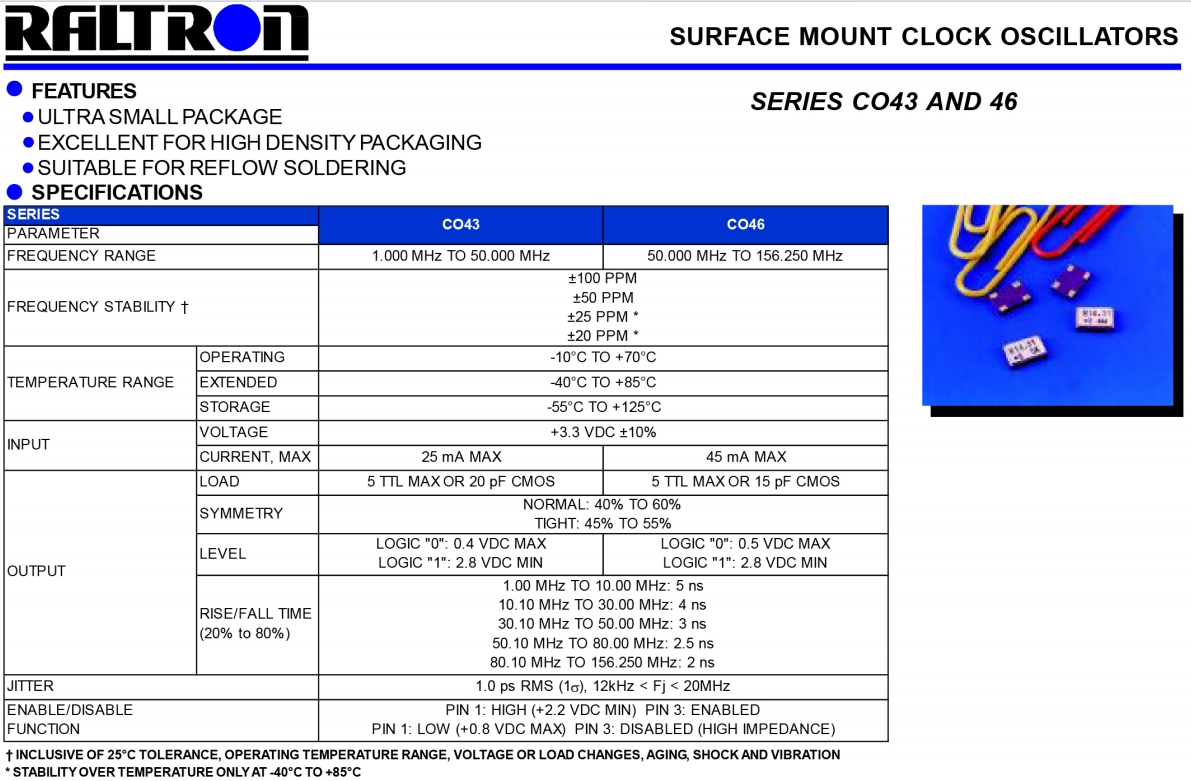

CO43系列智能穿戴晶振,拉隆7050时钟振荡器,CO4305-30.000MHZ-T 参数表
|
型号 |
CO43 (Osc) |
|
|
输出频率范围 |
1.000MHZ~50.000MHZ |
|
|
标准频率 |
30MHZ |
|
|
电源电压范围 |
+3.3V |
|
|
电源电压(Vcc) |
+1.8V/+2.6V/+2.8V/+3.0V/+3.3V |
|
|
消耗电流 |
+25mA max.(f≦26MHz)/+2.0mA max.(26＜f≦52MHz) |
|
|
待机时电流 |
- |
|
|
输出电压 |
0.8Vp-p min.(f≦52MHz)/DC-coupled) |
|
|
输出负载 |
10kΩ//10pF |
|
|
频率稳定度 |
常温偏差 |
±1.5×10-6 max.(After 2 reflows) |
|
温度特性 |
±0.5×10-6,±2.5×10-6 max./-30~+85℃ |
|
|
电源电压特性 |
±0.2×10-6 max.(VCC ±5%) |
|
|
负载变化特性 |
±0.2×10-6 max.(10kΩ//10pF±10%) |
|
|
长期变化 |
±1.0×10-6 max./year |
|
|
频率控制 |
控制灵敏度 |
- |
|
频率控制极性 |
- |
|
|
启动时间 |
2.0ms max. |
|

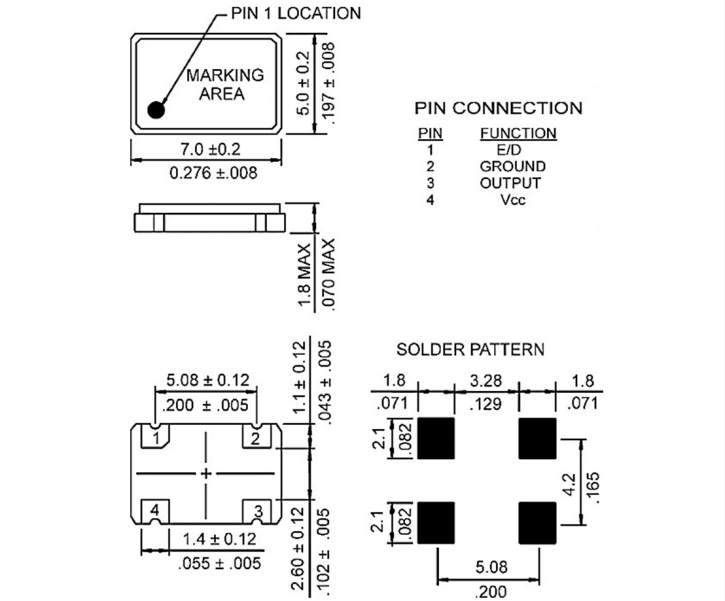

CO43系列智能穿戴晶振,拉隆7050时钟振荡器,CO4305-30.000MHZ-T 尺寸图
CO43系列智能穿戴晶振,拉隆7050时钟振荡器,CO4305-30.000MHZ-T
振荡器产品特性：
尺寸5 x 7x1.8mm
电压3.3V
频率稳定性±50ppm
| 元器件详情 | 包装 | Oscillator Type | Operating Frequency | Frequency Stability | Supply Voltage | Operating Temp Range |
| 卷盘 | 28.322MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO4305-28.322-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 28.322 MHz 5 x 7 x 1.8 mm 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 3.6864MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-3.6864-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4305 系列 3.6864 MHz 50 ppm 3.3 V -40 至 85°C 工业 表面贴装 振荡器 | ||||||
| 盒装 | 30MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-30.000-EXT-T | ||||||
| Raltron | ||||||
| CO43 Series 30 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 30MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-30.000MHZ-T | ||||||
| Raltron | ||||||
| CO43 系列 30 MHz 5 x 7 x 1.8 mm 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 32MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO4305-32.000-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 32 MHz 7 x 5 mm 3.3 V ±50 ppm 表面贴装 晶体振荡器 | ||||||
| 卷盘 | 32MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-32.000EXT-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 32 MHz 7 x 5 mm 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 32.768MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-32.768-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 32.768 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 33MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-33.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 33 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 33MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-33.000-EXT-TR-L30 | ||||||
| Raltron | ||||||
| CO43 系列 33 MHz ± 50 ppm 7 x 5 mm 3.3 V 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 33.333MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-33.333-EXT-T | ||||||
| Raltron | ||||||
| CO43 系列 33.333 MHz 7 x 5 mm 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 33.333MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-33.333-EXT-TR | ||||||
| Raltron | ||||||
| CO4 系列 33.333 MHz 3.3 V ±50 ppm -40°C 至 +85°C 表面贴装 CMOS 时钟 振荡器 | ||||||
| 卷盘 | 4.096MHz | ±50ppm | 3.3V | -10°C to +70°C | ||
| CO4305-4.096MHZ-TR | ||||||
| Raltron | ||||||
| CO4305 系列 4.096 MHz 50 ppm 3.3 V -10 至 70°C 表面贴装 振荡器 | ||||||
| 卷盘 | 40MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-40.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 40 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 48MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-48.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 48 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 48MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-48.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 48 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 48MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-48.000-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 48 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 48MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-48.000EXT-T-TR | ||||||
| Raltron | ||||||
| CO43 Series 48 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 50MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-50.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4305 系列 50 MHz 50 ppm 3.3 V -40 至 85°C 工业 表面贴装 振荡器 | ||||||
| 卷盘 | 50MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4305-50.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 50 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 50MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-50.000-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 7 x 5 mm 50 MHz ±50 ppm 3.3 V -10 至 70°C 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 7.68MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305-7.680-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 7.68 MHz 7 x 5 mm 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 40MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4305S-40.000-T-TR | ||||||
| Raltron | ||||||
| CO43 Series 40 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 10.016MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4310-10.016MHZ | ||||||
| Raltron | ||||||
| CO43 系列 10.016 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 20MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4310-20.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 20 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 24.576MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4310-24.576-EXT-TR | ||||||
| Raltron | ||||||
| CO43 Series 24.576 MHz 7 x 5 mm 3.3 V ±100 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 25MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4310-25.000-EXT-TR | ||||||
| Raltron | ||||||
| CO43 系列 3.3 V ±100 ppm -40 至 +85°C 7 x 5 mm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 25MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4310-25.000-TR | ||||||
| Raltron | ||||||
| CO43 系列 25 MHz ± 100 ppm 7 x 5 mm 3.3 V 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 29.4912MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4310-29.4912-TR | ||||||
| Raltron | ||||||
| CO4 Series 29.4912 MHz 3.3 V ±100 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 32MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4310-32.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 32 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 40MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4310-40.000MHZ | ||||||
| Raltron | ||||||
| CO4 Series 40 MHz 3.3 V ±100 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 48MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4310-48.000-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 48 MHz 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 5MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4310-5.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 5 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 5MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4310-5.000-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 7 x 5 mm 5 MHz ±50 ppm -10 至 70°C 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 50MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4310-50.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 50 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 50MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4310-50.000-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 50 MHz 7 x 5 mm 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 剪切卷带 | 6MHz | ±100ppm | 3.3V | -10°C to +70°C | ||
| CO4310-6.000-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 6 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 8MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4310-8.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 8 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 袋装 | 16.384MHz | ±100ppm | 3V to 3.6V | -10°C to +70°C | ||
| CO4310S-16.384-TR | ||||||
| Raltron | ||||||
| CO43 Series 16.384 MHz 7 x 5 mm 3.6 V ±100 ppm SMT CMOS/TTL Clock Oscillator | ||||||
| 卷盘 | 50MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4310S-50.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 50 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 100MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO46025S-100.000-TR | ||||||
| Raltron | ||||||
| CO46 Series 100 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 66.67MHz | ±25ppm | 3.3V | -40°C to +85°C | ||
| CO46025S-66.670-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 66.67 MHz 3.3 V ±25 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 散装 | 100MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4605-100.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO46 系列 100 MHz 7 x 5 mm 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 125MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4605-125.000-EXT-TR | ||||||
| Raltron | ||||||
| CO46 系列 125 MHz 7 x 5 mm 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 60MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4605-60.000M-EXT-TR | ||||||
| Raltron | ||||||
| CO46 Series 60 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 62.5MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4605-62.500-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 62.5 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 66MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4605-66.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO46 系列 66 MHz ±50 ppm 3.3 V -40 至 +85°C 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 66MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4605-66.000-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 66 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 80MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4605-80.000-EXT-TR | ||||||
| Raltron | ||||||
| CO46 系列 80 MHz ± 50 ppm 7 x 5 mm 3.3 V 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 66.6MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4605S-66.600-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 66.6 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 剪切卷带 | 133MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4610-133.33-T-TR | ||||||
| Raltron | ||||||
| CO46 系列 133.33 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 剪切卷带 | 60MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4610-60.000-T-TR | ||||||
| Raltron | ||||||
| CO46 系列 60 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 带状包装 | 64MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4610-64.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 64 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 66MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4610-66.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 66 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 剪切卷带 | 66.208MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4610-66.208-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 66.208 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 剪切卷带 | 66.66MHz | ±100ppm | 3.3V | -10°C to +70°C | ||
| CO4610-66.660-T-TR | ||||||
| Raltron | ||||||
| CO46 系列 66.66 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 80MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4610-80.000-TR | ||||||
| Raltron | ||||||
| CO46 系列 80 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 60MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4610S-60.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 60 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 64MHz | ±50ppm | 5V | -40°C to +85°C | ||
| CO4705-64.000-EXT-TR | ||||||
| Raltron | ||||||
| CO47 Series 64 MHz 7 x 5 mm 5 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 100MHz | ±100ppm | 5V | -20°C to +70°C | ||
| CO4710-100.000-TR | ||||||
| Raltron | ||||||
| CO4 Series 100 MHz 5 V ±100 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 60MHz | ±100ppm | 5V | -10°C to +70°C | ||
| CO4710-60.000-TR | ||||||
| Raltron | ||||||
| CO47 Series 60 MHz 7 x 5 mm 5 V ±100 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 14.3182MHz | ±25ppm | 5V | -10°C to +70°C | ||
| CO48025-14.31818-TR | ||||||
| Raltron | ||||||
| CO48 系列 14.31818 MHz 7 x 5 mm ±25 ppm 表面贴装 时钟振荡器 |
深圳市康华尔电子有限公司
- QQ联系
- 632862232
- 服务热线
- 138-2330-0879
- 电话
- 86-0755-27838351
- 邮 箱
- konuaer@163.com
- 传 真
- +86-0755-27883106
- 公司地址
- 广东深圳市宝安宝安大道东95号浙商银行大厦1905
采购：CO43系列智能穿戴晶振,拉隆7050时钟振荡器,CO4305-30.000MHZ-T
- *联系人：
- *手机：
- 公司名称：
- 邮箱：
- *采购意向：
-
*验证码：
跟此产品相关的产品 / Related Products
- 434-20.0M-3EN-T-TS,Oscilent低抖动晶振,434系列振荡器,20MHZ,5032mm
434-20.0M-3EN-T-TS,Oscilent低抖动晶振,434系列振荡器,20MHZ,5032mm,奥斯康利有源晶振,SMD振荡器,四脚有源晶振,石英晶体振荡器,5032mm贴片晶振,OSC有源振荡器,434-20.0M-3EN-T-TS晶振,尺寸5.0x3.2mm,频率20MHZ,电压3.3V,工作温度-40~+85℃,低电压晶振,低耗能晶振,低抖动晶振,娱乐设备晶振,智能手机晶振,通讯模块晶振.
- 433系列晶体,433-52.0M-3EN-T-TS,奥斯康利时钟振荡器,7050mm
433系列晶体,433-52.0M-3EN-T-TS,奥斯康利时钟振荡器,7050mm,欧美进口晶振,有源晶体振荡器,Oscilentd小尺寸晶振,石英振荡子,有源贴片晶振,SMD振荡器,7050mm贴片晶振,时钟振荡器,OSC晶振,尺寸3.2x2.5mm,频率52MHZ,低抖动晶振,低功耗晶振,低耗能晶振,高质量晶振,空中雷达晶振,以太网晶振,便携式设备晶振,娱乐设备晶振.
- MIH302548AH-48.000MHZ-T,Mmdcomp有源振荡器,7050mm,48MHZ
- MIH302548AH-48.000MHZ-T,Mmdcomp有源振荡器,7050mm,48MHZ，尺寸7.0×5.0mm，频率48MHZ，麦迪康XO振荡器，欧美进口有源晶振，麦迪康SMD振荡器，四脚有源晶振，时钟振荡器，石英振荡子，SMD有源振荡器，石英有源晶振，7050mm有源晶振，48MHZ有源晶振，低电压有源晶振，低功耗有源晶振，低耗能 有源晶振，低相位有源晶振，低相噪有源晶振，GNSS授时模块有源晶振，千兆以太网有源晶振，网络设备有源晶振，室外基站有源晶振，测量设备有源晶振，卫星通信有源晶振，航空航天有源晶振，具有低电压低相位的特点，有源贴片晶振产品可满足各大应用的需求，适合用于GNSS授时模块，千兆以太网，网络设备，室外基站，测量设备，卫星通信，航空航天等应用。MIH302548AH-48.000MHZ-T,Mmdcomp有源振荡器,7050mm,48MHZ.
产品中心
Product Center
京瓷晶振
晶振厂家
日本晶振
台产晶振
32.768K
贴片晶振
有源晶振
欧美晶振
- ECS晶振
- AEL晶振
- MMDCOMP晶振
- C-TECH晶振
- 维管晶振
- AEK晶振
- KVG晶振
- PDI晶振
- AbraconCrystal
- Statek晶振
- ILSI晶振
- WI2WI晶振
- ITTI晶振
- Jauch晶振
- Pletronics晶振
- GEYER晶振
- Transko晶振
- 高利奇晶振
- IDT晶振
- Frequency晶振
- SUNTSU晶振
- Oscilent晶振
- 康纳温菲尔德晶振
- SiTimeCrystal
- FOX晶振
- QuarzteChnik晶振
- Rubyquartz晶振
- 瑞康晶振
- 格林雷晶振
- Euroquartz晶振
- QuartzCom晶振
- LiHom晶振
- 微晶晶振
- 拉隆晶振
- Crystek晶振
- QANTEK晶振
- MTI-Milliren晶振
- CTS晶振
- 日蚀晶振
- Cardinal晶振
- MtronPTI晶振
- ACT晶振
- Skyworks晶振
- Renesas瑞萨晶振
应用领域
英国晶振 / EnglandCrystal
德国晶振 / GermanyCrystal
美国晶振 / AmericaCrystal
俄国晶振 / RussiaCrystal
瑞士晶振 / SwitzerlandCrystal
新西兰晶振 / NZCrystal
韩国晶振 / KoreaCrystal
丹麦晶振 / DenmarkCrystal
加拿大晶振 / CanadaCrystal
法国晶振 / FranceCrystal
进口晶振系列
荷兰 / NetherlandsCrystal
香港 / HongKongCrystal
联系康华尔Contact us
咨询热线：0755-27838351
电话：0755-27838351
手机：138-2330-0879
QQ：632862232
地址：广东深圳市宝安宝安大道东95号浙商银行大厦1905
微信公众号
