FKQ系列3.3V晶体时钟振荡器,FK1220016Z,晶体振荡器,ECERA低功耗晶振

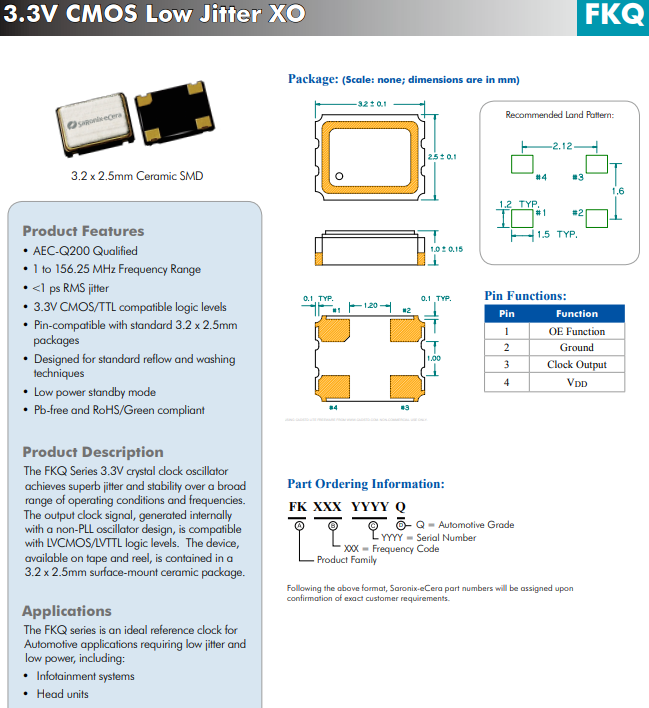

亚陶晶振FKQ系列3.3V晶体时钟振荡器可在广泛的工作条件和频率范围内实现出色的抖动和稳定性。小体积晶振尺寸3225mm、汽车级CMOS晶体振荡器，使用非PLL振荡器设计在内部生成的输出时钟信号与LVCMOS/LVTTL逻辑电平兼容。该器件采用卷带包装，采用3.2x2.5mm表面贴装陶瓷封装。FKQ系列是需要低抖动和低功耗的汽车应用的理想参考时钟.
产品特点：
符合AEC-Q200标准
频率范围：1至156.25MHz贴片晶振
<1 ps RMS 抖动
3.3V CMOS/TTL兼容逻辑电平
与标准3.2x2.5mm封装引脚兼容
专为标准回流和清洗技术而设计
低功耗待机模式
无铅且符合RoHS/Green标准
应用：信息娱乐系统，主机
FKQ系列3.3V晶体时钟振荡器,FK1220016Z,晶体振荡器,ECERA低功耗晶振
| FK1430003 | Diodes Incorporated | SaRonix-eCera™ FK | 14.318MHz | ±25ppm | -40°C ~ 85°C |
| FK1920010 | Diodes Incorporated | SaRonix-eCera™ FK | 19.2MHz | ±20ppm | -20°C ~ 70°C |
| FK1920012 | Diodes Incorporated | SaRonix-eCera™ FK | 19.2MHz | ±25ppm | -40°C ~ 85°C |
| FK1940003 | Diodes Incorporated | SaRonix-eCera™ FK | 19.44MHz | ±20ppm | -20°C ~ 70°C |
| FK2000024 | Diodes Incorporated | SaRonix-eCera™ FK | 20MHz | ±20ppm | -20°C ~ 70°C |
| FK2000026 | Diodes Incorporated | SaRonix-eCera™ FK | 20MHz | ±25ppm | -40°C ~ 85°C |
| FK2000028 | Diodes Incorporated | SaRonix-eCera™ FK | 20MHz | ±20ppm | -20°C ~ 70°C |
| FK2450012 | Diodes Incorporated | SaRonix-eCera™ FK | 24.576MHz | ±20ppm | -20°C ~ 70°C |
| FK2500020 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±20ppm | -20°C ~ 70°C |
| FK2500027 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±20ppm | -20°C ~ 70°C |
| FK2600018 | Diodes Incorporated | SaRonix-eCera™ FK | 26MHz | ±20ppm | -20°C ~ 70°C |
| FK2600029 | Diodes Incorporated | SaRonix-eCera™ FK | 26MHz | ±25ppm | -40°C ~ 85°C |
| FK2600031 | Diodes Incorporated | SaRonix-eCera™ FK | 26MHz | ±20ppm | -20°C ~ 70°C |
| FK3840012 | Diodes Incorporated | SaRonix-eCera™ FK | 38.4MHz | ±20ppm | -20°C ~ 70°C |
| FK4000036 | Diodes Incorporated | SaRonix-eCera™ FK | 40MHz | ±20ppm | -20°C ~ 70°C |
| FK4000041 | Diodes Incorporated | SaRonix-eCera™ FK | 40MHz | ±20ppm | -20°C ~ 70°C |
| FK5400007 | Diodes Incorporated | SaRonix-eCera™ FK | 54MHz | ±25ppm | -40°C ~ 85°C |
| FK6600008 | Diodes Incorporated | SaRonix-eCera™ FK | 66MHz | ±20ppm | -20°C ~ 70°C |
| FK7420003 | Diodes Incorporated | SaRonix-eCera™ FK | 74.25MHz | ±20ppm | -20°C ~ 70°C |
| FK7500008 | Diodes Incorporated | SaRonix-eCera™ FK | 75MHz | ±20ppm | -20°C ~ 70°C |
| FK9830002 | Diodes Incorporated | SaRonix-eCera™ FK | 98.304MHz | ±50ppm | -20°C ~ 70°C |
| FK9830003 | Diodes Incorporated | SaRonix-eCera™ FK | 98.304MHz | ±25ppm | -20°C ~ 70°C |
| FKA000005 | Diodes Incorporated | SaRonix-eCera™ FK | 100MHz | ±25ppm | -20°C ~ 70°C |
| FKA000006 | Diodes Incorporated | SaRonix-eCera™ FK | 100MHz | ±50ppm | -40°C ~ 85°C |
| FKA000007 | Diodes Incorporated | SaRonix-eCera™ FK | 100MHz | ±50ppm | -20°C ~ 70°C |
| FKA000008 | Diodes Incorporated | SaRonix-eCera™ FK | 100MHz | ±50ppm | -20°C ~ 70°C |
| FKA620004 | Diodes Incorporated | SaRonix-eCera™ FK | 106.25MHz | ±50ppm | -20°C ~ 70°C |
| FKA620005 | Diodes Incorporated | SaRonix-eCera™ FK | 106.25MHz | ±25ppm | -20°C ~ 70°C |
| FKA620006 | Diodes Incorporated | SaRonix-eCera™ FK | 106.25MHz | ±50ppm | -40°C ~ 85°C |
| FKB420001 | Diodes Incorporated | SaRonix-eCera™ FK | 114.285MHz | ±50ppm | -40°C ~ 85°C |
| FKC500001 | Diodes Incorporated | SaRonix-eCera™ FK | 125MHz | ±50ppm | -40°C ~ 85°C |
| FKC500004 | Diodes Incorporated | SaRonix-eCera™ FK | 125MHz | ±50ppm | -20°C ~ 70°C |
| FKC500005 | Diodes Incorporated | SaRonix-eCera™ FK | 125MHz | ±50ppm | -40°C ~ 85°C |
| FKC500006 | Diodes Incorporated | SaRonix-eCera™ FK | 125MHz | ±50ppm | -20°C ~ 70°C |
| FKC500007 | Diodes Incorporated | SaRonix-eCera™ FK | 125MHz | ±50ppm | -20°C ~ 70°C |
| FKD300002 | Diodes Incorporated | SaRonix-eCera™ FK | 133MHz | ±50ppm | -40°C ~ 85°C |
| FKD330001 | Diodes Incorporated | SaRonix-eCera™ FK | 133.33MHz | ±50ppm | -20°C ~ 70°C |
| FN0150023 | Diodes Incorporated | SaRonix-eCera™ FN | 1.544MHz | ±25ppm | -40°C ~ 85°C |
| FN0200047 | Diodes Incorporated | SaRonix-eCera™ FN | 2.048MHz | ±25ppm | -40°C ~ 85°C |
| FN1220027 | Diodes Incorporated | SaRonix-eCera™ FN | 12.288MHz | ±25ppm | -40°C ~ 85°C |
| FN1430053 | Diodes Incorporated | SaRonix-eCera™ FN | 14.318MHz | ±25ppm | -40°C ~ 85°C |
| FN2000115 | Diodes Incorporated | SaRonix-eCera™ FN | 20MHz | ±25ppm | -40°C ~ 85°C |
| FN2500156 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±20ppm | -20°C ~ 70°C |
| FN2500171 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±25ppm | -40°C ~ 85°C |
| FN2500175 | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±25ppm | -40°C ~ 85°C |
| FN2500177 | Diodes Incorporated | SaRonix-eCera™ FN | 25.002MHz | ±25ppm | -40°C ~ 85°C |
| FN2700077 | Diodes Incorporated | SaRonix-eCera™ FN | 27MHz | ±20ppm | -20°C ~ 70°C |
| FN3000041 | Diodes Incorporated | SaRonix-eCera™ FN | 30MHz | ±25ppm | -40°C ~ 85°C |
| FN3200033 | Diodes Incorporated | SaRonix-eCera™ FN | 32MHz | ±25ppm | -40°C ~ 85°C |
| FN3270028 | Diodes Incorporated | SaRonix-eCera™ FN | 32.768MHz | ±25ppm | -40°C ~ 85°C |

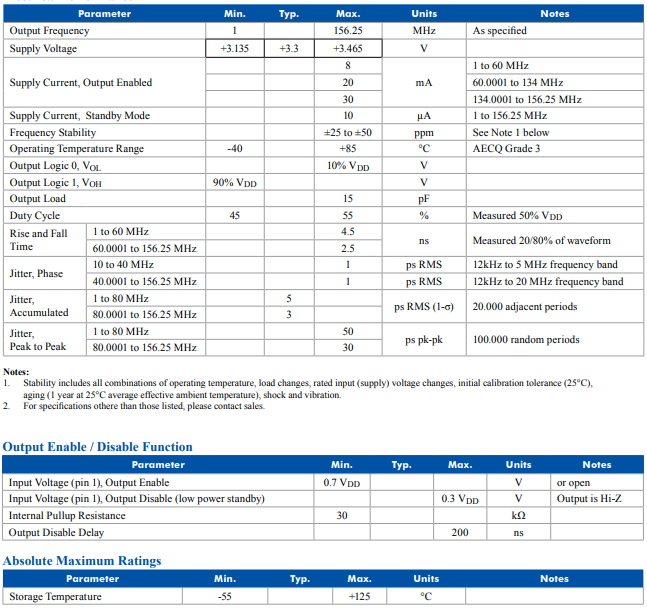

Product Parameters
| Subfamily | General XO |
|---|---|
| Product Series | FKQ |
| Compliance(Only Automotive supports PPAP) | Automotive |
| Freq Range (MHz) | 1 to 162 |
| Jitter RMS (ps) | <1 |
| Stability (PPM) | 20 to 50 |
| Package Size (mm) | 3.2 x 2.5 |
| PkgType | Ceramic Seam |
| Output Logic | CMOS |
| Supply Voltage (V) | 3.3 |
| Pads | 4 |
FKQ系列3.3V晶体时钟振荡器,FK1220016Z,晶体振荡器,ECERA低功耗晶振
产品参数：
类别 XO将军产品系列 FKQ
合规性（仅汽车支持PPAP）汽车电子晶振
频率范围 (MHz) 1至162
抖动均方根 (ps) <1
稳定性 (PPM) 20到50
包装尺寸 3.2x2.5mm
包装类型 陶瓷缝
输出逻辑 CMOS
电源电压 (V) 3.3
垫 4脚
