UF253/UF23系列超低相位抖动,UF2532DC0156.250000,LVDS晶体振荡器,ECERA晶振
百利通亚陶晶振UF253/UF23 XO系列是世界上最小的晶体振荡器系列，经过优化以节省电路板空间。小体积晶振尺寸2.5x2.0mm，超低抖动，该系列由具有超低抖动性能的高性能LVDS晶体振荡器组成，可满足严格的芯片组要求。它支持多种选择，包括更宽的频率范围、2.5V/3.3V电压和各种稳定性。它旨在满足通信系统和其他高性能设备的时钟源规范。

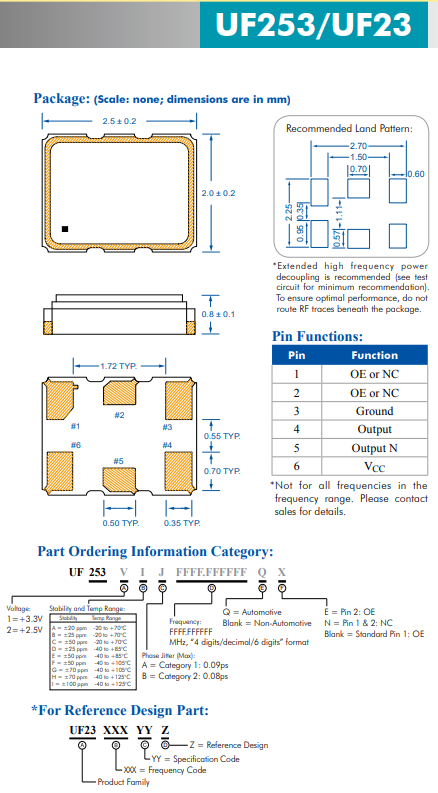

特征：
超低相位抖动晶振
0.06ps典型值。0.08psRMS最大值（12kHz至20MHz）
扩展温度范围高达125℃
完全无铅且完全符合RoHS标准
不含卤素和锑。“绿色”设备
应用程序：
网络系统
光模块
服务器和存储系统
专业视频设备
测试与测量
FPGA/ASIC 时钟生成
112G 串行应用
UF253/UF23系列超低相位抖动,UF2532DC0156.250000,LVDS晶体振荡器,ECERA晶振
PD10GE159
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
159.375MHz
±50ppm
-20°C ~ 70°C
PD10GE159
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
159.375MHz
±50ppm
-20°C ~ 70°C
PDGPON155
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
155.52MHz
±50ppm
-40°C ~ 85°C
PDGPON155
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
155.52MHz
±50ppm
-40°C ~ 85°C
PDGPON155
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
155.52MHz
±50ppm
-40°C ~ 85°C
JX7011D0104.000000
Diodes Incorporated
SaRonix-eCera™ JX
104MHz
±25ppm
-40°C ~ 85°C
JX7011D0104.000000
Diodes Incorporated
SaRonix-eCera™ JX
104MHz
±25ppm
-40°C ~ 85°C
JX7011D0104.000000
Diodes Incorporated
SaRonix-eCera™ JX
104MHz
±25ppm
-40°C ~ 85°C
JT255BI0032.000000
Diodes Incorporated
SaRonix-eCera™ JT
32MHz
±2ppm
-30°C ~ 85°C
JT255BI0032.000000
Diodes Incorporated
SaRonix-eCera™ JT
32MHz
±2ppm
-30°C ~ 85°C
JT255BI0032.000000
Diodes Incorporated
SaRonix-eCera™ JT
32MHz
±2ppm
-30°C ~ 85°C
LDA000004
Diodes Incorporated
SaRonix-eCera™ LD
100MHz
±50ppm
-40°C ~ 85°C
FN2500246
Diodes Incorporated
SaRonix-eCera™ FN
25MHz
±50ppm
-20°C ~ 70°C
FN2500246
Diodes Incorporated
SaRonix-eCera™ FN
25MHz
±50ppm
-20°C ~ 70°C
FN2500246
Diodes Incorporated
SaRonix-eCera™ FN
25MHz
±50ppm
-20°C ~ 70°C
FN1000064
Diodes Incorporated
SaRonix-eCera™ FN
10MHz
±50ppm
-20°C ~ 70°C
FN1000064
Diodes Incorporated
SaRonix-eCera™ FN
10MHz
±50ppm
-20°C ~ 70°C
FN1000064
Diodes Incorporated
SaRonix-eCera™ FN
10MHz
±50ppm
-20°C ~ 70°C
UJ2600001
Diodes Incorporated
SaRonix-eCera™ UJ
26MHz
±20ppm
-30°C ~ 85°C
UJ2600001
Diodes Incorporated
SaRonix-eCera™ UJ
26MHz
±20ppm
-30°C ~ 85°C
UJ2600001
Diodes Incorporated
SaRonix-eCera™ UJ
26MHz
±20ppm
-30°C ~ 85°C
FN7500043
Diodes Incorporated
SaRonix-eCera™ FN
75MHz
±25ppm
-20°C ~ 70°C
FN7500043
Diodes Incorporated
SaRonix-eCera™ FN
75MHz
±25ppm
-20°C ~ 70°C
FN7500043
Diodes Incorporated
SaRonix-eCera™ FN
75MHz
±25ppm
-20°C ~ 70°C
FNSTB1027
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
27MHz
±30ppm
-20°C ~ 70°C
FNSTB1027
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
27MHz
±30ppm
-20°C ~ 70°C
FNSTB1027
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
27MHz
±30ppm
-20°C ~ 70°C
FNSURV054
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
54MHz
±30ppm
-20°C ~ 70°C
FNSURV054
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
54MHz
±30ppm
-20°C ~ 70°C
FNSURV054
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
54MHz
±30ppm
-20°C ~ 70°C
FDSAS6062
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
62.5MHz
±50ppm
-20°C ~ 70°C
FDSAS6062
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
62.5MHz
±50ppm
-20°C ~ 70°C
FDSAS6062
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
62.5MHz
±50ppm
-20°C ~ 70°C
FN5000121
Diodes Incorporated
SaRonix-eCera™ FN
50MHz
±50ppm
-20°C ~ 70°C
FN5000121
Diodes Incorporated
SaRonix-eCera™ FN
50MHz
±50ppm
-20°C ~ 70°C
FN5000121
Diodes Incorporated
SaRonix-eCera™ FN
50MHz
±50ppm
-20°C ~ 70°C
FD2450017
Diodes Incorporated
SaRonix-eCera™ FD
24.576MHz
±50ppm
-40°C ~ 85°C
FD2450017
Diodes Incorporated
SaRonix-eCera™ FD
24.576MHz
±50ppm
-40°C ~ 85°C
FD2450017
Diodes Incorporated
SaRonix-eCera™ FD
24.576MHz
±50ppm
-40°C ~ 85°C
FN2500140
Diodes Incorporated
SaRonix-eCera™ FN
25.000625MHz
±25ppm
-40°C ~ 85°C
FN2500140
Diodes Incorporated
SaRonix-eCera™ FN
25.000625MHz
±25ppm
-40°C ~ 85°C
FN2500140
Diodes Incorporated
SaRonix-eCera™ FN
25.000625MHz
±25ppm
-40°C ~ 85°C
FN4800068
Diodes Incorporated
SaRonix-eCera™ FN
48MHz
±50ppm
-20°C ~ 70°C
FN4800068
Diodes Incorporated
SaRonix-eCera™ FN
48MHz
±50ppm
-20°C ~ 70°C
FN4800068
Diodes Incorporated
SaRonix-eCera™ FN
48MHz
±50ppm
-20°C ~ 70°C
FN3330078
Diodes Incorporated
SaRonix-eCera™ FN
33.333MHz
±30ppm
-40°C ~ 85°C
FN3330078
Diodes Incorporated
SaRonix-eCera™ FN
33.333MHz
±30ppm
-40°C ~ 85°C
FN3330078
Diodes Incorporated
SaRonix-eCera™ FN
33.333MHz
±30ppm
-40°C ~ 85°C
FN0200045
Diodes Incorporated
SaRonix-eCera™ FN
2.048MHz
±50ppm
-20°C ~ 70°C
FN0200045
Diodes Incorporated
SaRonix-eCera™ FN
2.048MHz
±50ppm
-20°C ~ 70°C

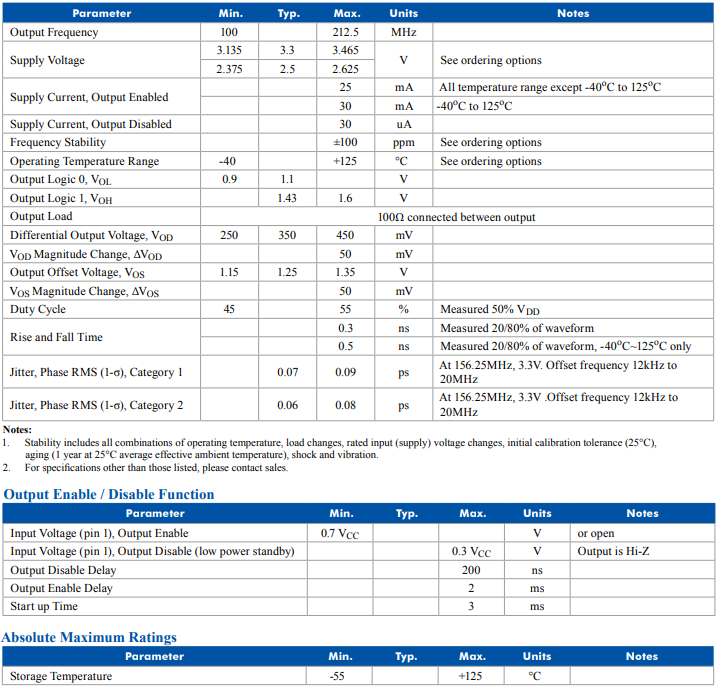

Product Parameters
